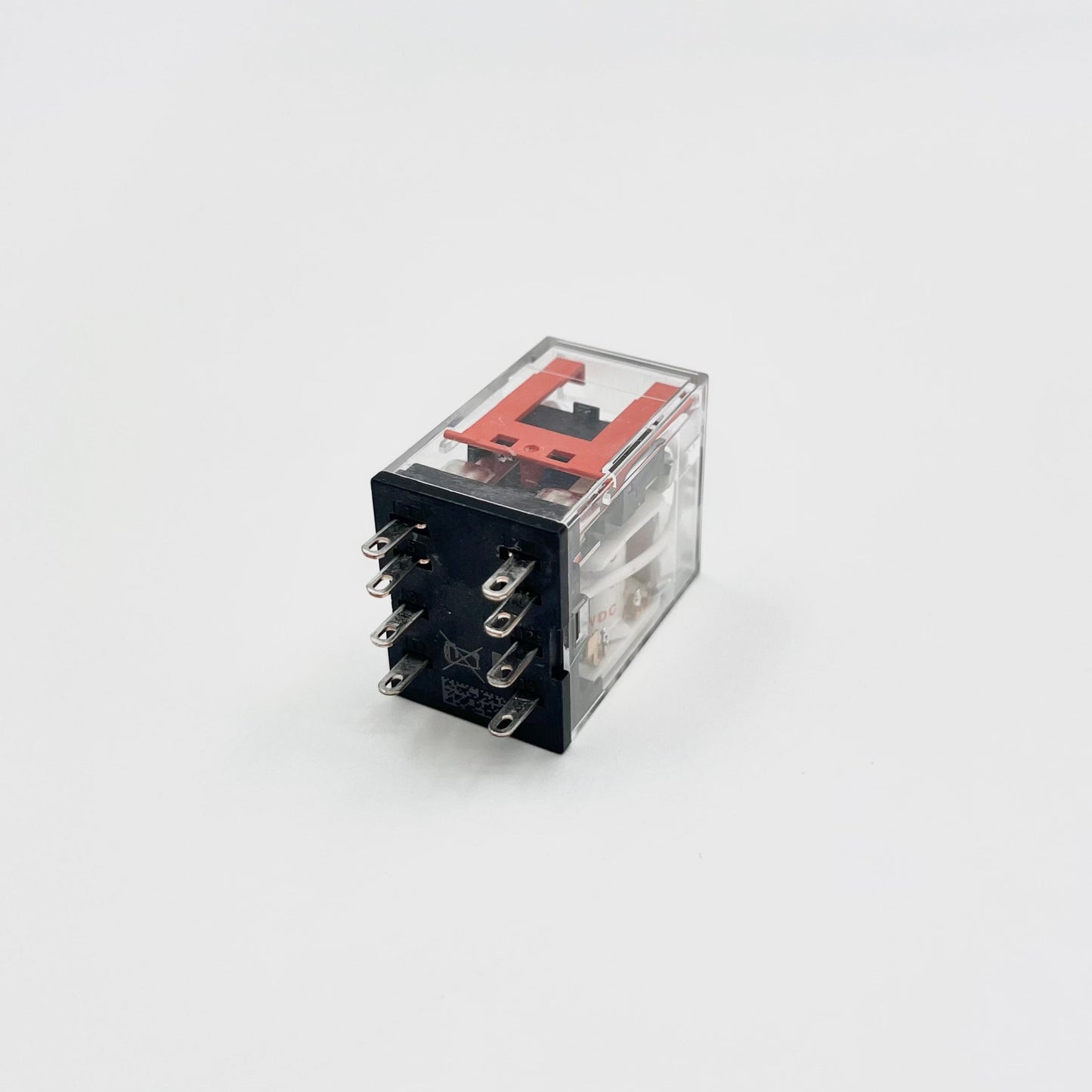

ST Relay MY2N-GS 48V - 8 Pin Plug In Power Relay
ST Relay MY2N-GS 48V - 8 Pin Plug In Power Relay
Price (exc. GST) each
Couldn't load pickup availability

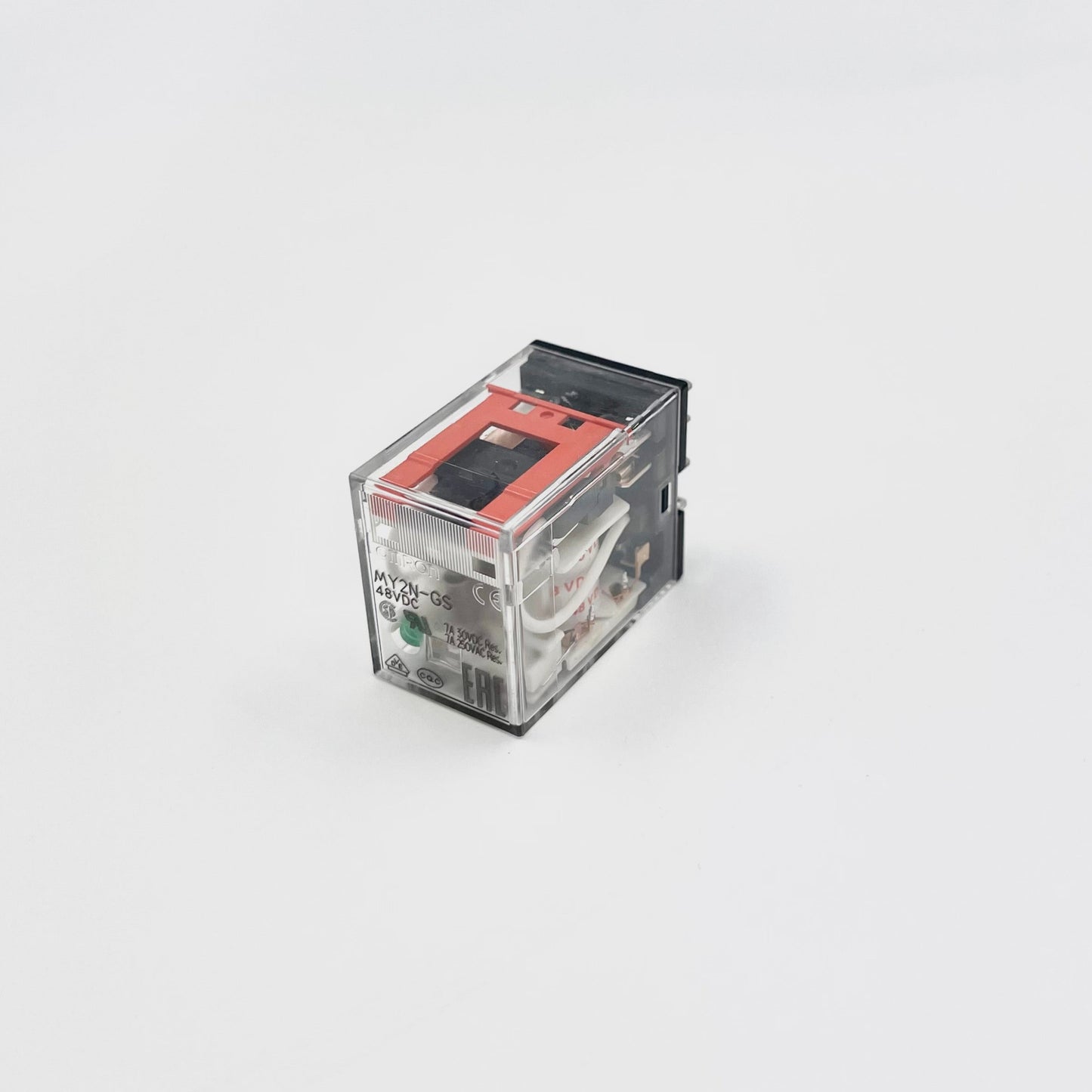

ST Relay MY2N-GS 48V 7A
The MY2N-GS 48 VDC is a compact and highly reliable general-purpose relay designed for industrial and commercial applications. It features a 48V DC coil voltage and a double-pole, double-throw (DPDT) contact configuration, ensuring precise and efficient electrical switching for a variety of load requirements. With a transparent housing for easy visual inspection and a high switching capacity, the MY2N-GS provides stable and long-lasting performance in demanding environments.
Part of the MY series, the MY2N-GS 48 VDC relay is known for its durable construction and secure mounting. It is widely used in control panels, automation systems, and industrial equipment where dependable relay operation is essential. The MY series relays offer a combination of high performance and reliability, making them a trusted choice for applications that require efficient and durable switching control.
| Item | Rated current (mA) |
Coil
resis- tance (Ω) |
Power
consumption (VA, W) |
||
| Rated voltage | 50 Hz | 60 Hz | |||
|
AC
|
12 | 106.5 | 91 | 46 |
Approx. 0.9 to
1.3 (at 60 Hz) |
| 24 | 53.8 | 46 | 180 | ||
| 48 | 25.7 | 21.1 | 788 | ||
| 100/110 | 11.7/12.9 | 10.0/11.0 | 3,750 | ||
| 110/120 | 9.9/10.8 | 8.4/9.2 | 4,430 | ||
| 200/220 | 6.2/6.8 | 5.3/5.8 | 12,950 | ||
| 220/240 | 5.2/6.2 | 4.3/5.0 | 15,920 | ||
|
DC
|
6 | 146 (151) | 41.0 (39.8) |
Approx. 0.9
|
|
| 12 | 72.7 (75) | 165 (160) |
|||
| 24 | 36.3 (37.7) | 662 (636) |
|||
| 48 | 17.6 (18.8) | 2,725 (2,560) |
|||
| 100/110 | 8.7 (9.0)/9.6 (9.9) | 11,440 (11,100) |
|||
| 220 | 3.6 | 60,394 | Approx. 0.8 | ||
| Coil inductance (H) |
Must- operate voltage |
Must- release voltage |
Maxi- mum voltage |
||
| Armature OFF |
Armature ON |
Percentage of rated voltage | |||
| 0.17 | 0.33 |
80%
max. *1 |
30%
min. *2 |
110%
|
|
| 0.69 | 1.3 | ||||
| 3.22 | 5.66 | ||||
| 14.54 | 24.6 | ||||
| 19.2 | 32.1 | ||||
| 54.75 | 94.07 | ||||
| 83.5 | 136.4 | ||||
| 0.17 | 0.33 |
10%
min. *2 |
|||
| 0.73 | 1.37 | ||||
| 3.2 | 5.72 | ||||
| 10.6 | 21 | ||||
| 45.6 | 86.2 | ||||
| 362.3 | 452.9 | ||||
Compatible Part Numbers:
MY2N-GS 48 VDC
MY2N-GS 48V
Omron
Technical Datasheet:
1 in stock
