BF 18 - PF 000050 - Mounting Systems
BF 18 - PF 000050 - Mounting Systems
Regular price
$25.72 NZD
Regular price
Sale price
$25.72 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

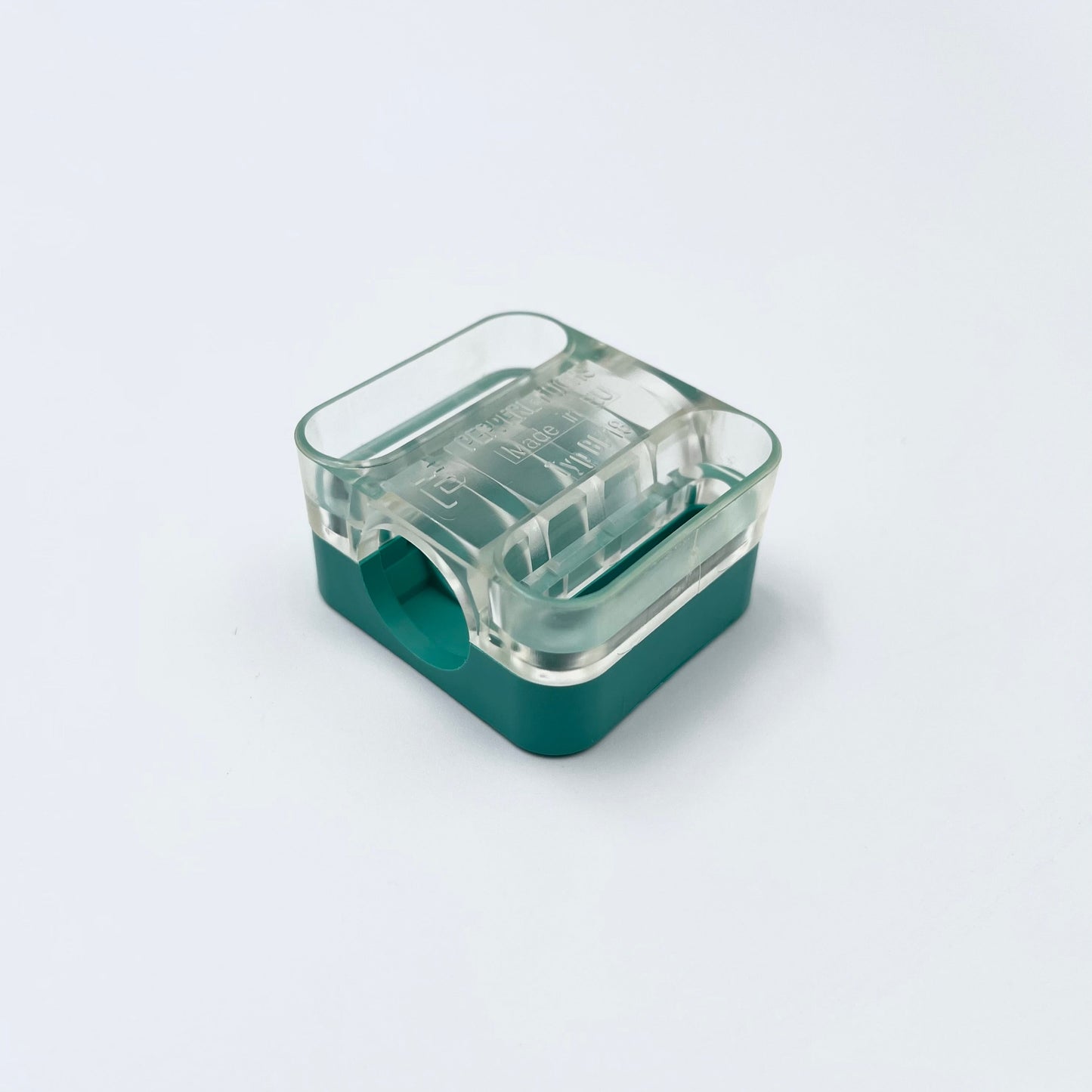

Mounting Flange, BF 18 - PF 000050
- Retainer for all cylindrical sensors with M18 thread.
- Simple installation and exact setting.
- Large sensing range. (max. 20 mm)
Details: BF 18 - PF 000050
Mounting flange, 18mm.
Compatible Part Numbers:
000050
BF 18
Technical Data Sheet:
Datasheet excerpt: Technical data of BF18 - PF 000050
| General specifications | ||
|---|---|---|
| Inside diameter | 18 mm | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 85 °C (-13 ... 185 °F) | |
| Mechanical specifications | ||
| Material | Base: Crastin/PBT (green) Upper section: PA (transparent) |
|
| Tightening torque, fastening screws | max. 1.2 Nm | |
| Dimensions | ||
| Height | 24 mm | |
| Width | 44 mm | |
| Length | 40 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ECLASS 11.0 | 27273701 |
| ECLASS 10.0.1 | 27273701 |
| ECLASS 9.0 | 27273701 |
| ECLASS 8.0 | 27279202 |
| ECLASS 5.1 | 27279202 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31162301 |
