PF 34
9109, 10 - PF 045565 - Measuring Wheel
9109, 10 - PF 045565 - Measuring Wheel
Regular price
$222.49 NZD
Regular price
Sale price
$222.49 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

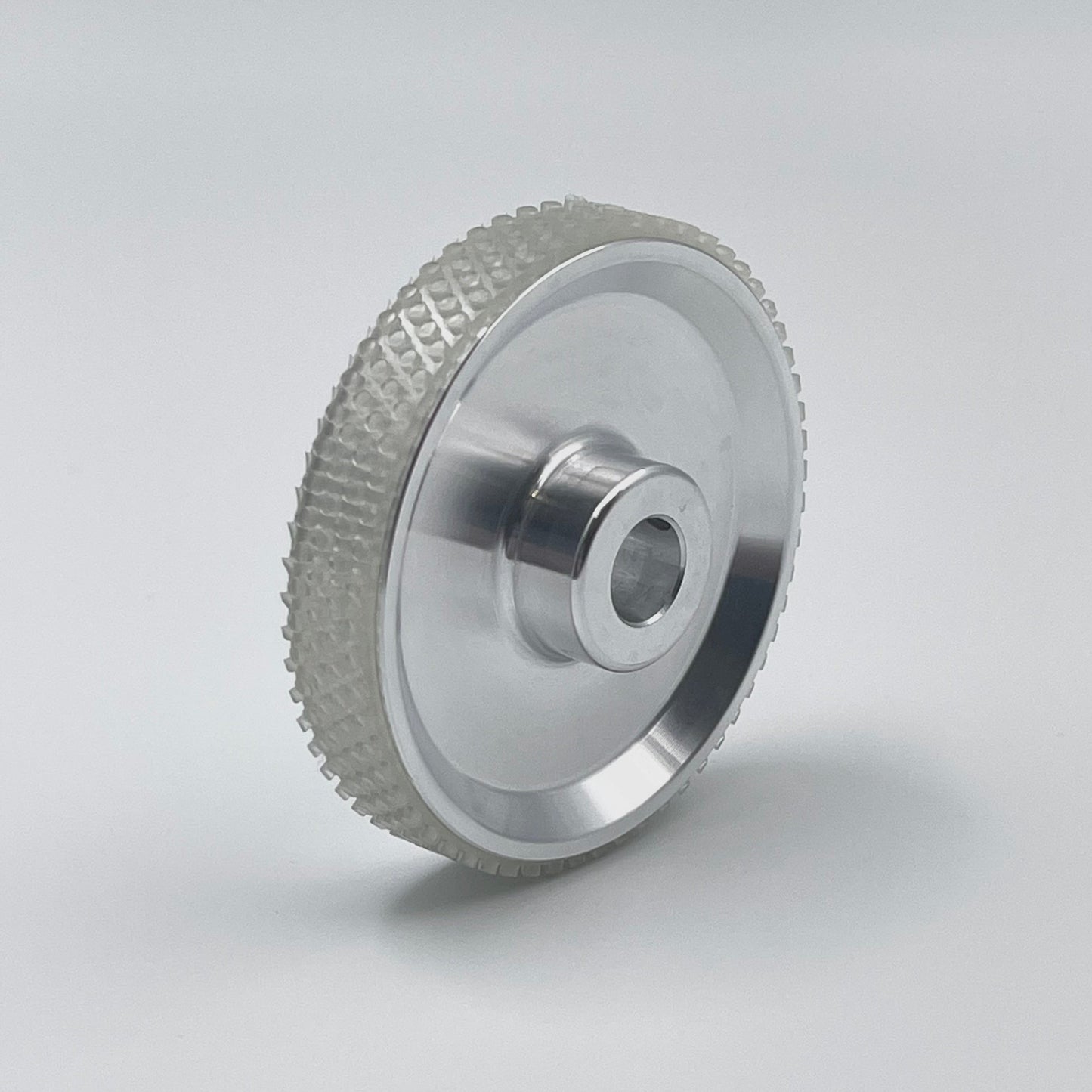

Measuring Wheel, 9109, 10 - PF 045565
- Pimpled rubber coating.
- 200 mm circumference.
Details: 9109, 10 - PF 045565
Measuring wheel for shaft diameter 10 mm.
Compatible Part Numbers:
045565
9109, 10
Technical Data Sheet:
Datasheet excerpt: Technical data of 9109, 10 - PF 045565
|
Mechanical specifications |
||
|
Surface |
pimpled rubber Nitril (NBR)-Blend |
|
|
Diameter |
D = 63.7 mm |
|
|
Circumference |
200 mm |
|
|
Width |
12 mm |
|
|
Shaft diameter |
d = 10 mm |
|
Classifications
|
System |
Classcode |
|
ECLASS 13.0 |
27270592 |
|
ECLASS 12.0 |
27270592 |
|
ECLASS 11.0 |
27270592 |
|
ECLASS 10.0.1 |
27270592 |
|
ECLASS 9.0 |
27270592 |
|
ECLASS 8.0 |
27279103 |
|
ECLASS 5.1 |
27270591 |
|
ETIM 9.0 |
EC003015 |
|
ETIM 8.0 |
EC003015 |
|
ETIM 7.0 |
EC003015 |
|
ETIM 6.0 |
EC003015 |
|
ETIM 5.0 |
EC003015 |
|
UNSPSC 12.1 |
39121527 |
1 in stock
