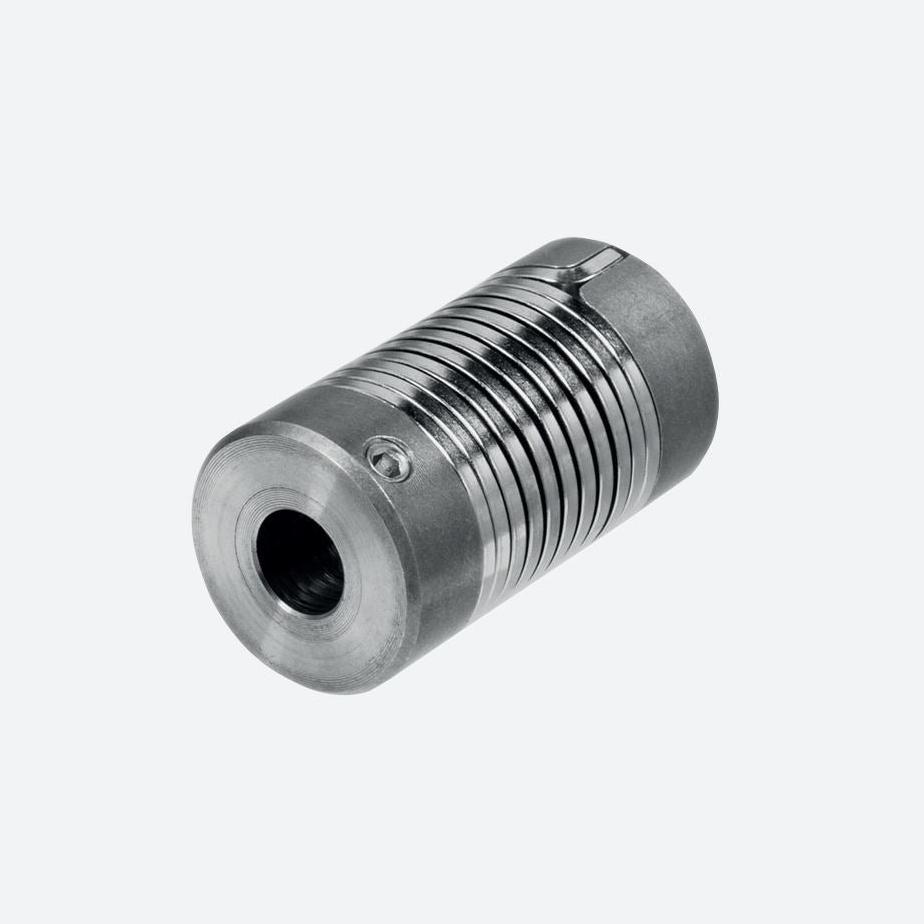

Coupling, 9401 8*8 - PF 70120104-100033
- Universally suitable for backlash-free rotation transmission.
- Highly vibration-isolating.
- Well misalignment compensation.
- Low torsion spring stiffness.
- Small reset forces.
- No movable parts.
- Very rugged construction.
Details: 9401 8*8 - PF 70120104-100033
Spring Coupling.
Compatible Part Numbers:
70120104-100033
ACC-CSP-50262S1-0808
045987
9401 8*8
Technical Data Sheet:
Datasheet excerpt: Technical data of 9401 8*8 - PF 70120104-100033
| Ambient conditions | ||
|---|---|---|
| Operating temperature | -30 ... 120 °C (-22 ... 248 °F) | |
| Mechanical specifications | ||
| Shaft diameter | d1 = 8 mm , d2 = 8 mm | |
| Material | ||
| Spring | spring steel, nickel plated | |
| End piece | Diecast zinc | |
| Mass | 100 g | |
| Rotational speed | max. 3000 min | |
| Max. torque | 1.5 Nm | |
| Tightening torque, fastening screws | 1.2 Nm | |
| Radial offset | max. ± 1.5 mm | |
| Axial offset | max. ± 1 mm | |
| Angle error | max. ± 5 ° | |
| Torsion angle | at torque 0.75 Nm drive shaft view | |
| CW rotation direction | 40 ° | |
| CCW rotation direction | 60 ° | |
| Moment of inertia | 95 kg m2 x 10-7 | |
| Mounting | clamp screws M5 x 6, DIN 916 | |
| Tightening torque of clamping screws | max. 3 Nm | |
