U-G1F / PF 099334 - Mounting Systems
U-G1F / PF 099334 - Mounting Systems
Regular price
$36.04 NZD
Regular price
Sale price
$36.04 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Mounting Systems, U-G1F / PF 099334
Details: U-G1F / PF 099334

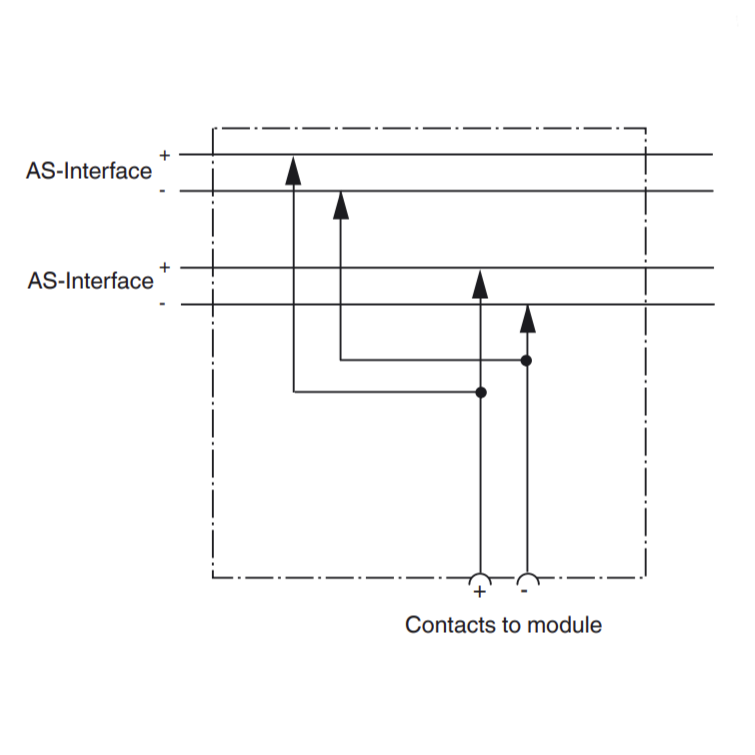

AS-Interface module mounting base for connection to flat cable (AS-Interface)
Compatible Part Numbers:
099334
U-G1F
Technical Data Sheet:
Datasheet excerpt: Technical data of U-G1F / PF 099334
| General specifications | ||
|---|---|---|
| UL File Number | E223772 | |
| Electrical specifications | ||
| Current loading capacity | ≤ 2 A for max. 40 V | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 60 °C (-13 ... 140 °F) | |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 according to EN 60529 (only in connection with module or cover) |
|
| Connection | 2 AS-Interface flat cables | |
| Material | ||
| Housing | PBT | |
| Dimensions | about 80, 45, 20 mm (L, W, H) | |
| Mounting | DIN rail or screw mounting | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27274092 |
| ECLASS 12.0 | 27273792 |
| ECLASS 11.0 | 27273792 |
| ECLASS 10.0.1 | 27273792 |
| ECLASS 9.0 | 27273792 |
| ECLASS 8.0 | 27279212 |
| ECLASS 5.1 | 27279212 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31162301 |
