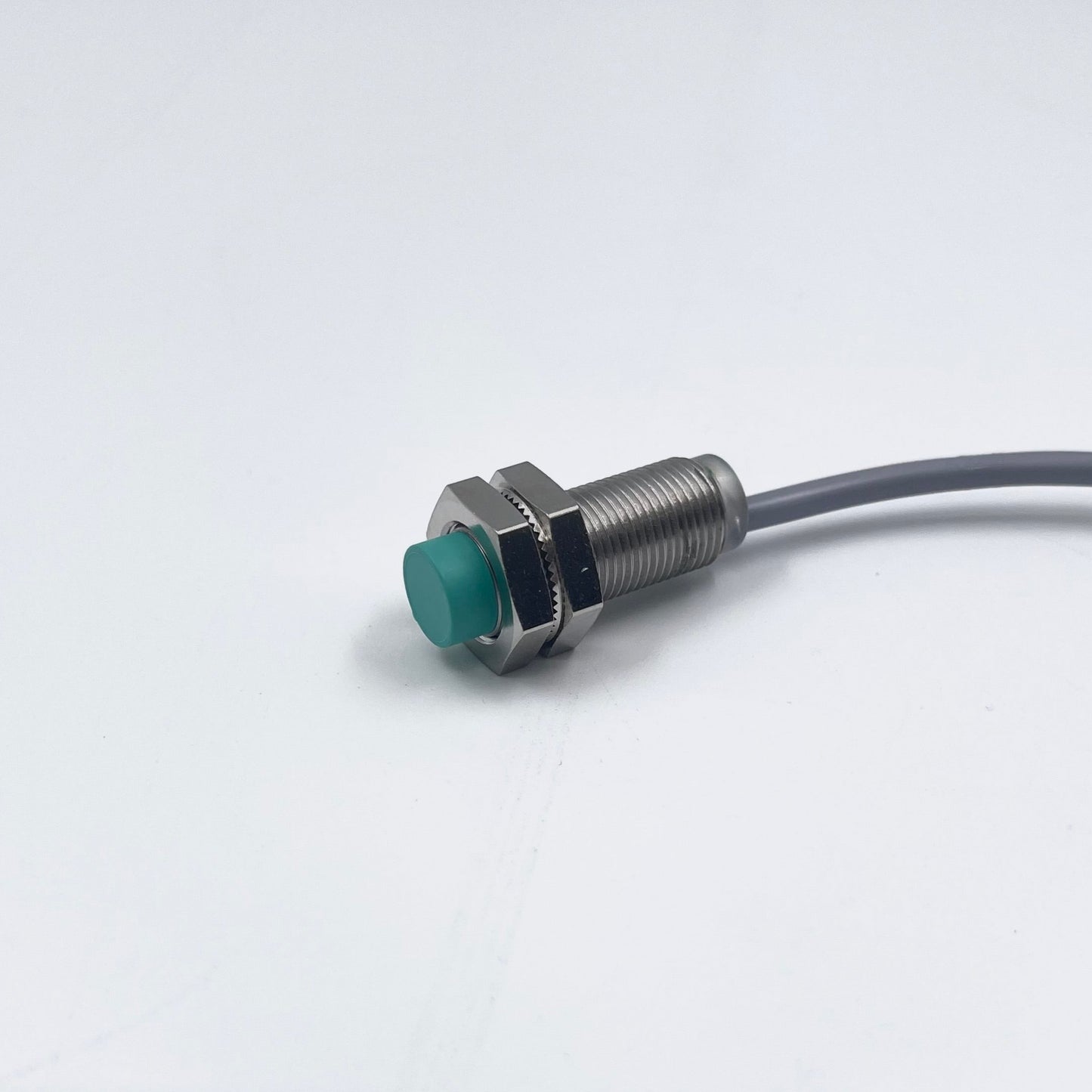

PF 109739 - Inductive Sensor

PF 109739 - Inductive Sensor

Regular price $205.43 NZD
Regular price Sale price $205.43 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

Inductive Sensor, 109739

  • 8 mm non-flush
  • 2-wire DC
  • Increased operating distance

Details : 109739

Compatible Part Numbers :

109739

NCN8-12GM35-Z4

Technical Data Sheet :

Datasheet excerpt: Technical data of  NCN8-12GM35-Z4

General specifications
Switching function Normally open (NO)
Output type Two-wire
Rated operating distance 8 mm
Installation non-flush
Output polarity DC
Assured operating distance 0 ... 6.48 mm
Reduction factor rAl 0.49
Reduction factor rCu 0.49
Reduction factor r304 0.74
Output type 2-wire
Nominal ratings
Operating voltage 3.5 ... 30 V
Switching frequency 0 ... 750 Hz
Hysteresis typ. 3 %
Reverse polarity protection reverse polarity-conductive
Short-circuit protection pulsing
Voltage drop ≤ 3.5 V
Temperature drift ± 15%
Operating current 2 ... 100 mA
Off-state current 0.4 ... 0.6 mA typ. 0.5 mA
Switching state indicator LED, yellow
Stability alarm indicator LED, red
Stability control-switch point 0,8 sr ... 0,9 sr
Functional safety related parameters
MTTFd 1010 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Compliance with standards and directives
Standard conformity
Standards EN 60947-5-2:2007
EN 60947-5-2/A1:2012
IEC 60947-5-2:2007
IEC 60947-5-2 AMD 1:2012
Approvals and certificates
UL approval cULus Listed, General Purpose
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type cable
Housing material brass, nickel-plated
Sensing face PBT
Degree of protection IP67
Cable
Cable diameter 3.7 mm + 0.2 mm
Bending radius > 10 x cable diameter
Material PVC
Color grey
Number of cores 2
Core cross section 0.34 mm2
Length 2 m
Dimensions
Length 35 mm
Diameter 12 mm



Classifications

System Classcode
ECLASS 13.0 27274001
ECLASS 12.0 27274001
ECLASS 11.0 27270101
ECLASS 10.0.1 27270101
ECLASS 9.0 27270101
ECLASS 8.0 27270101
ECLASS 5.1 27270101
ETIM 9.0 EC002714
ETIM 8.0 EC002714
ETIM 7.0 EC002714
ETIM 6.0 EC002714
ETIM 5.0 EC002714
UNSPSC 12.1 39121550
