Female Connector, 117133
  • Field-attachable
  • Metal locking
  • Knurled nut suitable for tool assembly
  • cURus approval

Details : 117133

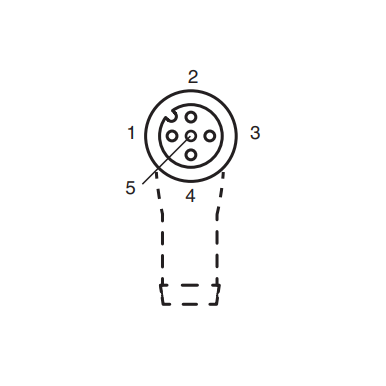

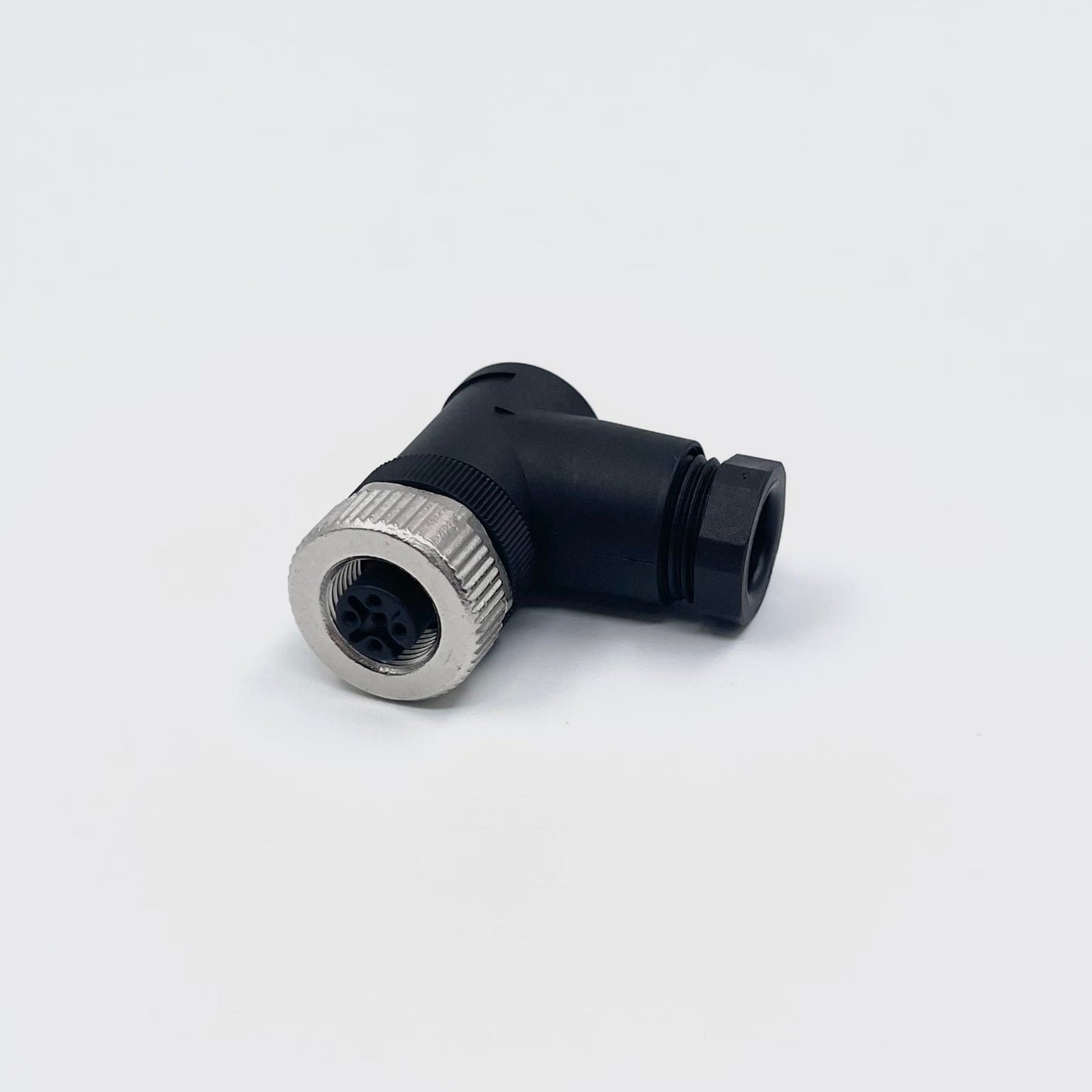

Female connector M12 angled A-coded 5-pin, for cable diameter 6 - 8 mm, field-attachable.

Compatible Part Numbers :

117133

V15-W-PG9

Technical Data Sheet :

Datasheet excerpt: Technical data of  V15-W-PG9

Product Description
Female connector M12 angled A-coded 5-pin, for cable diameter 6 - 8 mm, field-attachable
General specifications
Connector 1
Connection socket
Construction type M12
Style angled
Locking screw connection
Number of pins 5
Coding A-coded
Customization Coding rotateable in steps of 90°
UL File Number E363587
Electrical specifications
Operating voltage max. 48 V AC / 60 V DC
Operating current max. 4 A
Insulation resistance min. 100 MΩ
Conformity
Degree of protection EN 60529
Plug connection connector M12 x 1 : IEC 61076-2-101
Ambient conditions
Ambient temperature -40 ... 85 °C (-40 ... 185 °F)
Pollution degree 3
Mechanical specifications
Plug connector
Tightening torque 0.6 Nm
Tool installation straight knurling , hexagon nut SW = 18 mm
Mating cycles min. 50
Degree of protection IP67
Connection screw terminals for max. 0.75 mm2 / AWG 18
Cable
Sheath diameter 6 ... 8 mm
Mass 26.92 g
Material
Plug connector
Screw connection Zinc diecast, nickel-plated
Body PA, black
Contact surface CuSnZn



Classifications

System Classcode
ECLASS 13.0 27440103
ECLASS 12.0 27440103
ECLASS 11.0 27440102
ECLASS 10.0.1 27440102
ECLASS 9.0 27440102
ECLASS 8.0 27440104
ECLASS 5.1 27279201
ETIM 9.0 EC002635
ETIM 8.0 EC002635
ETIM 7.0 EC002635
ETIM 6.0 EC002635
ETIM 5.0 EC002585
UNSPSC 12.1 31251501
