V3S-GM / PF 183715 Male Connector - Conncetors
V3S-GM / PF 183715 Male Connector - Conncetors
Regular price
$36.76 NZD
Regular price
Sale price
$36.76 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Male Connector, V3S-GM / PF 183715
- Screw lock
Details: V3S-GM / PF 183715
Field-attachable male connector.
Compatible Part Numbers:
ST M8M3 or we can still order the original Pepperl Fuchs part.
183715
V3S-GM
Technical Data Sheet:
Datasheet excerpt: Technical data of V3S-GM / PF 183715
| General specifications | ||
|---|---|---|

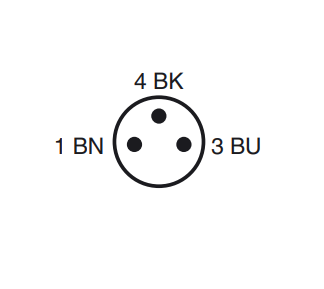

| Number of pins | 3 | |
| Connection 1 | Male connector | |
| Construction type 1 | straight | |
| Threading 1 | M8 | |
| Electrical specifications | ||
| Operating voltage | max. 60 V DC | |
| Test voltage | > 910 V eff AC | |
| Operating current | max. 4 A | |
| Volume resistance | < 3 mΩ | |
| Ambient conditions | ||
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Contact elements | spring-loaded contact socket | |
| Pin diameter | 1 mm | |
| Degree of protection | IP67 | |
| Connection | 1 x M8 straight connector Screw terminals for 0.14 ... 0.5 mm2 |
|
| Material | ||
| Contacts | CuZn | |
| Contact surface | Au | |
| Body | PBT | |
| Slotted nut | CuZn, nickel-plated | |
| Cable | ||
| Sheath diameter | 3.5 ... 5 mm | |
| Flammability | ||
| Housing | 94 V-0 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440102 |
| ECLASS 10.0.1 | 27440102 |
| ECLASS 9.0 | 27440102 |
| ECLASS 8.0 | 27440104 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
