GLV18-8-200/73/120 - PF 188568 - Diffuse Mode Sensor
GLV18-8-200/73/120 - PF 188568 - Diffuse Mode Sensor
Regular price
$203.16 NZD
Regular price
Sale price
$203.16 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Diffuse Mode Sensor, GLV18-8-200/73/120 - PF 188568
- Efficient Line in a short M18 plastic housing for standard applications.
- 4 LEDs indicator for 360° visibility.
- Optimized potentiometer design for a clear control button layout in the application.
- Version with front optical face.
- DC voltage version.
Details: GLV18-8-200/73/120 - PF 188568
Diffuse mode sensor, M18 threaded housing design, plastic housing, front optical face, 200 mm detection range, red light, light/dark on, DC version, 2 PNP outputs, M12 plug.
Compatible Part Numbers:
188568
GLV18-8-200/73/120
Technical Data Sheet:
Datasheet excerpt: Technical data of GLV18-8-200/73/120 - PF 188568
| General specifications | ||
|---|---|---|
| Detection range | 50 ... 200 mm adjustable | |
| Detection range max. | 0 ... 200 mm | |
| Reference target | 100 mm x 100 mm Kodak white | |
| Light source | LED | |
| Light type | modulated visible red light , 640 nm | |
| Diameter of the light spot | approx. 15 mm at 200 mm | |
| Opening angle | approx. 4 ° | |
| Optical face | frontal | |
| Ambient light limit | 30000 Lux | |
| Hysteresis | < 15 % | |
| Functional safety related parameters | ||
| MTTFd | 920 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green, statically lit Power on | |
| Function indicator | LED yellow: lights when object is detected ; flashes when falling short of the operating reserve | |
| Control elements | sensitivity adjustment | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC | |
| No-load supply current | < 20 mA | |
| Output | ||
| Switching type | light/dark on | |
| Signal output | 2 PNP, complementary, short-circuit protected, open collectors | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Voltage drop | ≤ 1.5 V DC | |
| Switching frequency | 500 Hz | |
| Response time | ≤ 1 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| Protection class | II, Rated insulation voltage ≤ 50 V AC with pollution degree 1-2 according to IEC 60664-1 | |
| UL approval | cULus Listed, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 60 °C (-13 ... 140 °F) | |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |

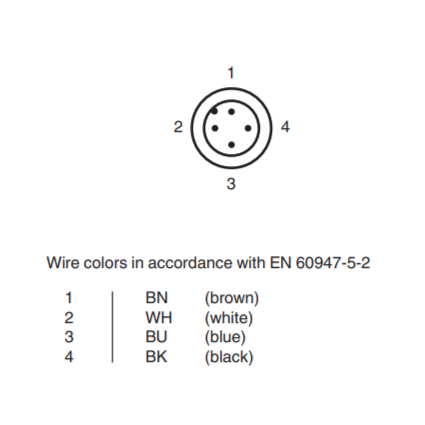

| Connection | 4-pin, M12 x 1 connector | |
| Material | ||
| Housing | PC | |
| Optical face | PMMA | |
| Connector | plastic | |
| Mass | approx. 10 g | |
| Dimensions | ||
| Length | 43.9 mm | |
| Diameter | 18 mm | |
| Thread size | M18 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270903 |
| ECLASS 12.0 | 27270903 |
| ECLASS 11.0 | 27270903 |
| ECLASS 10.0.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 5.1 | 27270903 |
| ETIM 9.0 | EC001821 |
| ETIM 8.0 | EC001821 |
| ETIM 7.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 5.0 | EC001821 |
| UNSPSC 12.1 | 39121528 |
