VAZ-LED-70MM-RD / PF 196233 - Warning Beacon
VAZ-LED-70MM-RD / PF 196233 - Warning Beacon
Regular price
$147.74 NZD
Regular price
Sale price
$147.74 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

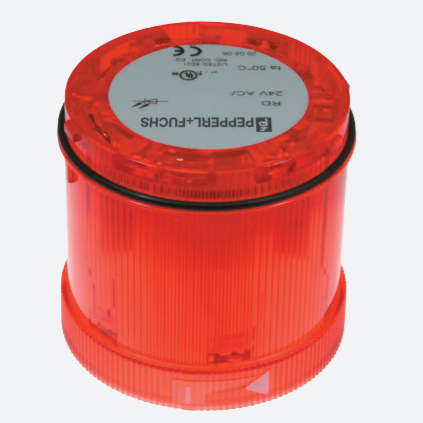

Stack light LED permanent light element red, VAZ-LED-70MM-RD, PF 196233
- Modular design.
- Flexible combination of signal elements.
- Bayonet system for simple mounting and dismounting.
- Long lifetime.
- 70-mm-series.
Details: VAZ-LED-70MM-RD / PF 196233
Stack light LED permanent light elementt, red.
Compatible Part Numbers:
196233
VAZ-LED-70MM-RD
Technical Data Sheet:
Datasheet excerpt: Technical data of VAZ-LED-70MM-RD / PF 196233
| General specifications | ||
|---|---|---|
| UL File Number | E223176 | |
| Color | red | |
| Functional safety related parameters | ||
| MTTFd | 8700 a | |
| Electrical specifications | ||
| Rated operating voltage | 24 V AC/DC | |
| Rated operating current | ≤ 35 mA at 24 V DC 36 mA at 30.5 V (AS-Interface) |
|
| Protection class | III | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2014/30/EU | EN 60947-5-1 EN 60947-1 |
|
| Standard conformity | ||
| Degree of protection | EN 60529 | |
| Ambient conditions | ||
| Ambient temperature | -20 ... 50 °C (-4 ... 122 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | Bayonet system | |
| Dimensions | ||
| Height | 70 mm | |
| Diameter | 70 mm | |
| Life span | Max. 50,000 hours = 5.7 years (continuous operation) | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27371220 |
| ECLASS 12.0 | 27371220 |
| ECLASS 11.0 | 27371220 |
| ECLASS 10.0.1 | 27371220 |
| ECLASS 9.0 | 27371220 |
| ECLASS 8.0 | 27371220 |
| ECLASS 5.1 | 27371220 |
| ETIM 9.0 | EC000232 |
| ETIM 8.0 | EC000232 |
| ETIM 7.0 | EC000232 |
| ETIM 6.0 | EC000232 |
| ETIM 5.0 | EC000232 |
| UNSPSC 12.1 | 39121533 |
