NBB1-3M22-E2-0,3M-V3 / PF 224128 - Inductive Sensor

NBB1-3M22-E2-0,3M-V3 / PF 224128 - Inductive Sensor

Regular price $318.44 NZD
Regular price Sale price $318.44 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

Inductive Sensor, NBB1-3M22-E2-0,3M-V3  /  PF 224128

  • 1 mm flush.
  • Miniature design.
  • Cable with M8 plu.

Details: NBB1-3M22-E2-0,3M-V3  /  PF 224128

Compatible Part Numbers:

224128

NBB1-3M22-E2-0,3M-V3

Technical Data Sheet:

Datasheet excerpt: Technical data of  NBB1-3M22-E2-0,3M-V3 / PF 224128

General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance 1 mm
Installation flush
Output polarity DC
Assured operating distance 0 ... 0.81 mm
Reduction factor rAl 0.4
Reduction factor rCu 0.29
Reduction factor r304 0.76
Reduction factor rBrass 0.46
Output type 3-wire
Nominal ratings
Operating voltage 10 ... 30 V
Switching frequency 0 ... 700 Hz
Hysteresis typ. 5%
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 3 V
Operating current 0 ... 100 mA
Off-state current 0 ... 0.1 mA typ. at 25 °C
No-load supply current ≤ 10 mA
Switching state indicator LED, yellow
Functional safety related parameters
MTTFd 1340 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Compliance with standards and directives
Standard conformity
Standards EN 60947-5-2:2007
EN 60947-5-2/A1:2012
IEC 60947-5-2:2007
IEC 60947-5-2 AMD 1:2012
Approvals and certificates
UL approval cULus Listed, General Purpose
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Connection type fixed cable with plug
Housing material Stainless steel 1.4305 / AISI 303
Sensing face PC
Degree of protection IP67

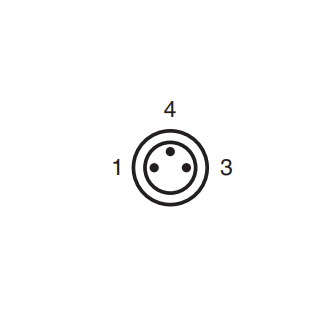

Connector
Threading M8 x 1
Tightening torque 0.4 Nm
Number of pins 3
Cable
Cable diameter 2.6 mm ± 0.1 mm
Bending radius > 10 x cable diameter
Material PUR
Color grey
Number of cores 3
Core cross section 0.055 mm2
Length 0.3 m
Mass 12 g
Dimensions
Length 22 mm
Diameter 3 mm


Classifications

System Classcode
ECLASS 13.0 27274001
ECLASS 12.0 27274001
ECLASS 11.0 27270101
ECLASS 10.0.1 27270101
ECLASS 9.0 27270101
ECLASS 8.0 27270101
ECLASS 5.1 27270101
ETIM 9.0 EC002714
ETIM 8.0 EC002714
ETIM 7.0 EC002714
ETIM 6.0 EC002714
ETIM 5.0 EC002714
UNSPSC 12.1 39121550

1 in stock
