V3-GM / PF 229287 - Connectors
V3-GM / PF 229287 - Connectors
Regular price
$29.86 NZD
Regular price
Sale price
$29.86 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

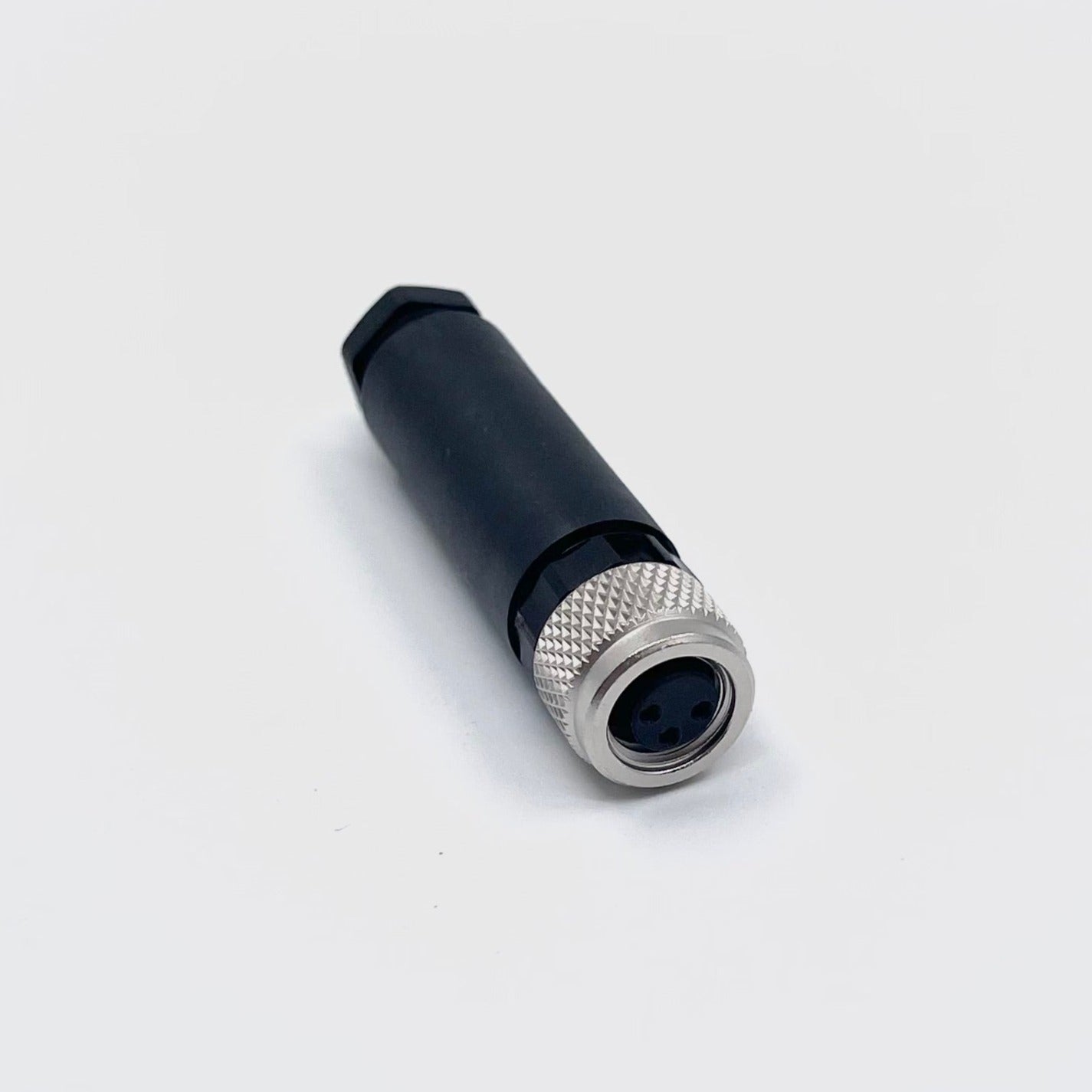

Female Connector, V3-GM / PF 229287
- Screw terminal connection
- Gold plated contacts
Details: V3-GM / PF 229287
Female connector, M8, 3-pin, field attachable.
Compatible Part Numbers:
229287
V3-GM
Technical Data Sheet:
Datasheet excerpt: Technical data of V3-GM / PF 229287
| General specifications | ||
|---|---|---|

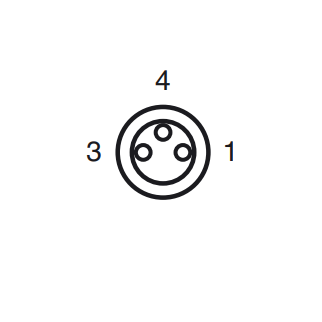

| Number of pins | 3 | |
| Connection 1 | socket | |
| Construction type 1 | straight | |
| Threading 1 | M8 | |
| Electrical specifications | ||
| Operating voltage | max. 60 V AC/DC | |
| Operating current | max. 4 A | |
| Volume resistance | < 3 mΩ | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 85 °C (-13 ... 185 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | 1 x M8 socket, straight Screw terminals for 0.14 ... 0.5 mm2 |
|
| Material | ||
| Contacts | CuZn | |
| Contact surface | Au | |
| Body | PBT , PA, black | |
| Cable | ||
| Sheath diameter | 3.5 ... 5 mm | |
| Flammability | ||
| Contact carrier | UL 94 HB | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440103 |
| ECLASS 12.0 | 27440103 |
| ECLASS 11.0 | 27440102 |
| ECLASS 10.0.1 | 27440102 |
| ECLASS 9.0 | 27440102 |
| ECLASS 8.0 | 27440104 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
1 in stock
