PF 29

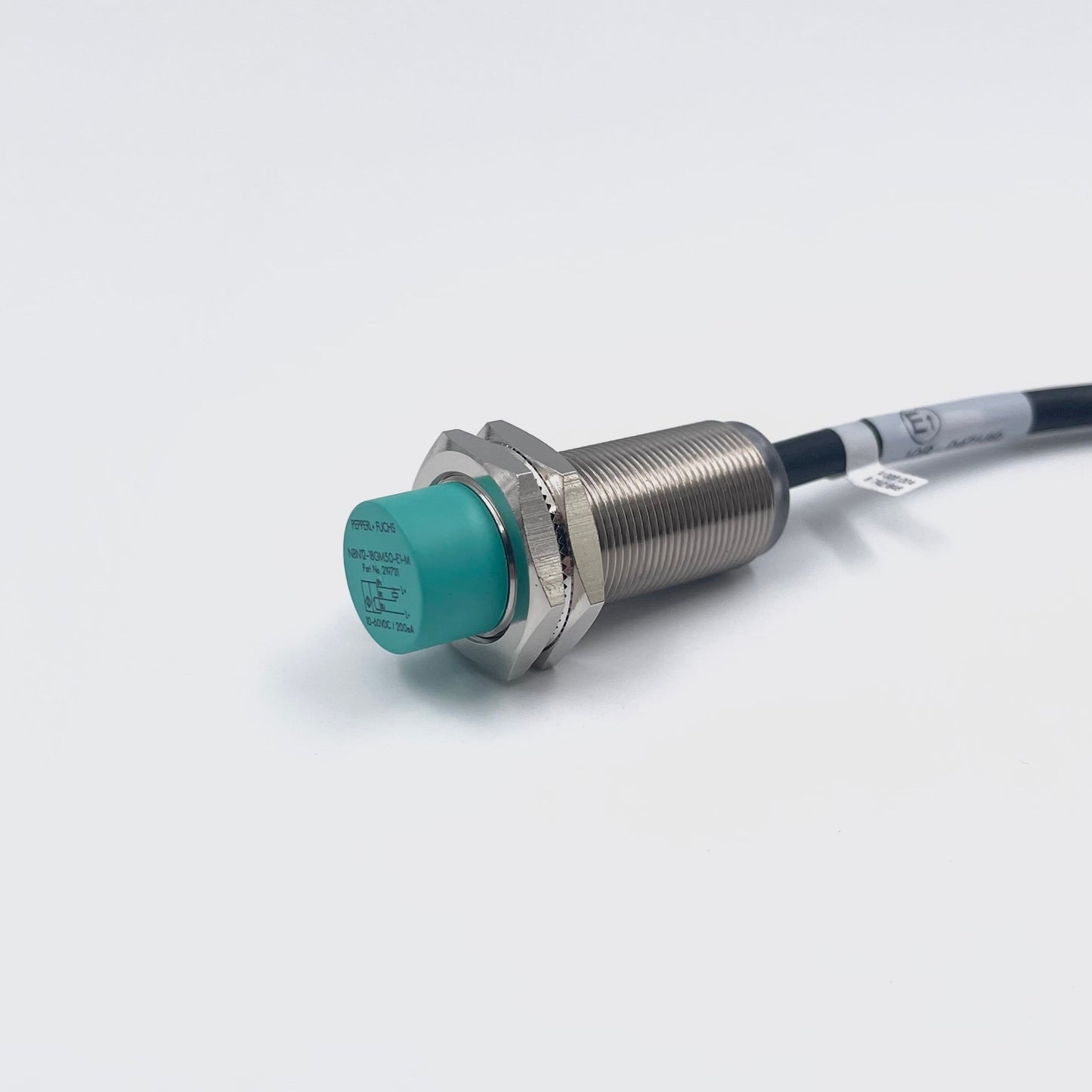

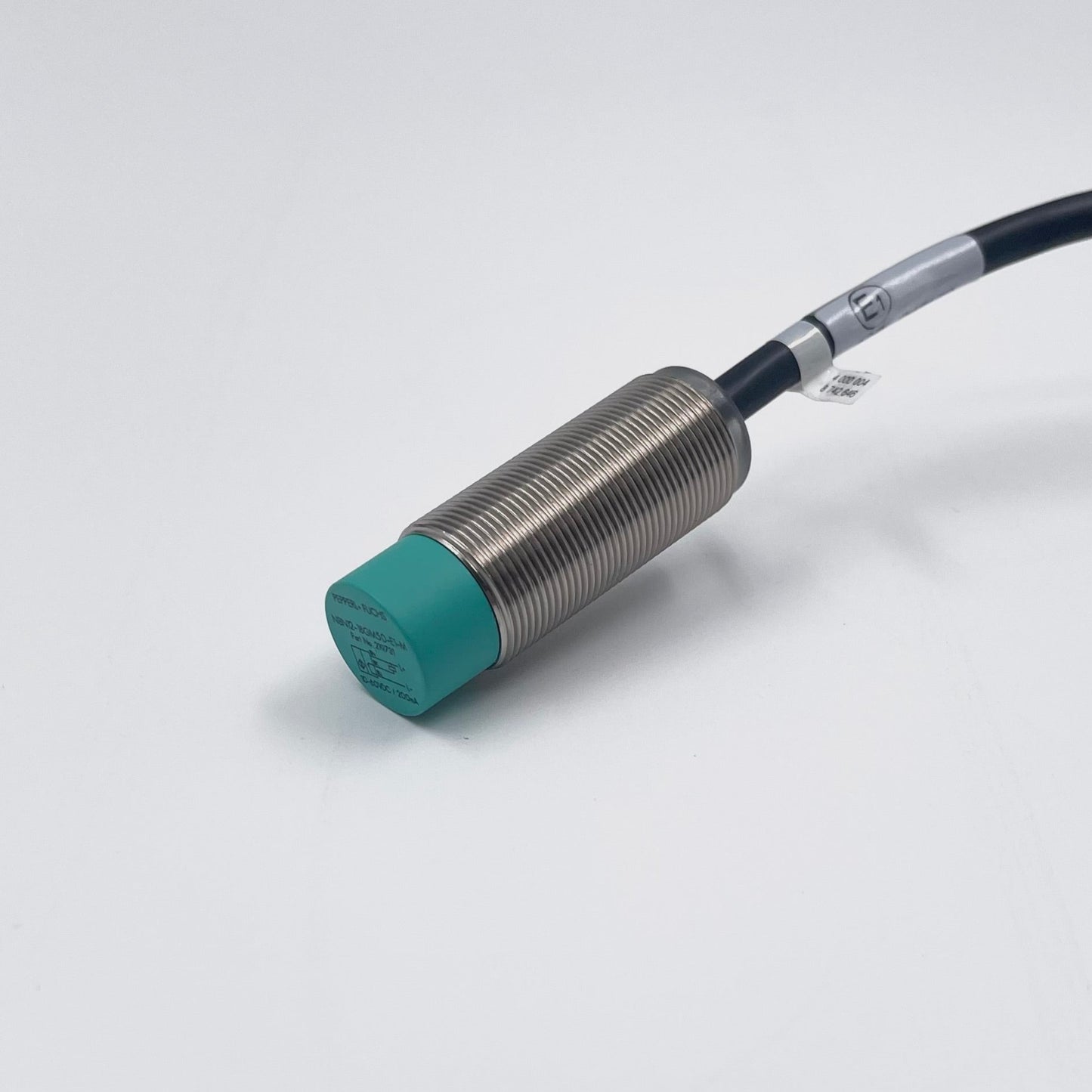

PF 240173 - Inductive Sensor

PF 240173 - Inductive Sensor

Regular price $271.51 NZD
Regular price Sale price $271.51 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

Inductive Sensor, 240173

  • 12 mm non-flush
  • Extended temperature range
    -40 ... +85 °C
  • E1-Type approval
  • Increased noise immunity 100 V/m
  • With increased sealing, protection class
    IP68 / IP69K
  • Highly shock and vibration resistant

Details : 240173

Compatible Part Numbers :

240173

NBN12-18GM50-E1-M

219731

Technical Data Sheet :

Datasheet excerpt: Technical data of  NBN12-18GM50-E1-M

General specifications
Switching function Normally closed (NC)
Output type NPN
Rated operating distance 12 mm
Installation non-flush
Output polarity DC
Assured operating distance 0 ... 9.72 mm
Reduction factor rAl 0.5
Reduction factor rCu 0.4
Reduction factor r304 0.7
Reduction factor rBrass 0.5

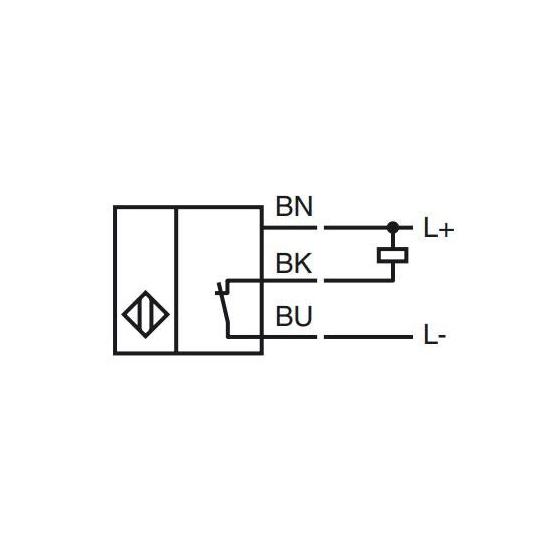

Output type 3-wire
Nominal ratings
Operating voltage 5 ... 60 V
Switching frequency 0 ... 1500 Hz
Hysteresis type 5 %
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Inductive overvoltage protection yes
Surge suppression yes
Voltage drop ≤ 2 V
Rated insulation voltage 60 V
Operating current 0 ... 200 mA
Off-state current 0 ... 0.5 mA typ. 0.1 µA at 25 °C
No-load supply current ≤ 7 mA
Time delay before availability ≤ 220 ms
Switching state indicator LED, yellow
Functional safety related parameters
MTTFd 1085.5 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Compliance with standards and directives
Standard conformity
Standards EN 60947-5-2:2007
IEC 60947-5-2:2007
Approvals and certificates
UL approval cULus Listed, General Purpose, Class 2 Power Source
CSA approval cCSAus Listed, General Purpose, Class 2 Power Source
CCC approval Certified by China Compulsory Certification (CCC)
E1 Type approval 10R-04
Ambient conditions
Ambient temperature -40 ... 85 °C (-40 ... 185 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type cable PUR , 2 m
Core cross section 3 x 0.75 mm2
Housing material brass, nickel-plated
Sensing face PBT
Degree of protection IP68 / IP69K
Mass 132 g
Dimensions
Length 55 mm
Diameter 18 mm



Classifications

System Classcode
ECLASS 13.0 27274001
ECLASS 12.0 27274001
ECLASS 11.0 27270101
ECLASS 10.0.1 27270101
ECLASS 9.0 27270101
ECLASS 8.0 27270101
ECLASS 5.1 27270101
ETIM 9.0 EC002714
ETIM 8.0 EC002714
ETIM 7.0 EC002714
ETIM 6.0 EC002714
ETIM 5.0 EC002714
UNSPSC 12.1 39121550
