RAVE-D / PF 260621 - Radar Sensor
RAVE-D / PF 260621 - Radar Sensor
Price (exc. GST) each
Couldn't load pickup availability

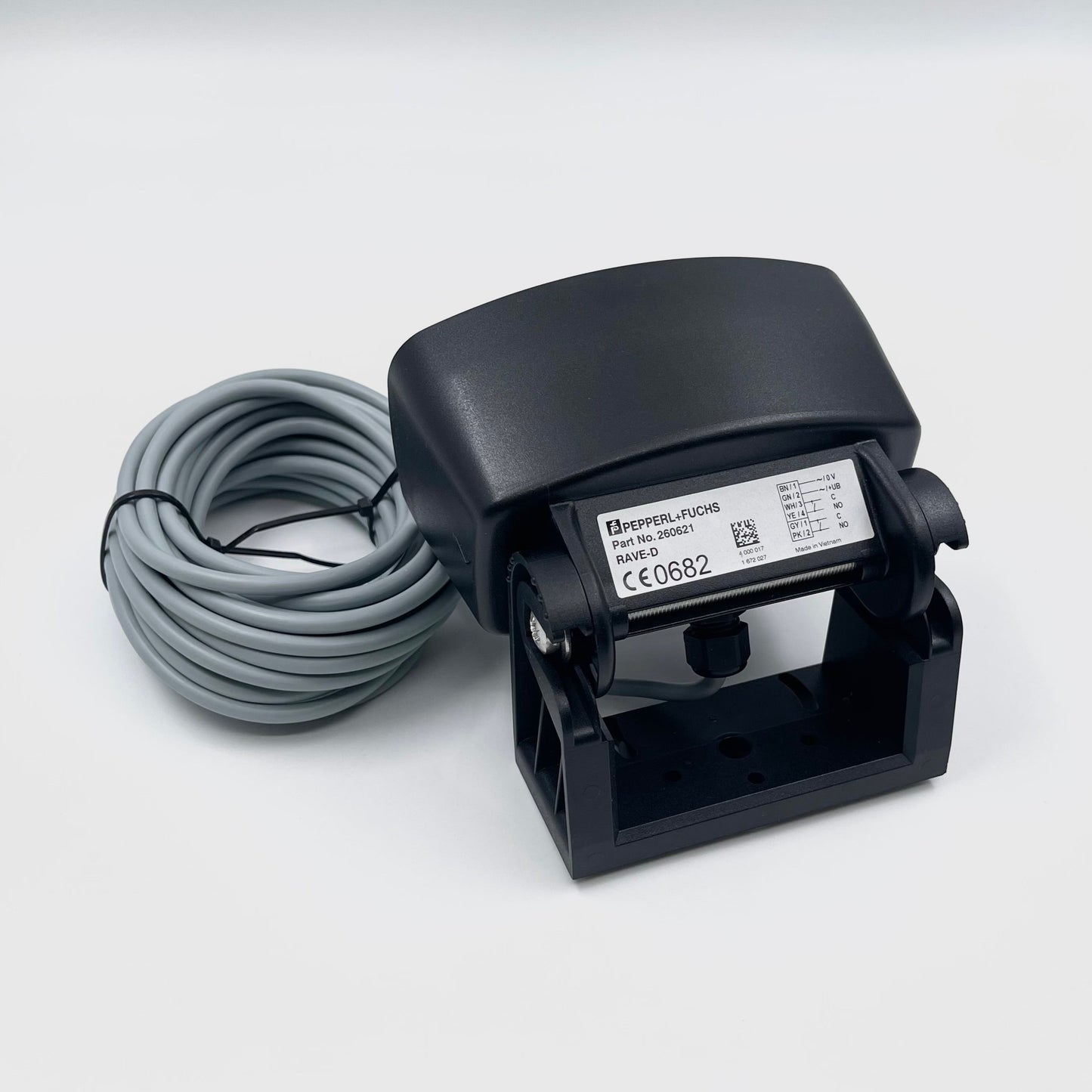

Radar Sensor, RAVE-D / PF 260621
- Degree of protection IP67.
- Differentiated detection of people and vehicles, each with one output relay.
- Cross-traffic suppression and rotation direction monitoring.
- Simplified adjustment options via remote control or integrated push buttons.
- Wall and ceiling mountable.
- Vehicle Detection Relay output
- Human Detection Relay output
Details: RAVE-D / PF 260621
Premium industrial door opener with the ability to differentiate between people and vehicles, can be operated remotely, detection range 9 m x 6.5 m, max. installation height 7 m, black housing, 2 relay contact outputs, cable connection.
Compatible Part Numbers:
260621
RAVE-D
Radar
truck detection.
Technical Data Sheet PDF:
Datasheet excerpt: Technical data of RAVE-D / PF 260621
Rave-D Radar Programming via buttons instructions PDF:
Hint: Vehicle Detection mode 2 = Height of vehicle
Low = Like a car work van
Medium= Transit Van
High= Big truck detection
We have an Ver 1. 1 Loan Remote available to help program these, when installed up high.
Version2.0 remote programmer instructions
| General specifications | ||
|---|---|---|
| Sensing range | 9000 x 6500 mm (d x w) at installation height of 5000 mm and 45° angle 10000 x 5500 mm (d x w) at installation height of 7000 mm and 45° angle |
|
| Function principle | Microwave module | |
| Detection speed | min. 0.1 m/s | |
| Marking | CE | |
| Setting angle | -90 ... 90 ° in 15 ° increments | |
| Operating frequency | 24.15 ... 24.25 GHz K-Band | |
| Operating mode | Radar motion sensor | |
| Transmitter radiated power (EIRP) | < 13 dBm | |
| Functional safety related parameters | ||
| MTTFd | 620 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Function indicator | LED red/green | |
| Control elements | Programming push-button for selection of operating modes : direction detection , cross-traffic suppression , Vehicle detection , Switching type , relay hold time | |
| Control elements | Programming via 2 keys , alternative via remote control (Accessories ordered separately) | |
| Electrical specifications | ||
| Operating voltage | 12 ... 36 V DC , 12 ... 28 V AC | |
| No-load supply current | ≤ 50 mA at 24 V DC | |
| Power consumption | ≤ 1 W | |
| Output | ||
| Switching type | NO/NC | |
| Signal output | 2 relay outputs | |
| Switching voltage | max. 48 V AC / 48 V DC | |
| Switching current | max. 0.5 A AC / 1 A DC | |
| Switching power | max. 24 W / 60 VA | |
| De-energized delay | 0.5 ... 300 s adjustable | |
| Approvals and certificates | ||
| CE conformity | 2014/53/EU This device can be used in all countries within the EU including the United Kingdom. In other countries, all applicable national regulations must be observed. | |
| Ambient conditions | ||
| Operating temperature | -30 ... 60 °C (-22 ... 140 °F) | |
| Storage temperature | -30 ... 60 °C (-22 ... 140 °F) | |
| Relative humidity | max. 90 % non-condensing | |
| Mechanical specifications | ||
| Mounting height | 2500 ... 7000 mm | |
| Degree of protection | IP67 | |

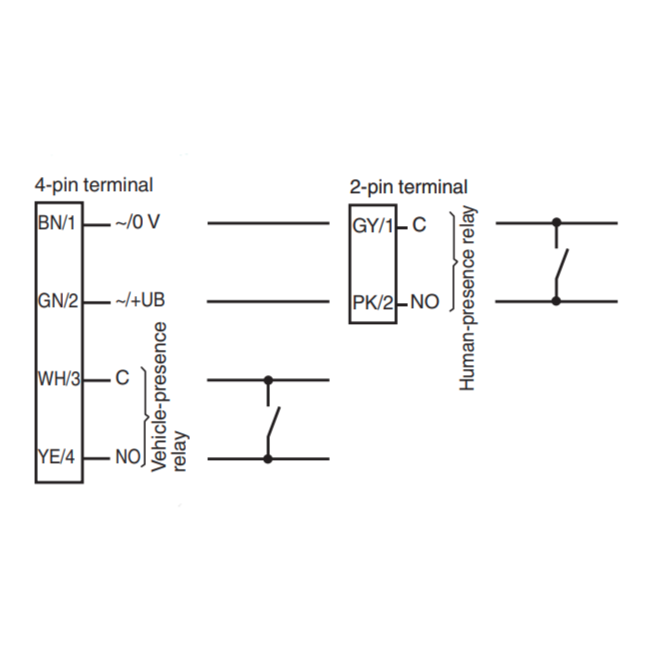

| Connection | plug-in screw terminals 4-pin and 2-pin , 8 m connecting cable included with delivery | |
| Material | ||
| Housing | Polycarbonate (PC) , anthracite | |
| Mass | 650 g | |
| Dimensions | with Mounting bracket : 131 mm x 73 mm x 136 mm | |
| Height | 73 mm | |
| Width | 131 mm | |
| Depth | 98 mm | |
| Suitable series | ||
| Series | RAVE | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27274501 |
| ECLASS 12.0 | 27280890 |
| ECLASS 11.0 | 27280890 |
| ECLASS 10.0.1 | 27280890 |
| ECLASS 9.0 | 27280890 |
| ECLASS 8.0 | 27280890 |
| ECLASS 5.1 | 27270990 |
| ETIM 9.0 | EC004807 |
| ETIM 8.0 | EC000138 |
| ETIM 7.0 | EC000138 |
| ETIM 6.0 | EC000138 |
| ETIM 5.0 | EC000138 |
| UNSPSC 12.1 | 39121528 |
1 in stock
