ML7-54-G/82b/103/143 / PF 194193 - Retroreflective Sensor
ML7-54-G/82b/103/143 / PF 194193 - Retroreflective Sensor
Regular price
$315.02 NZD
Regular price
Sale price
$315.02 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Retroreflective Sensor, ML7-54-G/82b/103/143 / PF 194193
- Miniature design with versatile mounting options.
- Detects transparent objects, i.e., clear glass, PET and transparent films.
- Two machines in one: clear object detection or reflection operating mode with long range.
- High degree of protection IP69K.
- IO-Link interface for service and process data.
Details: ML7-54-G/82b/103/143 / PF 194193
Retroreflective sensor for standard applications, miniature design, clear object detection, front optical face, 7.6 m detection range, red light, dark on, PNP output, weak signal output, M8 plug, with polarization filter for clear object viewing.
Compatible Part Numbers:
194193
ML7-54-G/82b/103/143
267075-100485
OBG5000-R100-E5F-IO-V31
Technical Data Sheet:
Datasheet excerpt: Technical data of ML7-54-G/82b/103/143 / PF 194193
| General specifications | ||
|---|---|---|
| Effective detection range | 0 ... 3.5 m in TEACH mode 0 ... 5.7 m at switch position "N" | |
| Reflector distance | 0 ... 3.5 m in TEACH mode 0 ... 5.7 m at switch position "N" | |
| Threshold detection range | 7.6 m | |
| Reference target | H85-2 reflector | |
| Light source | LED | |
| Light type | modulated visible red light , 660 nm | |
| Polarization filter | yes | |
| Angle deviation | max. ± 1° | |
| Diameter of the light spot | approx. 40 mm at detection range 1 m | |
| Opening angle | 1.7 ° | |
| Ambient light limit | 40000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 980 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz) | |
| Function indicator | LED yellow: switching state ; Operating reserve ; Teach-In | |
| Control elements | 5-step switch for setting the contrast detection levels. |
|
| Contrast detection levels | 10 % - clean, water filled PET bottles 18 % - clear glass bottles 40 % - colored glass or opaque materials adjustable due to Teach-In switch |
|
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC | |
| Ripple | max. 10 % | |
| No-load supply current | < 20 mA at 24 V DC | |
| Output | ||

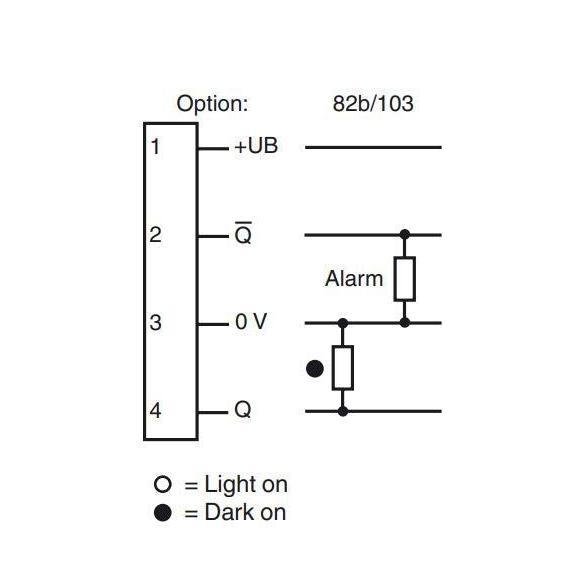

| Stability alarm output | 1 PNP function reserve output (alarm), short-circuit protected, protected from reverse polarity, open collector | |
| Switching type | dark-on | |
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Switching frequency | 1 kHz | |
| Response time | 500 µs | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| Protection class | II, rated voltage ≤ 50 V AC with pollution degree 1-2 according to IEC 60664-1 functional insulation acc. to DIN EN 50178 | |
| UL approval | cULus | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) | |
| Storage temperature | -40 ... 75 °C (-40 ... 167 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 / IP69K | |

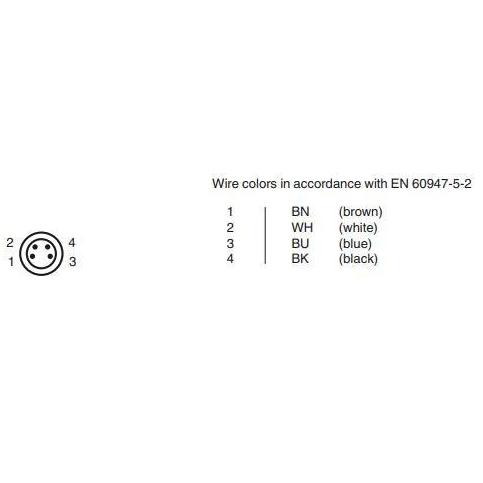

| Connection | M8 x 1 connector, 4-pin | |
| Material | ||
| Housing | PC (glass-fiber-reinforced Makrolon) | |
| Optical face | PMMA | |
| Connector | plastic | |
| Mass | 10 g | |
| Dimensions | ||
| Height | 31 mm | |
| Width | 11 mm | |
| Depth | 23 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 10.0.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 5.1 | 27270902 |
| ETIM 9.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 5.0 | EC002717 |
| UNSPSC 12.1 | 39121528 |
