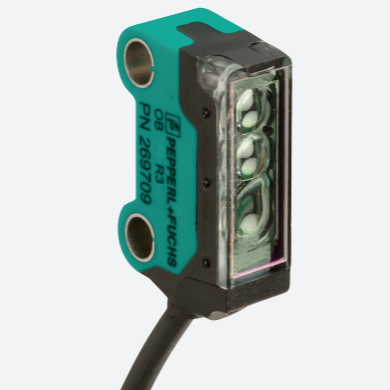

Triangulation Sensor, (BGS) OBT80-R3-E2 / PF 269714
- 45° cable outlet for maximum mounting freedom under extremely tight space constraints.
- Improvement in machine availability with abrasion-resistant, antistatic glass front.
- Highly visible light spot, even on dark materials.
- Precision object detection, almost irrespective of the color.
- Extremely long detection range paves the way for new applications.
Details: (BGS) OBT80-R3-E2 / PF 269714
With background suppression for standard applications, miniature design, 80 mm sensing range, red light, light on, PNP output, fixed cable.
Compatible Part Numbers:
269714
(BGS) OBT80-R3-E2
70141901
OBT80-R3-E2-P
Technical Data Sheet:
Datasheet excerpt: Technical data of (BGS) OBT80-R3-E2 / PF 269714

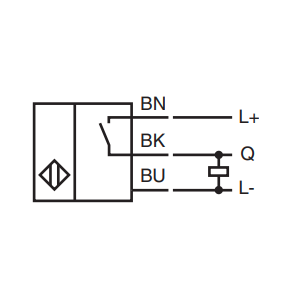

| General specifications | ||
|---|---|---|
| Detection range | 15 ... 80 mm | |
| Reference target | standard black, 100 mm x 100 mm | |
| Light source | LED | |
| Light type | modulated visible red light , 630 nm | |
| Black-white difference (6 %/90 %) | < 20 % | |
| Angle deviation | approx. 2 ° | |
| Diameter of the light spot | approx. 5 mm at a distance of 80 mm | |
| Opening angle | approx. 2 ° | |
| Optical face | frontal | |
| Ambient light limit | EN 60947-5-2 : 30000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 800 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green, statically lit Power on , short-circuit : LED green flashing (approx. 4 Hz) | |
| Function indicator | LED yellow ON: lights when object is detected | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC , class 2 | |
| No-load supply current | < 10 mA | |
| Protection class | III | |
| Output | ||
| Switching type | NO contact | |
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 50 mA , resistive load | |
| Voltage drop | ≤ 1.5 V DC | |
| Switching frequency | approx. 800 Hz | |
| Response time | 600 µs | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| EAC conformity | TR CU 020/2011 | |
| UL approval | E87056 , cULus Recognized, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 60 °C (-13 ... 140 °F) | |
| Storage temperature | -30 ... 70 °C (-22 ... 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | 2 m fixed cable | |
| Material | ||
| Housing | PC/ABS and TPU | |
| Optical face | glass | |
| Cable | PUR | |
| Mass | approx. 20 g | |
| Dimensions | ||
| Height | 26 mm | |
| Width | 7.5 mm | |
| Depth | 13.8 mm | |
| Cable length | 2 m | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270903 |
| ECLASS 12.0 | 27270903 |
| ECLASS 11.0 | 27270903 |
| ECLASS 10.0.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 5.1 | 27270903 |
| ETIM 9.0 | EC001821 |
| ETIM 8.0 | EC001821 |
| ETIM 7.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 5.0 | EC002719 |
| UNSPSC 12.1 | 39121528 |
