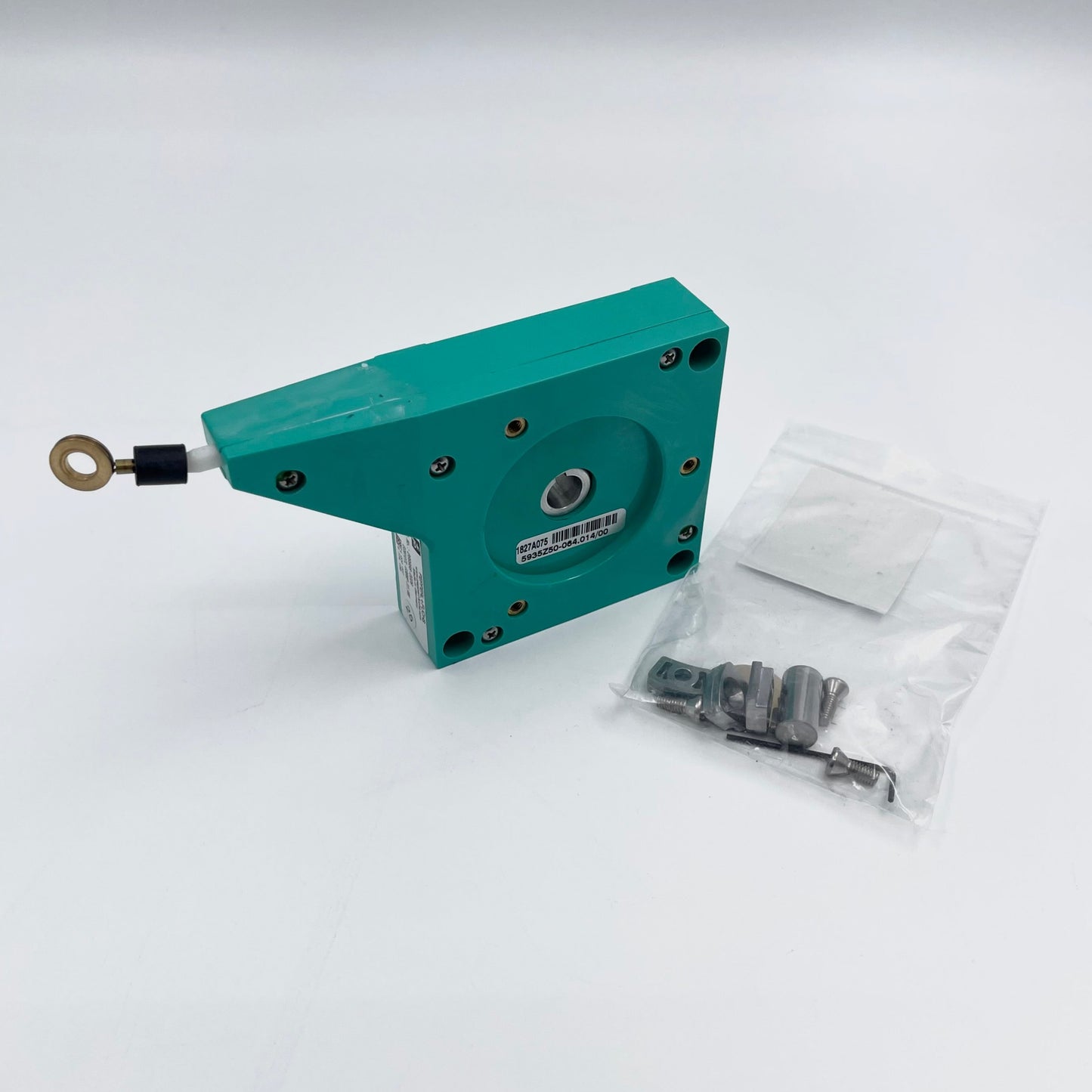

ECN10TL - PF 269988-0029 - Cable pull
ECN10TL - PF 269988-0029 - Cable pull
Regular price
$858.75 NZD
Regular price
Sale price
$858.75 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Cable pull, ECN10TL - PF 269988-0029
- Solid yet lightweight plastic construction.
- Compact, slim design. (the shaft of the flange-mounted rotary encoder is used to provide the function of the drum bearing)
- Coupling-free adaptation.
- Multitude of mounting possibilities.
- Rust and acid-resistant measuring cable.
- Very high level of linearity and repeatability.
Details: ECN10TL - PF 269988-0029
Cable Pull.
Compatible Part Numbers:
269988-0029
ECN10TL
ECN10TL-*
ECN10TL-03BNP-X1:NN
Technical Data Sheet:
Datasheet excerpt: Technical data of ECN10TL - PF 269988-0029
| General specifications | ||
|---|---|---|
| Device type | Target Line | |
| Measuring range | 3000 ... 10000 mm | |
| Construction type | 80 mm, 130 mm, 190 mm | |
| Ambient conditions | ||
| Ambient temperature | -30 ... 70 °C (-22 ... 158 °F) | |
| Mechanical specifications | ||
| Rope diameter | 0.55 mm | |
| Degree of protection | IP50 | |
| Material | ||
| Housing | design 80/130 : Luranyl® or Lexan 920 design 190 : ABS-GF17 |
|
| Rope | Stainless steel 1.4401/316 | |
| Life span | up to 106 Cycles | |
| General information | ||
| Scope of delivery | Shaft adapter for rotary encoder with shaft dimension ∅ 6 mm x 10 mm up to 20 mm , adapter flange , Mounting clips , 3 x M4 x 8 bolts for mounting the adapter , Cover disk , Hexagon socket wrench, 1.3 AF | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270592 |
| ECLASS 12.0 | 27270592 |
| ECLASS 11.0 | 27270592 |
| ECLASS 10.0.1 | 27270592 |
| ECLASS 9.0 | 27270592 |
| ECLASS 8.0 | 27279103 |
| ECLASS 5.1 | 27270591 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121527 |
1 in stock
