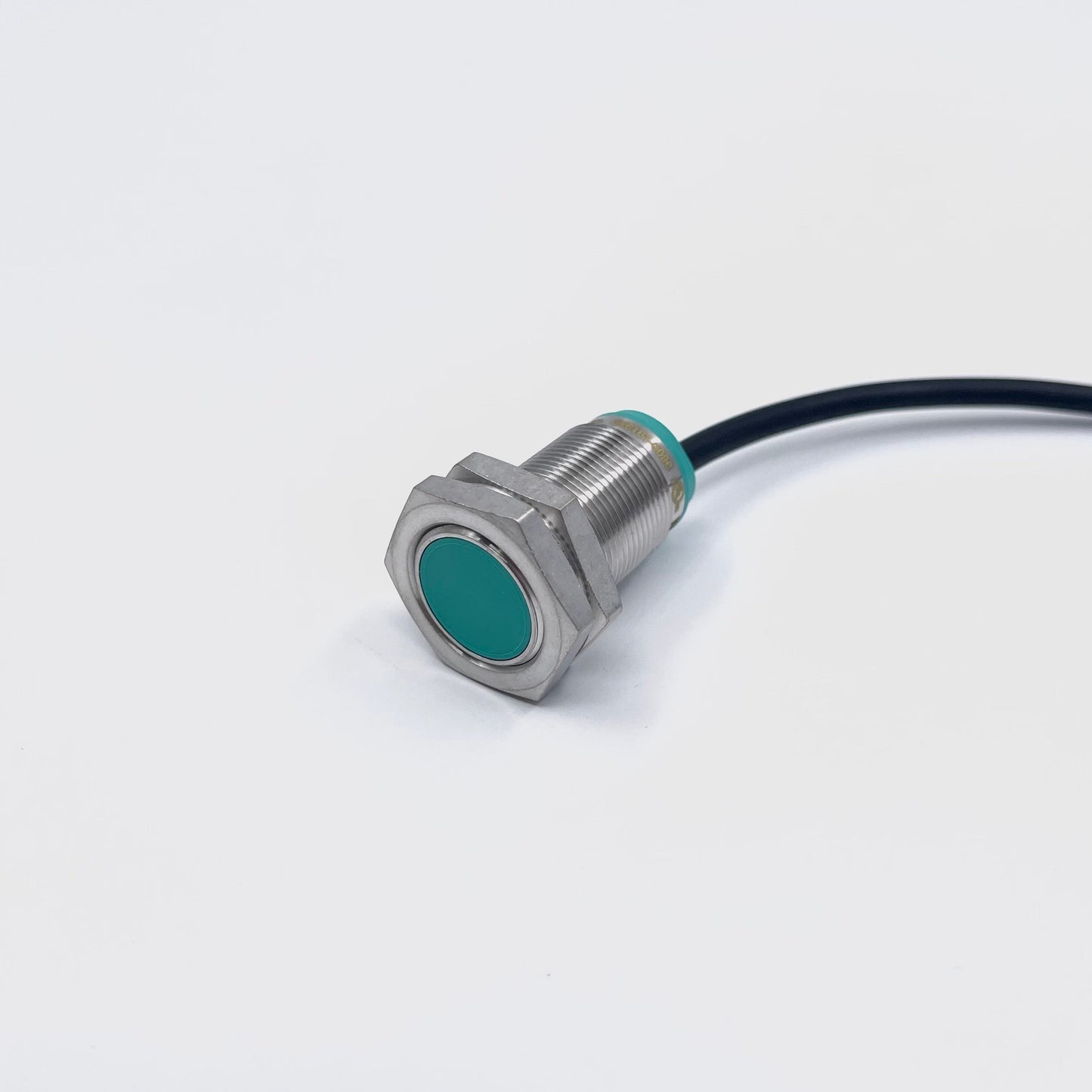

NBB8-18GM30-E2 / PF 326161-0096 - Inductive Sensor

NBB8-18GM30-E2 / PF 326161-0096 - Inductive Sensor

Regular price $208.03 NZD
Regular price Sale price $208.03 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

Inductive Sensor, NBB8-18GM30-E2 / 326161-0096

  • 8 mm flush.
  • Increased operating distance.
  • Extended temperature range -40 ... +85 °C.
  • Extended operating voltage range.
  • Flexible use with versatile mounting opportunities.

Details: NBB8-18GM30-E2 / 326161-0096

Compatible Part Numbers:

326161-0096

NBB8-18GM30-E2

87745

Technical Data Sheet:

Datasheet excerpt: Technical data of  NBB8-18GM30-E2 / PF 326161-0096

General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance 8 mm
Installation flush
Output polarity DC
Assured operating distance 0 ... 6.48 mm
Actuating element mild steel, e. g. 1.0037, SR235JR (formerly St37-2)
24 mm x 24 mm x 1 mm
Reduction factor rAl 0.38
Reduction factor rCu 0.35
Reduction factor r304 0.74
Reduction factor rBrass 0.47
Output type 3-wire
Nominal ratings
Operating voltage 5 ... 36 V
Switching frequency 0 ... 1350 Hz
Hysteresis typ. 5 %
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 1 V
Operating current 0 ... 200 mA
Off-state current max. 20 µA
No-load supply current ≤ 10 mA
Time delay before availability ≤ 10 ms
Switching state indicator LED, yellow
Functional safety related parameters
MTTFd 1721 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Conformity
PWIS conformity VDMA 24364-C1/T100°C-W
Compliance with standards and directives
Standard conformity
Standards EN 60947-5-2:2007
EN 60947-5-2/A1:2012
IEC 60947-5-2:2007
IEC 60947-5-2 AMD 1:2012
Approvals and certificates
Protection class II
Rated insulation voltage 36 V
Rated impulse withstand voltage 500 V
UL approval cULus Listed, General Purpose, Class 2 Power Source
CCC approval CCC approval / marking not required for products rated ≤36 V
Marine approval DNVGL TAA00003AK
Ambient conditions
Ambient temperature -40 ... 85 °C (-40 ... 185 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type cable
Housing material brass , white bronze coated
Sensing face PBT , green
Degree of protection IP68
Cable
Wire end ferrules yes
Cable diameter 4.3 mm ± 0.15 mm
Bending radius > 10 x cable diameter
Material PVC
Color black
Number of cores 3
Core cross section 0.34 mm2
Length 2 m
Mass 98 g
Dimensions
Length 31 mm
Diameter 18 mm
Mounting with nuts, M18
Tightening torque 0 ... 30 Nm
General information
Scope of delivery 2 self locking nuts in scope of delivery


Classifications

System Classcode
ECLASS 13.0 27274001
ECLASS 12.0 27274001
ECLASS 11.0 27270101
ECLASS 10.0.1 27270101
ECLASS 9.0 27270101
ECLASS 8.0 27270101
ECLASS 5.1 27270101
ETIM 9.0 EC002714
ETIM 8.0 EC002714
ETIM 7.0 EC002714
ETIM 6.0 EC002714
ETIM 5.0 EC002714
UNSPSC 12.1 39121550
