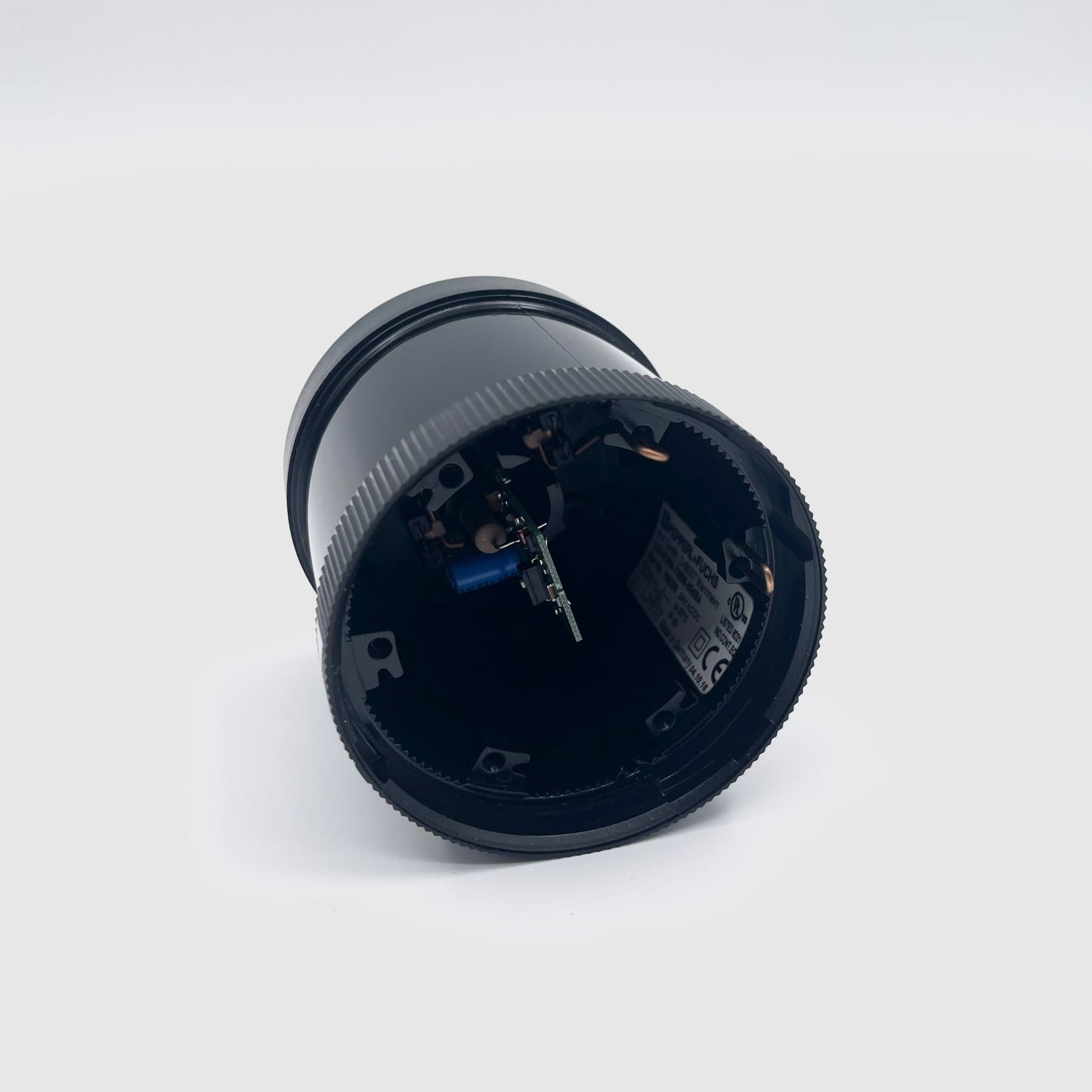

VAZ-HORN-70MM-85DBA / PF 196238 - Stack Light Audible Alarm
VAZ-HORN-70MM-85DBA / PF 196238 - Stack Light Audible Alarm
Regular price
$157.61 NZD
Regular price
Sale price
$157.61 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Stack Light Audible Alarm, VAZ-HORN-70MM-85DBA / PF 196238
- Modular design
- Bayonet system for simple mounting and dismounting
- 70-mm-series
Details: VAZ-HORN-70MM-85DBA / PF 196238
Compatible Part Numbers:
196238
VAZ-HORN-70MM-85DBA
70123959
VAZ-HORN1-70MM-85DBA
Technical Data Sheet:
Datasheet excerpt: Technical data of VAZ-HORN-70MM-85DBA / PF 196238
| General specifications | ||
|---|---|---|
| UL File Number | E223176 | |
| Color | black | |
| Frequency | 1.75 kHz Duration/pulse | |
| Functional safety related parameters | ||
| MTTFd | 4600 a | |
| Electrical specifications | ||
| Rated operating voltage | 24 V AC/DC | |
| Rated operating current | ≤ 25 mA | |
| Inrush current | 450 mA (< 50 ms) | |
| Ambient conditions | ||
| Ambient temperature | -20 ... 50 °C (-4 ... 122 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | Bayonet system | |
| Dimensions | ||
| Height | 72 mm | |
| Diameter | 70 mm | |
| Life span | min. 5000 hours | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27371214 |
| ECLASS 12.0 | 27371214 |
| ECLASS 11.0 | 27371214 |
| ECLASS 10.0.1 | 27371214 |
| ECLASS 9.0 | 27371214 |
| ECLASS 8.0 | 27371214 |
| ECLASS 5.1 | 27371214 |
| ETIM 9.0 | EC001026 |
| ETIM 8.0 | EC001026 |
| ETIM 7.0 | EC001026 |
| ETIM 6.0 | EC001026 |
| ETIM 5.0 | EC001026 |
| UNSPSC 12.1 | 39121533 |
1 in stock
