PF BIN 05NPN (NO)

NBB1,5-F79-E0 / PF 800000 - Inductive Sensor

Name: NBB1,5-F79-E0 / PF 800000 - Inductive Sensor
Brand: Pepperl Fuchs
Price: 142.39 NZD
Availability: InStock

$142.39 NZD

Sale Sold out

Shipping calculated at checkout.

Price (exc. GST) each

Product variants

Quantity

Inductive Sensor, NBB1,5-F79-E0 / PF 800000

Details: NBB1,5-F79-E0 / PF 800000

Compatible Part Numbers:

800000

NBB1,5-F79-E0

Technical Data Sheet:

Datasheet excerpt: Technical data of NBB1,5-F79-E0 / PF 800000

General specifications
Switching function		Normally open (NO)
Output type		NPN
Rated operating distance		1.5 mm
Installation		flush
Output polarity		DC
Assured operating distance		0 ... 1.215 mm
Reduction factor r_Al		0.3
Reduction factor r_Cu		0.2
Reduction factor r₃₀₄		0.7

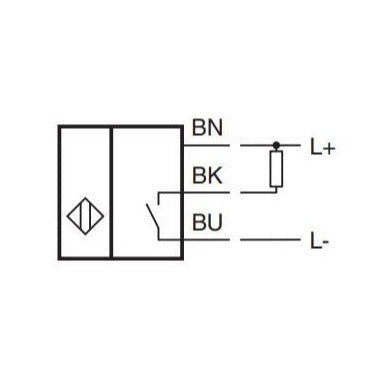

Output type		3-wire
Nominal ratings
Operating voltage		5 ... 30 V DC
Switching frequency		0 ... 1200 Hz
Hysteresis		typ. 5 %
Short-circuit protection		pulsing
Voltage drop		≤ 1.5 V
Operating current		0 ... 100 mA
Off-state current		≤ 10 µA
No-load supply current		≤ 15 mA
Time delay before availability		≤ 20 ms
Functional safety related parameters
MTTF_d		4830 a
Mission Time (T_M)		20 a
Diagnostic Coverage (DC)		0 %
Compliance with standards and directives
Standard conformity
	Standards	EN 60947-5-2:2007 IEC 60947-5-2:2007
Approvals and certificates
UL approval		cULus Listed, General Purpose
CCC approval		CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Connection type		flexible leads PVC , 500 mm
Core cross section		0.08 mm²
Housing material		PA
Sensing face		PA
Degree of protection		IP67
Dimensions
	Height	4.7 mm
	Width	8 mm
	Length	16 mm

Classifications
