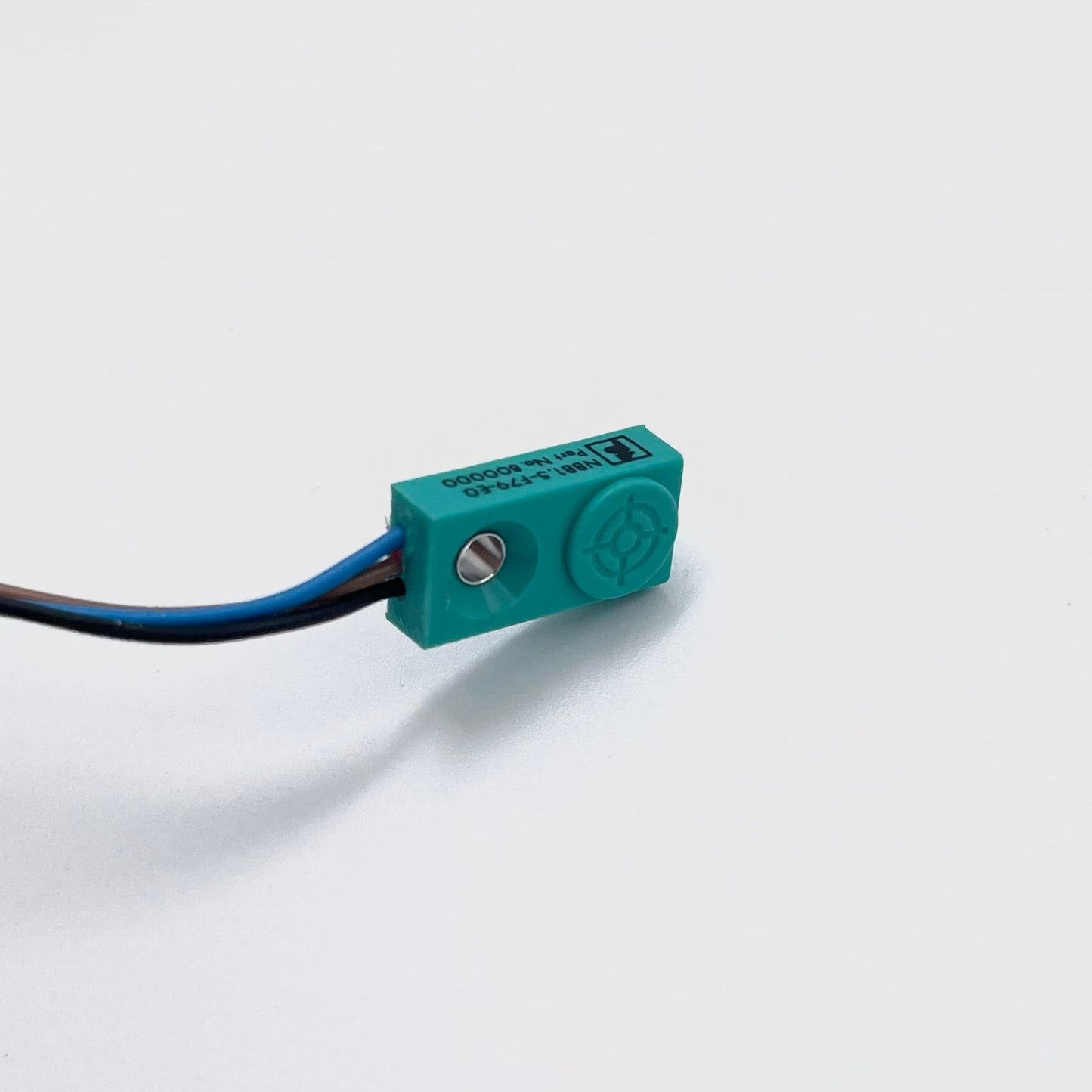

NBB1,5-F79-E2 / PF 800001 - Inductive Sensor
NBB1,5-F79-E2 / PF 800001 - Inductive Sensor
Regular price
$142.39 NZD
Regular price
Sale price
$142.39 NZD
Unit price
/
per
Inductive Sensor, NBB1,5-F79-E2 / PF 800001
- Basic series.
- 1.5 mm flush.
- 3-wire DC.
Details: NBB1,5-F79-E2 / PF 800001
Compatible Part Numbers:
800001
NBB1,5-F79-E2
Technical Data Sheet:
Datasheet excerpt: Technical data of NBB1,5-F79-E2 / PF 800001
General specifications | ||
---|---|---|
Switching function | Normally open (NO) | |
Output type | PNP | |
Rated operating distance | 1.5 mm | |
Installation | flush | |
Output polarity | DC | |
Assured operating distance | 0 ... 1.215 mm | |
Reduction factor rAl | 0.3 | |
Reduction factor rCu | 0.2 | |
Reduction factor r304 | 0.7 | |
Output type | 3-wire | |
Nominal ratings | ||
Operating voltage | 5 ... 30 V DC | |
Switching frequency | 0 ... 1200 Hz | |
Hysteresis | typ. 5 % | |
Short-circuit protection | pulsing | |
Voltage drop | ≤ 1.5 V | |
Operating current | 0 ... 100 mA | |
Off-state current | ≤ 10 µA | |
No-load supply current | ≤ 15 mA | |
Time delay before availability | ≤ 20 ms | |
Functional safety related parameters | ||
MTTFd | 4830 a | |
Mission Time (TM) | 20 a | |
Diagnostic Coverage (DC) | 0 % | |
Compliance with standards and directives | ||
Standard conformity | ||
Standards | EN 60947-5-2:2007 IEC 60947-5-2:2007 |
|
Approvals and certificates | ||
UL approval | cULus Listed, General Purpose | |
CCC approval | CCC approval / marking not required for products rated ≤36 V | |
Ambient conditions | ||
Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
Mechanical specifications | ||
Connection type | flexible leads PVC , 500 mm | |
Core cross section | 0.08 mm2 | |
Housing material | PA | |
Sensing face | PA | |
Degree of protection | IP67 | |
Dimensions | ||
Height | 4.7 mm | |
Width | 8 mm | |
Length | 16 mm |
Classifications
System | Classcode |
---|---|
ECLASS 13.0 | 27274001 |
ECLASS 12.0 | 27274001 |
ECLASS 11.0 | 27270101 |
ECLASS 10.0.1 | 27270101 |
ECLASS 9.0 | 27270101 |
ECLASS 8.0 | 27270101 |
ECLASS 5.1 | 27270101 |
ETIM 9.0 | EC002714 |
ETIM 8.0 | EC002714 |
ETIM 7.0 | EC002714 |
ETIM 6.0 | EC002714 |
ETIM 5.0 | EC002714 |
UNSPSC 12.1 | 39121550 |
1 in stock
