PF BIN 19

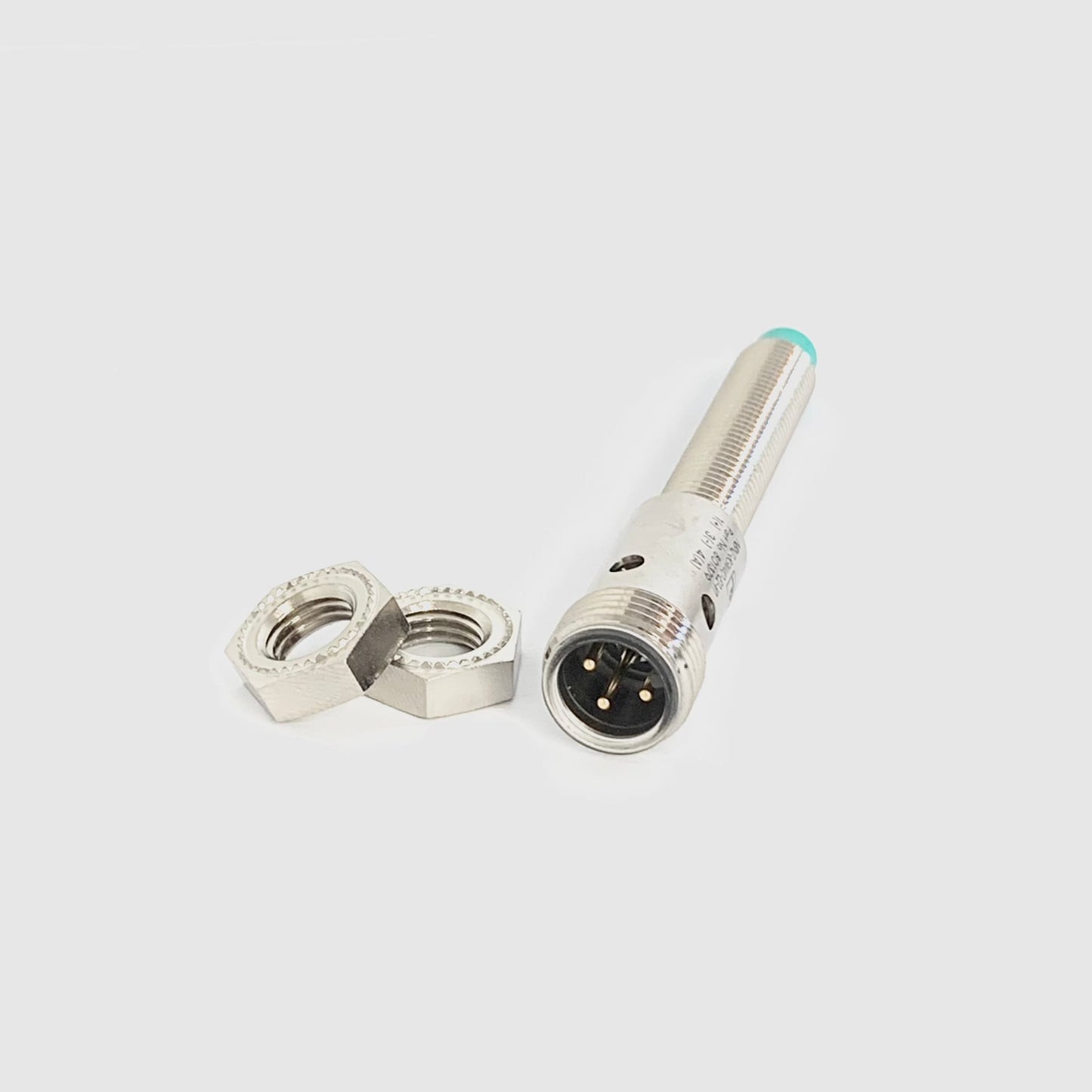

PF 801379 - Inductive Sensor

PF 801379 - Inductive Sensor

Regular price $139.94 NZD
Regular price Sale price $139.94 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

Inductive sensor, 801379

  • Basic series

Details : 801379

Compatible Part Numbers :

801379

NBN2-8GM40-E2-V1

Technical Data Sheet :

Datasheet excerpt: Technical data of  NBN2-8GM40-E2-V1

General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance 2 mm
Installation non-flush
Output polarity DC
Assured operating distance 0 ... 1.62 mm
Reduction factor rAl 0.45
Reduction factor rCu 0.35
Reduction factor r304 0.75

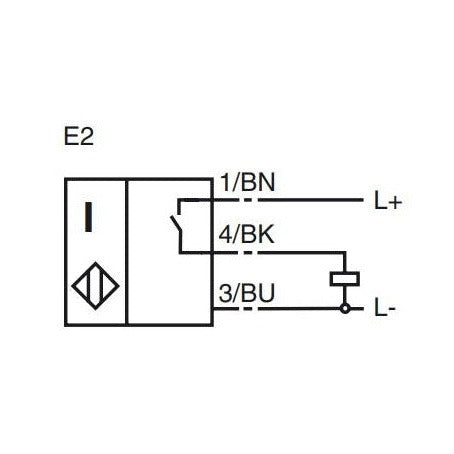

Output type 3-wire
Nominal ratings
Operating voltage 10 ... 30 V
Switching frequency 0 ... 1500 Hz
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 3 V
Operating current 0 ... 100 mA
Off-state current 0 ... 0.5 mA typ. 0.1 µA at 25 °C
No-load supply current ≤ 15 mA
Switching state indicator Multihole-LED, yellow
Standard conformity
Standards IEC / EN 60947-5-2:2004
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Housing material brass, nickel-plated
Sensing face PBT
Degree of protection IP67
Dimensions
Length 40 mm
Diameter 8 mm



Classifications

System Classcode
ECLASS 13.0 27274001
ECLASS 12.0 27274001
ECLASS 11.0 27270101
ECLASS 10.0.1 27270101
ECLASS 9.0 27270101
ECLASS 8.0 27270101
ECLASS 5.1 27270101
ETIM 9.0 EC002714
ETIM 8.0 EC002714
ETIM 7.0 EC002714
ETIM 6.0 EC002714
ETIM 5.0 EC002714
UNSPSC 12.1 39121550

2 in stock
