PF 04

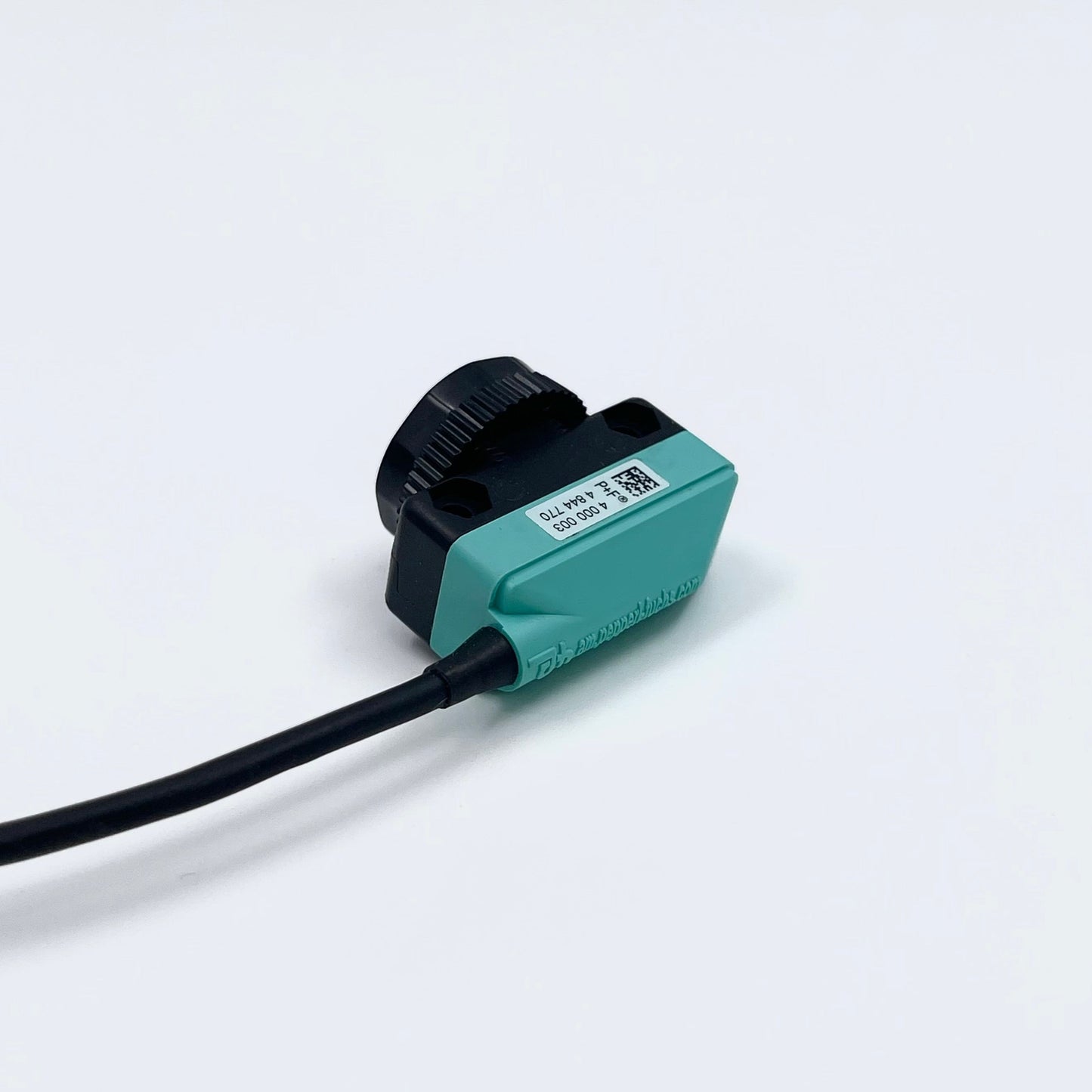

ML17-8-H-100-RT/115/136 / PF 905787 - Background Supression Sensor

ML17-8-H-100-RT/115/136 / PF 905787 - Background Supression Sensor

Regular price $304.33 NZD
Regular price Sale price $304.33 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

Background Suppression Sensor, ML17-8-H-100-RT/115/136  /  PF 905787

  • Compact, versatile housing
  • 360° high visibility LEDs
  • Very low color sensitivity
  • Front mounting with M18-threads or side mounting holes
  • Sturdy, waterproof plastic housing
  • Tamper-proof version with no adjustments

Details: ML17-8-H-100-RT/115/136  /  PF 905787

Background suppression sensor.

Compatible Part Numbers:

905787

ML17-8-H-100-RT/115/136

Technical Data Sheet:

Datasheet excerpt: Technical data of  ML17-8-H-100-RT/115/136  / PF 905787

General specifications
Detection range 10 ... 100 mm
Background suppression starts from 125 mm
Reference target standard black, 100 mm x 100 mm
Light source LED
Light type modulated visible red light , 640 nm
Black-white difference (6 %/90 %) ≤ 15 %
Diameter of the light spot ≤ 6 mm at 100 mm
Opening angle ≤ 4 °
Ambient light limit ≤ 40000 Lux
Indicators/operating means
Operation indicator green LED , solid : Power on
green LED , flashing: Short circuit/overload indication
Function indicator LED yellow, lights up with receiver lit
Electrical specifications
Operating voltage 10 ... 30 V DC , class 2
Ripple max. 10 %
No-load supply current < 30 mA
Time delay before availability ≤ 100 ms
Output
Switching type light/dark on
Signal output 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected
Switching voltage max. 30 V DC
Switching current max. 100 mA
Voltage drop ≤ 2.5 V DC
Switching frequency 500 Hz
Response time ≤ 1 ms
Conformity
Product standard EN 60947-5-2
Approvals and certificates
EAC conformity TR CU 020/2011
UL approval cULus
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -20 ... 55 °C (-4 ... 131 °F)
Storage temperature -20 ... 70 °C (-4 ... 158 °F)
Mechanical specifications
Degree of protection IP67
Connection 2 m PVC cable
Material
Housing ABS
Optical face Acrylic
Mass approx. 40 g
Dimensions
Height 34.5 mm
Width 15 mm
Length 29.3 mm



Classifications

System Classcode
ECLASS 13.0 27270903
ECLASS 12.0 27270903
ECLASS 11.0 27270904
ECLASS 10.0.1 27270904
ECLASS 9.0 27270904
ECLASS 8.0 27270904
ECLASS 5.1 27270904
ETIM 9.0 EC002719
ETIM 8.0 EC002719
ETIM 7.0 EC002719
ETIM 6.0 EC002719
ETIM 5.0 EC002719
UNSPSC 12.1 39121528

1 in stock
