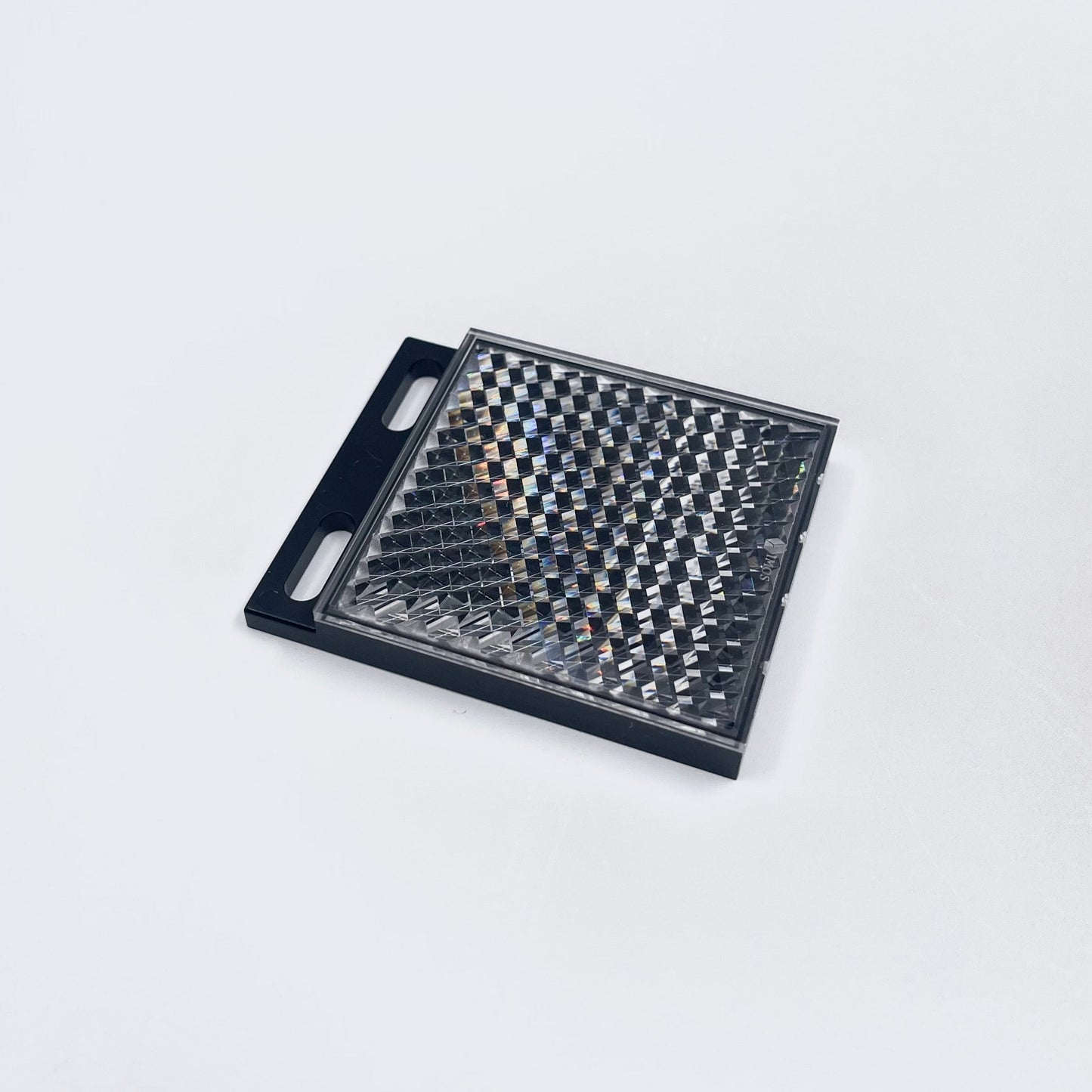

Reflector, REF-H50 / PF 123120
- Mounting holes for simple installation.
Details: REF-H50 / PF 123120
Reflector, rectangular 51 mm x 61 mm, mounting holes, fixing strap.
Compatible Part Numbers:
123120
REF-H50
Technical Data Sheet:
Datasheet excerpt: Technical data of REF-H50 / PF 123120
| General specifications | ||
|---|---|---|
| Construction type | rectangular | |
| Ambient conditions | ||
| Ambient temperature | -30 ... 60 °C (-22 ... 140 °F) | |
| Mechanical specifications | ||
| Material | PMMA/ABS | |
| Dimensions | 51 mm x 61 mm x 8 mm | |
| Height | 61 mm | |
| Width | 51 mm | |
| Mounting | mounting holes | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273601 |
| ECLASS 12.0 | 27273601 |
| ECLASS 11.0 | 27273601 |
| ECLASS 10.0.1 | 27273601 |
| ECLASS 9.0 | 27273601 |
| ECLASS 8.0 | 27279203 |
| ECLASS 5.1 | 27279203 |
| ETIM 9.0 | EC002467 |
| ETIM 8.0 | EC002467 |
| ETIM 7.0 | EC002467 |
| ETIM 6.0 | EC002467 |
| ETIM 5.0 | EC002467 |
| UNSPSC 12.1 | 39111818 |
