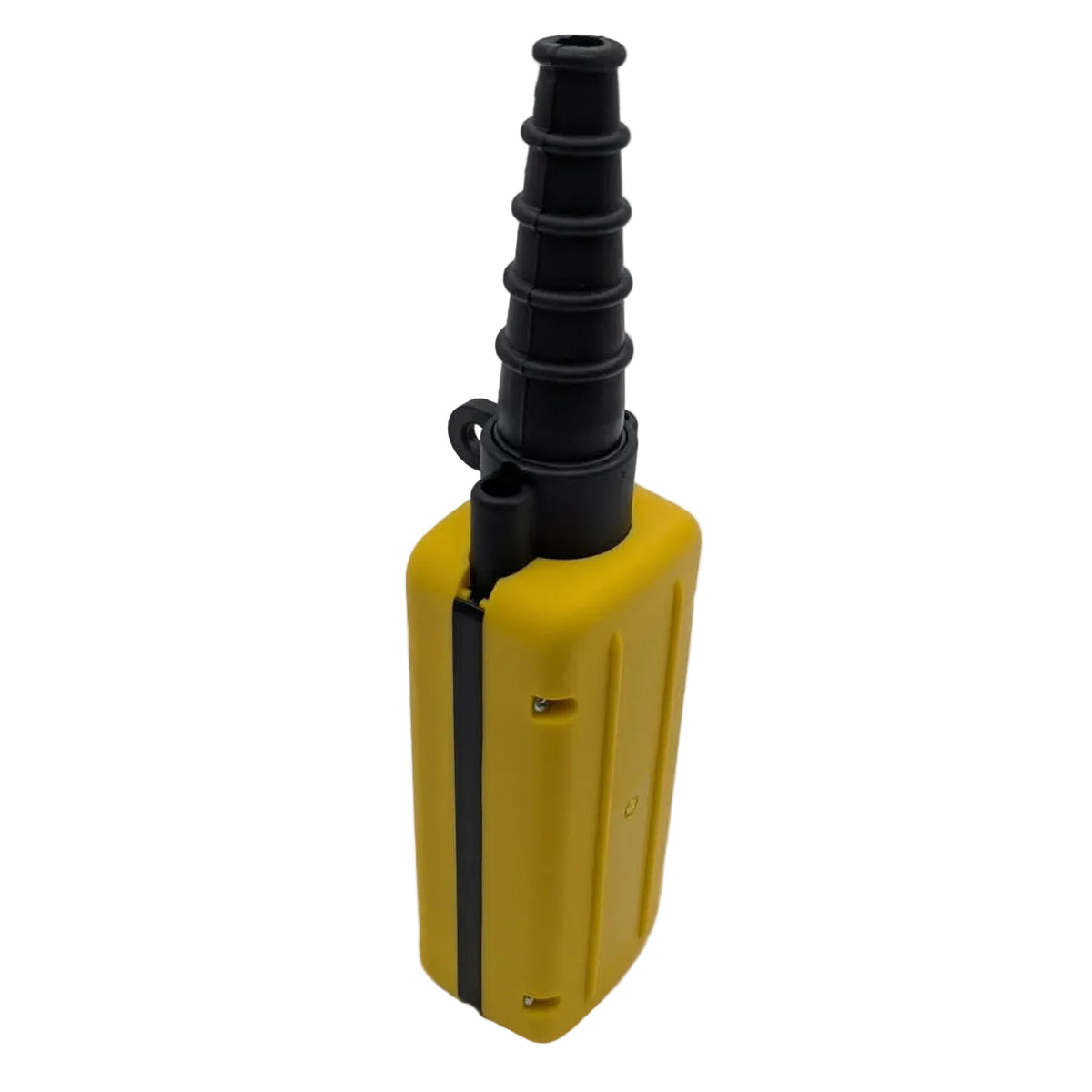

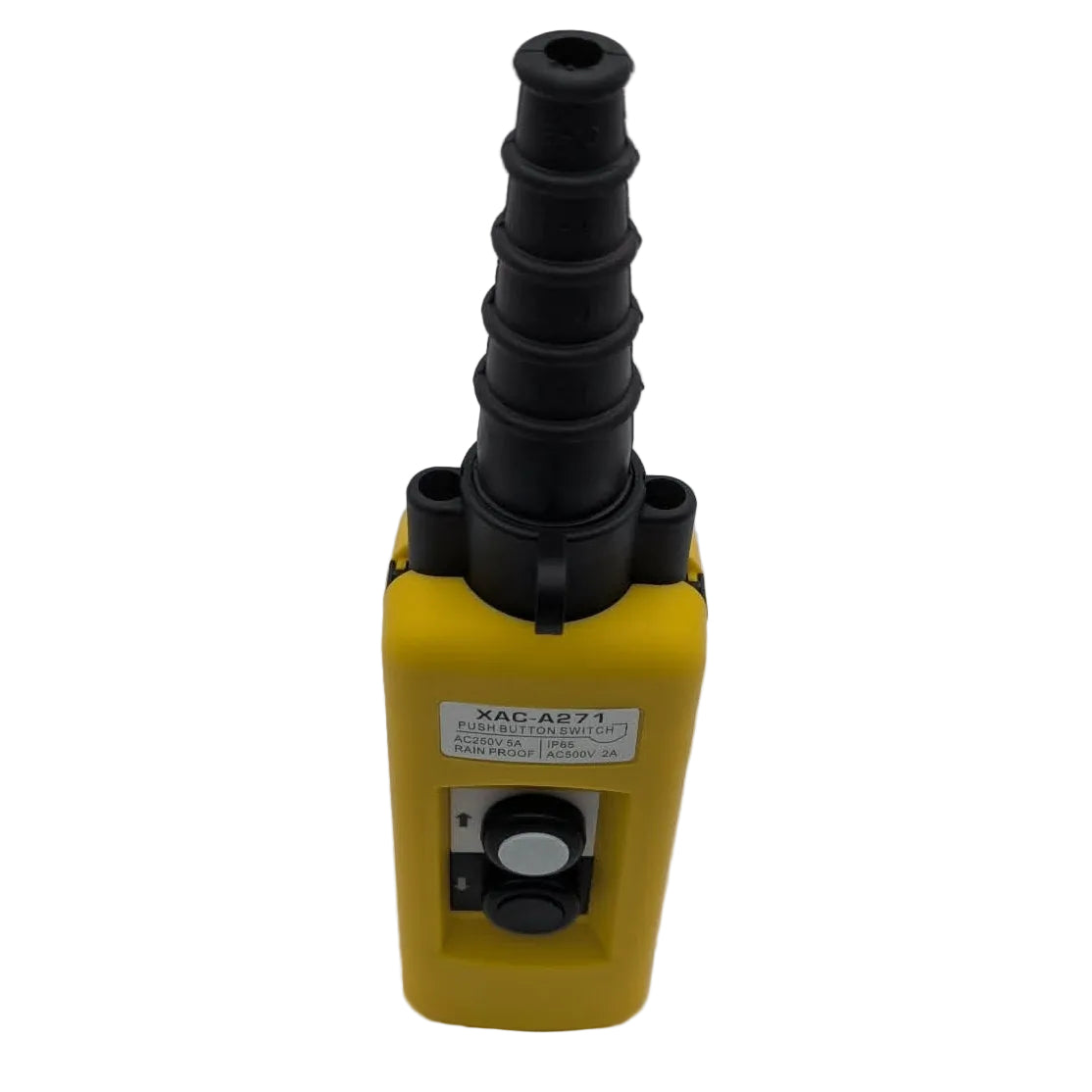

Push Button Switch XAC-A271

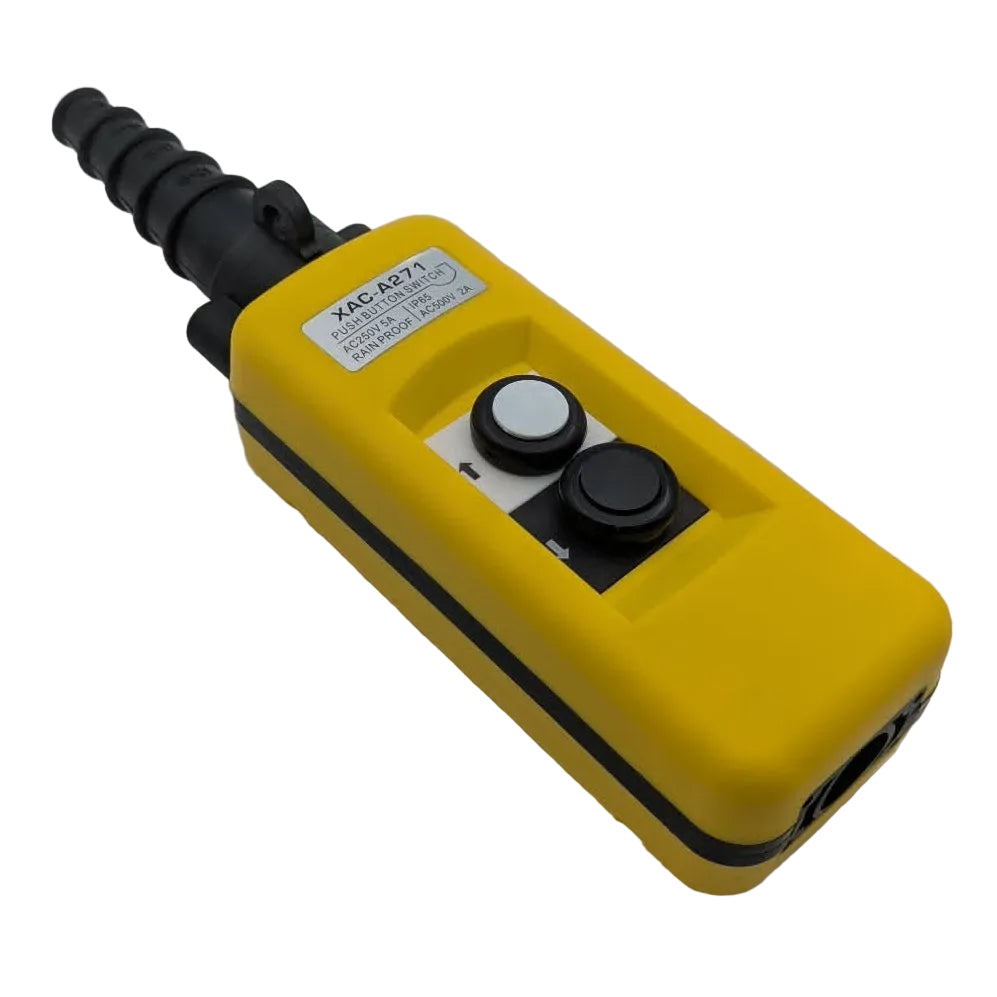

XAC-A271 2-Button Pendant Control Station - Crane & Hoist Push Button Switch

Model: XAC-A271 (XACA271)
Series: Harmony XAC Heavy-Duty Pendant Stations

Application & Function:
Designed specifically for the precise control of single-speed hoist motors, overhead cranes, tail lifts, and industrial automation systems. Features two mechanically interlocked push buttons to prevent conflicting directional signals (e.g., simultaneous Up/Down commands).

Contact Configuration:
Equipped with a 2 NO (Normally Open) configuration (1 NO contact block per button) utilizing reliable slow-break mechanisms.

Electrical & Contact Ratings:
• Conventional Enclosed Thermal Current (Ith): 10A
• Rated Operational Current (Ie): Optimized for industrial control circuits (AC-15 / DC-13 utilization categories). Safe load-switching capacity is rated at 3A at 240V AC and 1.2A at 600V AC.
• Contact Designation Code: A600 - Q600 standard industrial control rating.

Terminal & Wiring:
Features standard industrial screw clamp terminals accommodating flexible or solid wire gauges from 0.5mm² to 2.5mm² for straightforward, secure installations.

Enclosure & Mechanical Durability:
Constructed from a robust, double-insulated yellow polypropylene housing that provides high visual contrast and safety visibility in dark environments. Impact-resistant and stain-resistant, it offers a mechanical lifespan of up to 1,000,000 cycles.

Protection & Reliability: Complete weatherproof protection with an IP65 rating, ensuring the internal electronics remain completely isolated from dust, oil, and moisture splashes in harsh industrial environments. Features high shock resistance conforming to IEC 68-2-27.

Environmental Resistance: Formulated to operate seamlessly across a broad temperature span from -25°C up to 70°C, making it ideal for both cold storage facilities and high-heat manufacturing bays.

Compliance: Manufactured to meet rigorous international industrial safety and environmental standards, including CE, IEC, and RoHS compliance.

Dimensions:
70x80x314mm (Approximate outer footprint including flexible protective cable entry sleeve)

XAC Series Technical Manual:

Compatible Part Numbers:
XAC-A271, XACA271
