R-SAFE RFID PLUS C S T P - Safety Devices
R-SAFE RFID PLUS C S T P - Safety Devices
Regular price
$260.00 NZD
Regular price
Sale price
$260.00 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

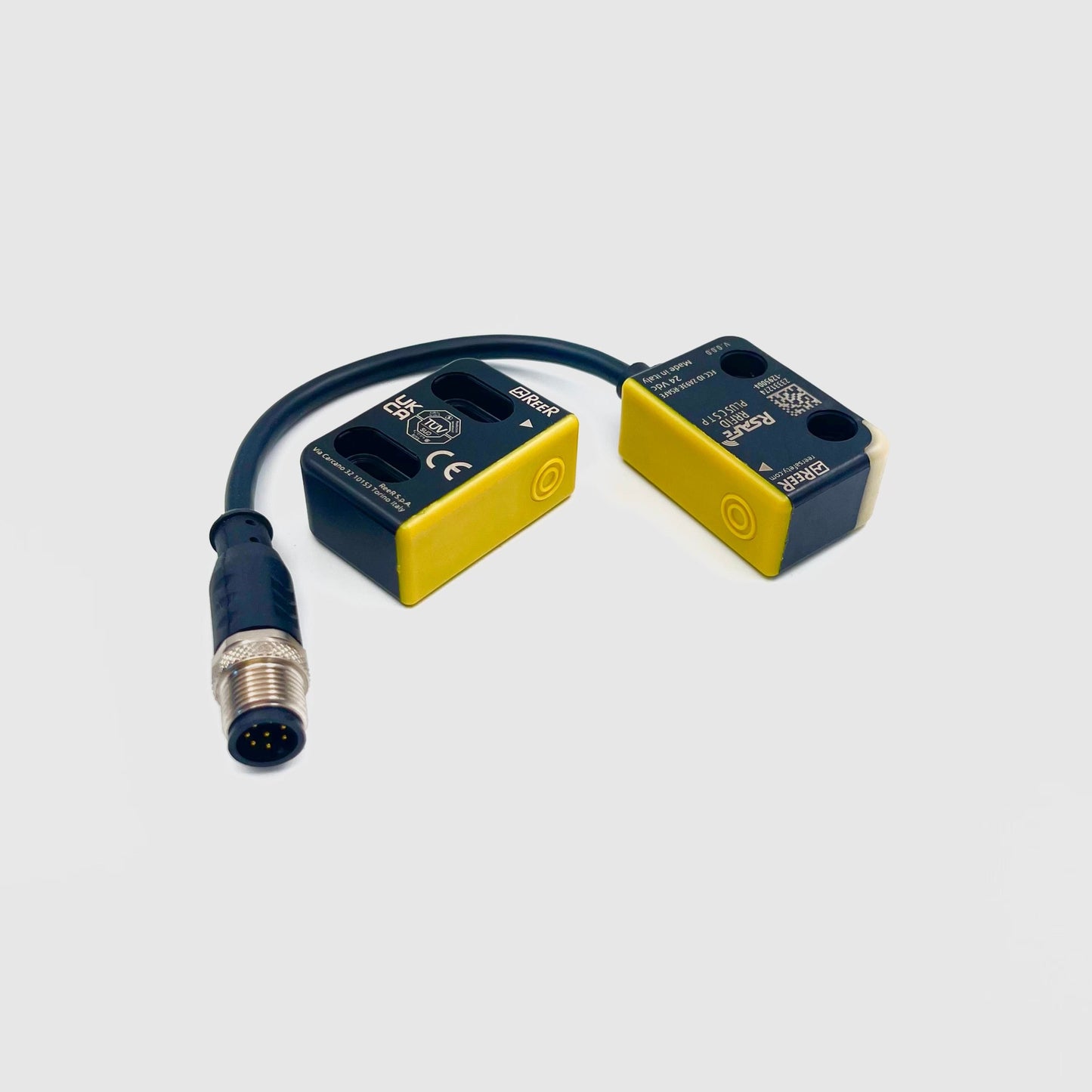

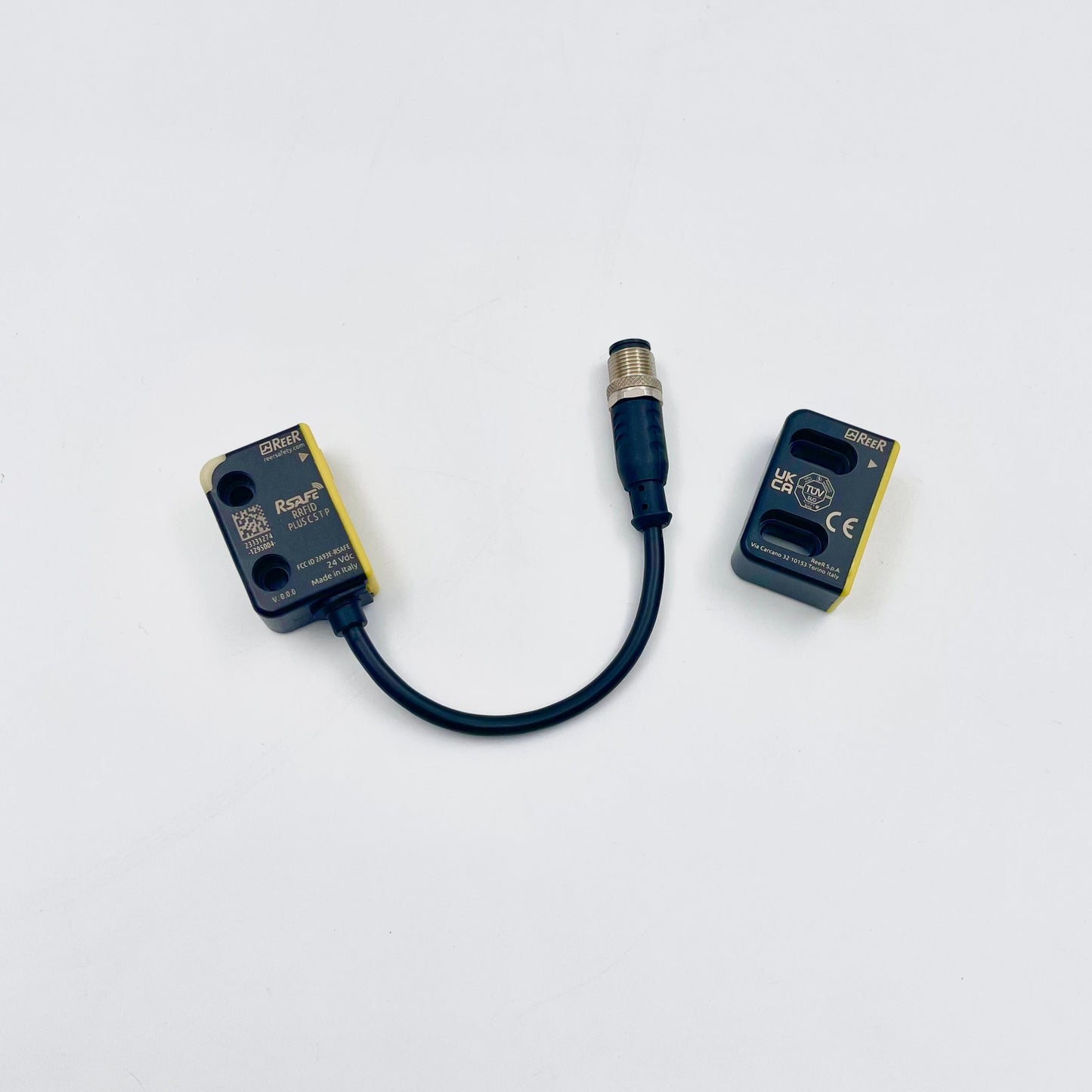

R-SAFE RFID PLUS C S T P
RFID switch door switch, guarding switch, robot safety switch, enclosure closed safety monitor. Plus Version. Combo. Interaxis 22 mm. Standard Actuator. Teach-In coding. Manual/Automatic restart. M12 Pigtail.
Replace your magnetic safety switches with a RFID safety switch.
12 ... 25 Switching Distance (mm)
Compatible Part numbers:
1295004
1292000
Details:
| Safety level | PL e |
| Safety inputs | 2 digital inputs |
| Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C) | - 25 ... 70 |
| Response time (ms) | 55 |
| Sensor type | RFID switches |
| Safety output type | 2 OSSD (300 mA at 24 VDC) with protection against short circuit |
| PFHD (IEC 61508) | 3,58E-09 |
| Materials suitable for food applications | Yes |
| Min. switching current at 24 VDC (mA) | 300 |
| Safety outputs | 2 OSSD pairs (300 mA) |
| Test outputs | 1 |
| LED signalling | 3 colour LED status signalling |
| Coding type | Individual coding |
| Product class | C |
| Custom tariff | 9032890 |
| Connection type | Pigtail |
Electrical Data :
| Power supply (VDC) | 24 ± 20% |
| Connector | Pigtail M12 8-pole Male |
Mechanical Data :
| Dimensions HxWxD (mm) | 28,5 x 50 x 18 |
| Degree of protection | IP67 - IP69K (connector excluded) |
| Fastening | M4 screws (e.g. M4 x 20) |
| Housing | Polyketone (POK) / rectangular |
| Switching distance (mm) | 12 … 25 |
| Size | 22 mm interaxis |
Quick Setup Manual:
Installation Manual:
2 in stock
