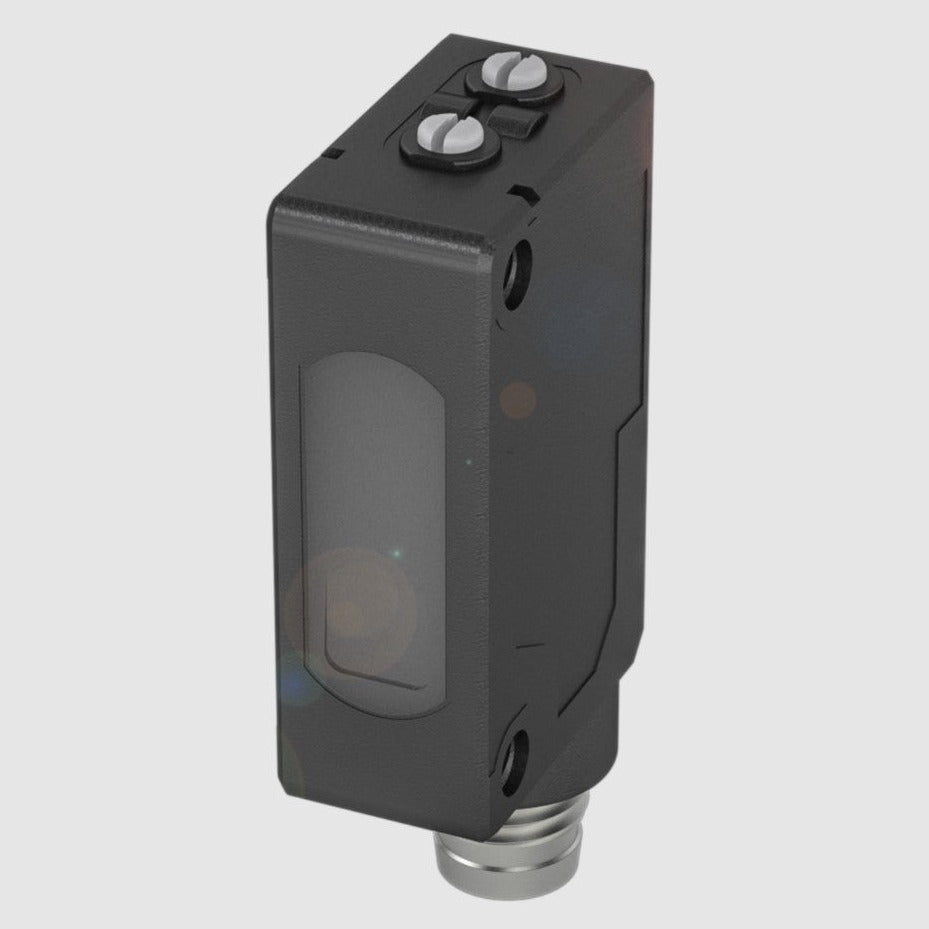

Balluff - NPN (NO/NC) - Diffuse Sensor BOS01K0
Balluff - NPN (NO/NC) - Diffuse Sensor BOS01K0
Regular price
$294.49 NZD
Regular price
Sale price
$294.49 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Diffuse Sensor
NPN (NO/NC) M8 4pin Sn: 20-300mm
Compatible Part Numbers:
BOS01K0
Typecode / BOS 5K-NU-LH12-S75
Technical Data Of: BOS01K0
| Series | 5K |
| Dimension |
10.8 x 43.5 x 19.5 mm
|
| Interface |
NPN normally open/normally closed (NO/NC)
|
| Principle of operation |
Photoelectric sensor
|
| Principle of optical operation |
Diffuse sensor, triangulation
|
| Special optical feature |
Background suppression
|
| Beam characteristic |
Focus, typical at 260 mm
|
| Light type | Laser red light |
| Light spot size |
0.2 x 0.3 mm at focal point
|
| Range | 20...300 mm |

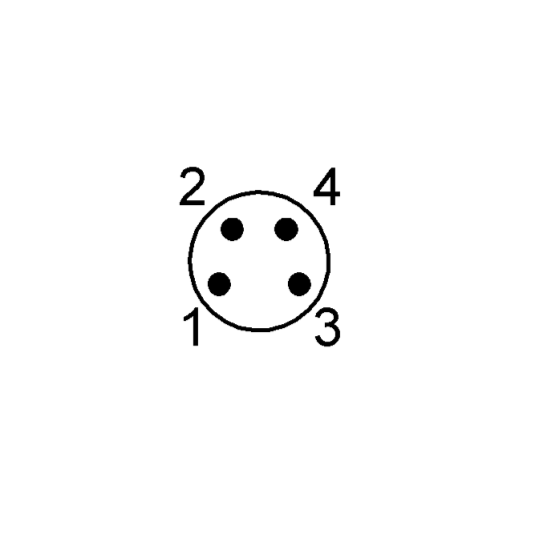

| Connection |
Connector, M8x1-Male, 4-pin
|
| Housing material | PC |
| PBT | |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | cULus |
| CE | |
| WEEE | |
| UKCA | |
| Trademark | Global |
Technical Data Sheet:
