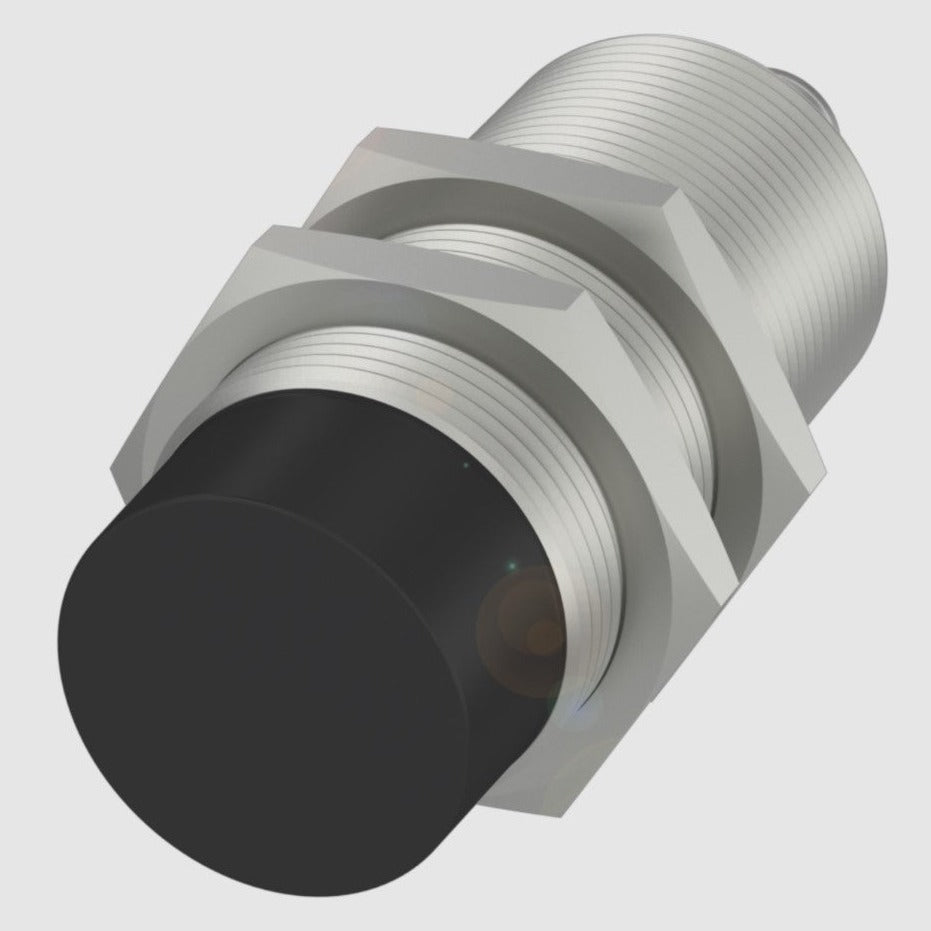

BES03RE - Inductive Standard Sensor

BES03RE - Inductive Standard Sensor

Regular price $124.10 NZD
Regular price Sale price $124.10 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

Inductive Standard Sensors

M30 PNP (NO) M12 Unsheilded Sn:30mm.

Compatible Part Numbers:


Typecode / BES M30MM-PSC30F-S04G

Technical Data Of: BES03RE

Dimension Ø 30 x 83 mm
Style Housing M30x1.5
Installation non-flush
Range 30 mm

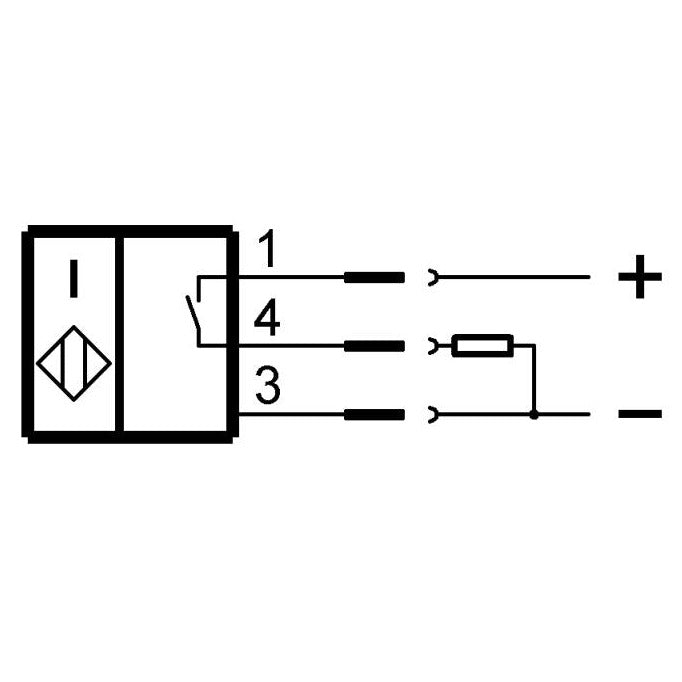

Switching output PNP normally open (NO)
Switching frequency 300 Hz
Housing material Brass, Nickel-free coated
Material sensing surface PBT

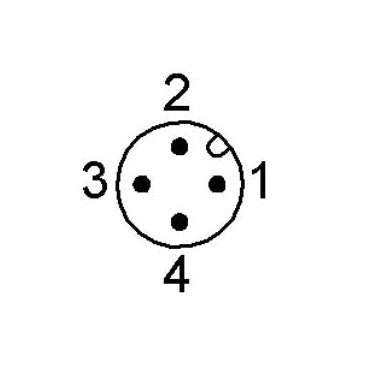

Connection Connector, M12x1-Male, 4-pin
Operating voltage Ub 10...30 VDC
Ambient temperature -25...70 °C
IP ratingIP67
Approval/Conformity cULus

Technical Data Sheet:

1 in stock
