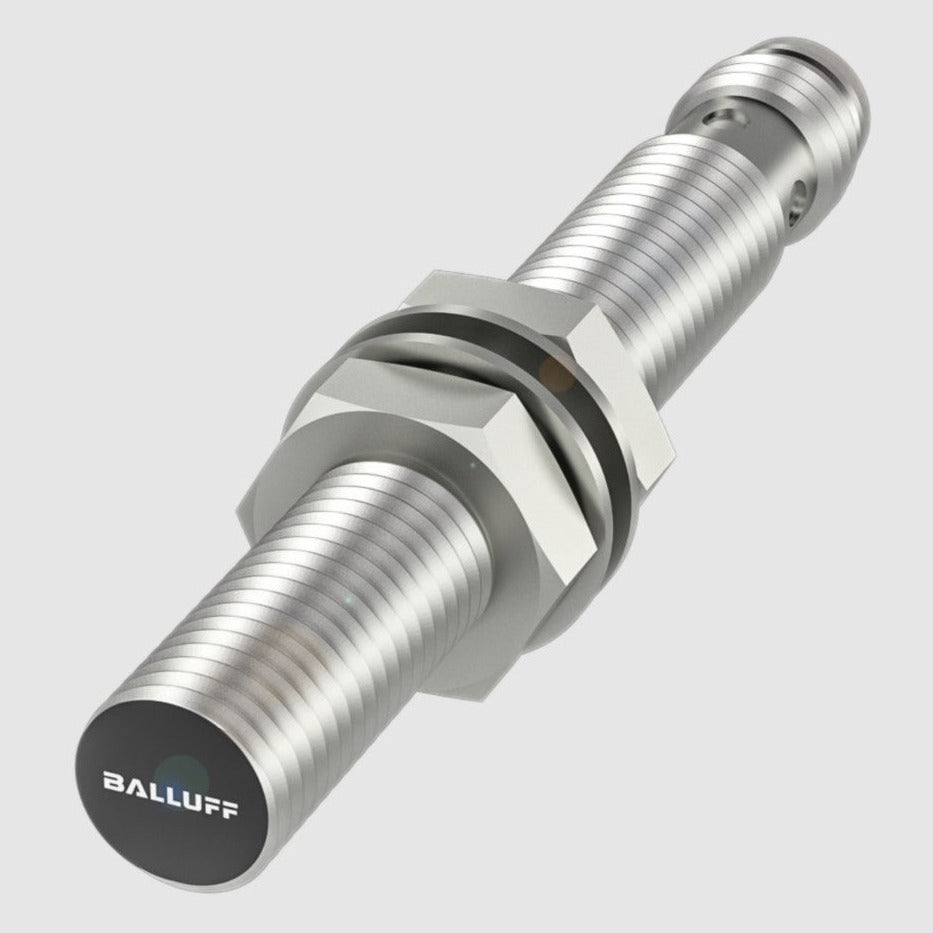

Balluff - M8 PNP (NO) - Inductive Sensor BES003P
Balluff - M8 PNP (NO) - Inductive Sensor BES003P
Regular price
$92.84 NZD
Regular price
Sale price
$92.84 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Inductive Sensor
M8 PNP (NO) M8 3pin Sheilded Sn: 2mm
Compatible Part Numbers:
BES003P
Typecode / BES M08MI-PSC20B-S49G
Technical Data Of: BES003P
| Dimension | Ø 8 x 60 mm |
| Style Housing | M8x1 |
| Installation | for flush mounting |
| Range | 2 mm |

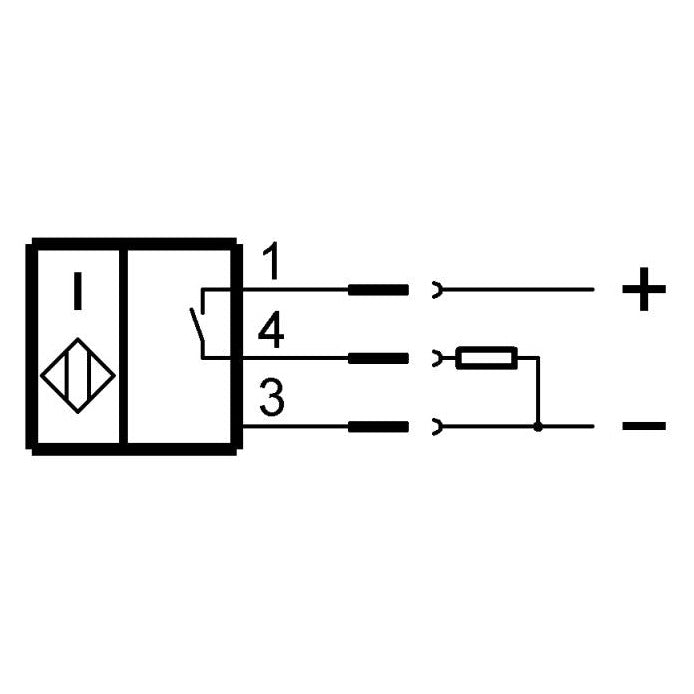

| Switching output | PNP normally open (NO) |
| Switching frequency | 5000 Hz |
| Housing material | Brass, Nickel-free coated |
| Material sensing surface | PBT |

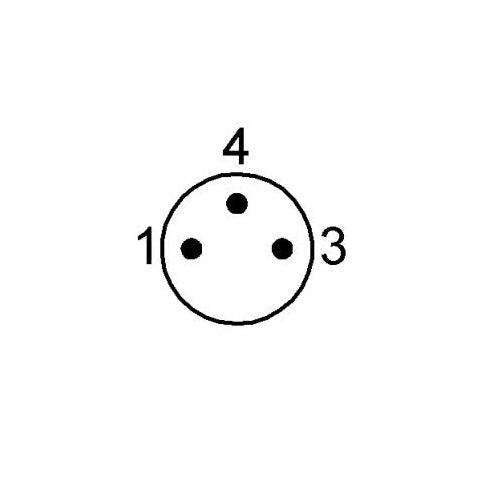

| Connection | Connector, M8x1-Male, 3-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP68 |
| Approval/Conformity | cULus |
| CE | |
| WEEE |
Technical Data Sheet:
3 in stock
