B03PNP (NO)

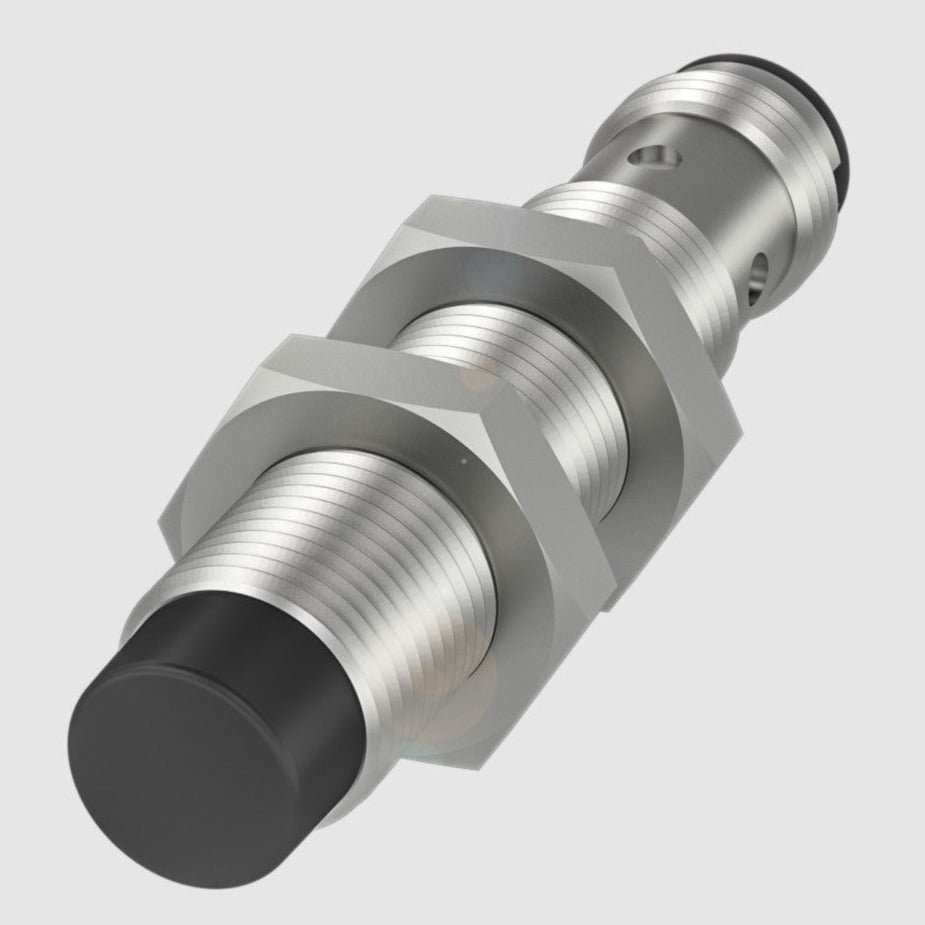

BES004N - M12 PNP (NO) - Inductive Sensor
BES004N - M12 PNP (NO) - Inductive Sensor
Regular price
$65.50 NZD
Regular price
Sale price
$65.50 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Inductive Standard Sensors
M12 PNP (NO) M12 Unsheilded Sn:8mm.
Compatible Part Numbers:
BES004N
Typecode / BES M12MG-PSC80F-S04G
Technical Data Of: BES004N
| Dimension | Ø 12 x 60 mm |
| Style Housing | M12x1 |
| Installation | non-flush |
| Range | 8 mm |

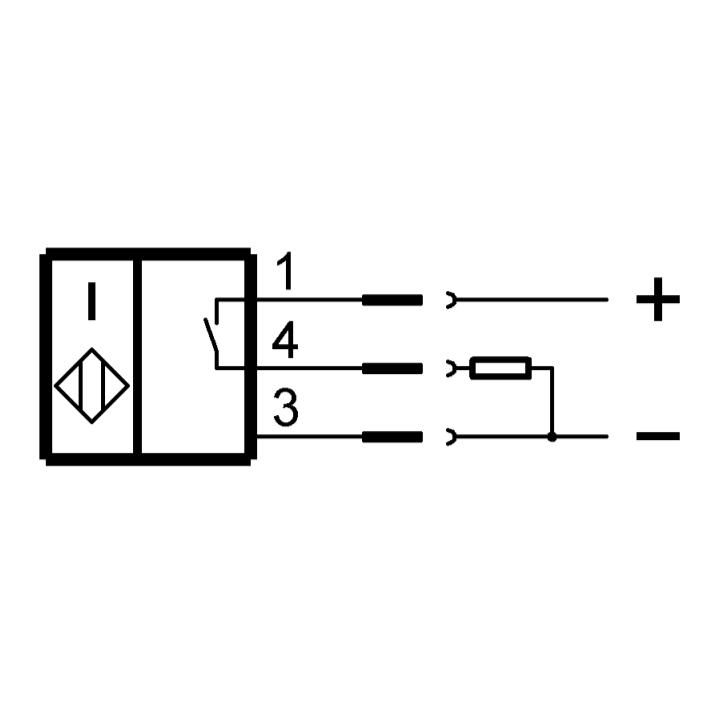

| Switching output | PNP normally open (NO) |
| Switching frequency | 1000 Hz |
| Housing material | Brass, Nickel-free coated |
| Material sensing surface | PBT |

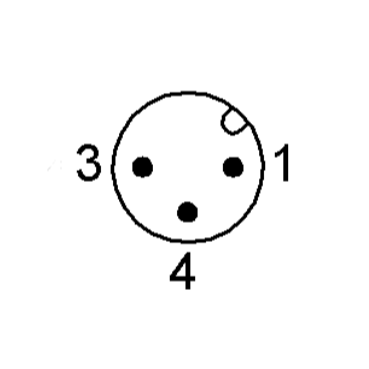

| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP68 |
| Approval/Conformity | CE |
| UKCA | |
| cULus | |
| WEEE |
Technical Data Sheet:
2 in stock
