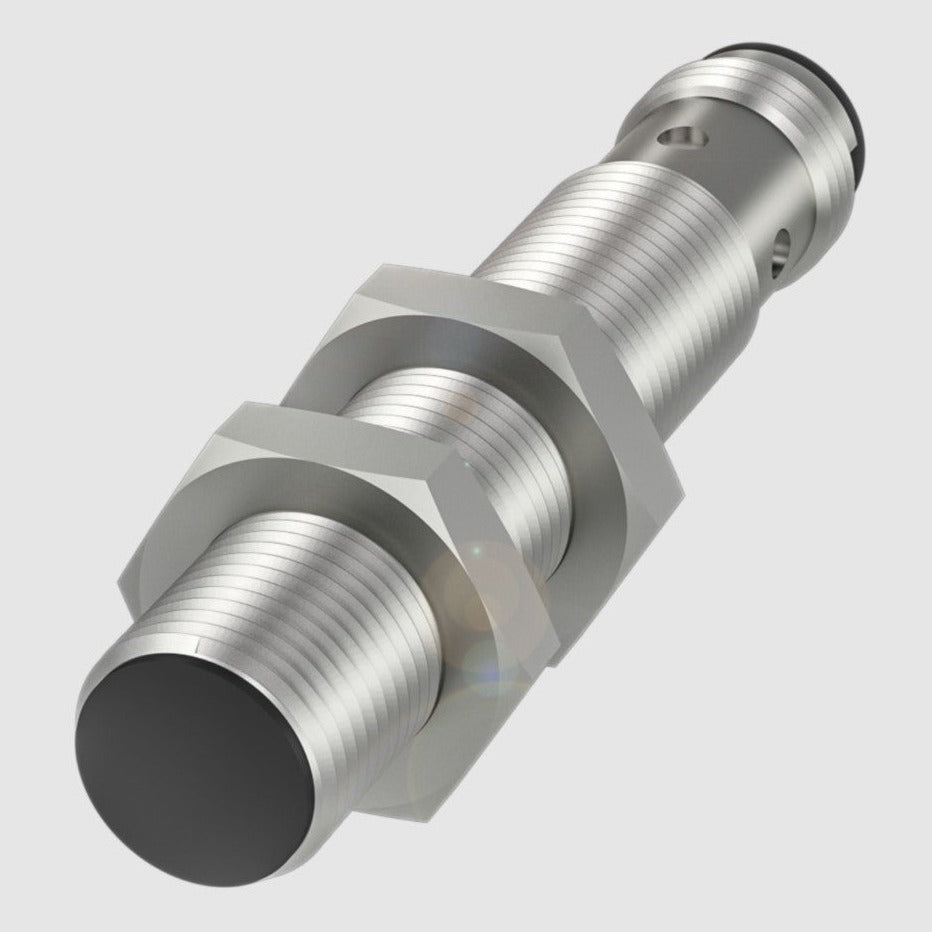

BES0059 - M12 NPN (NO) - Inductive Sensor

BES0059 - M12 NPN (NO) - Inductive Sensor

Regular price $65.50 NZD
Regular price Sale price $65.50 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

Inductive Standard Sensors

M12 NPN (NO) M12 Sheilded Sn:4mm.

Compatible Part Numbers:

BES0059

Typecode / BES M12MI-NSC40B-S04G

Tehnical Data Of: BES0059

Dimension Ø 12 x 65 mm
Style Housing M12x1
Installation for flush mounting
Range 4 mm

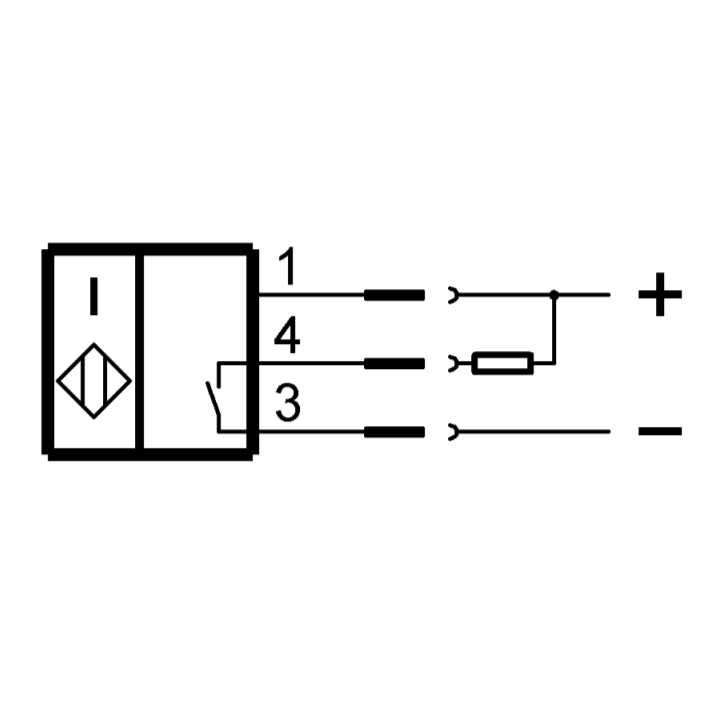

Switching output NPN normally open (NO)
Switching frequency 2500 Hz
Housing material Brass, Nickel-free coated
Material sensing surface PBT

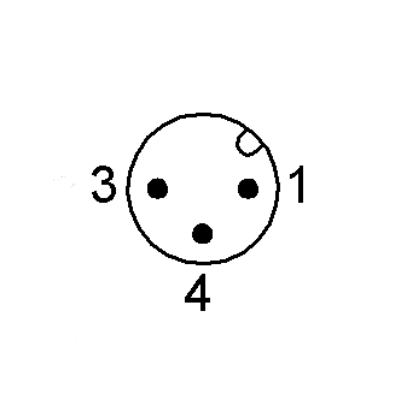

Connection Connector, M12x1-Male, 4-pin
Operating voltage Ub 10...30 VDC
Ambient temperature -25...70 °C
IP rating IP68
Approval/Conformity CE
UKCA
cULus
WEEE

Technical Data Sheet:
