B3PNP (NO)

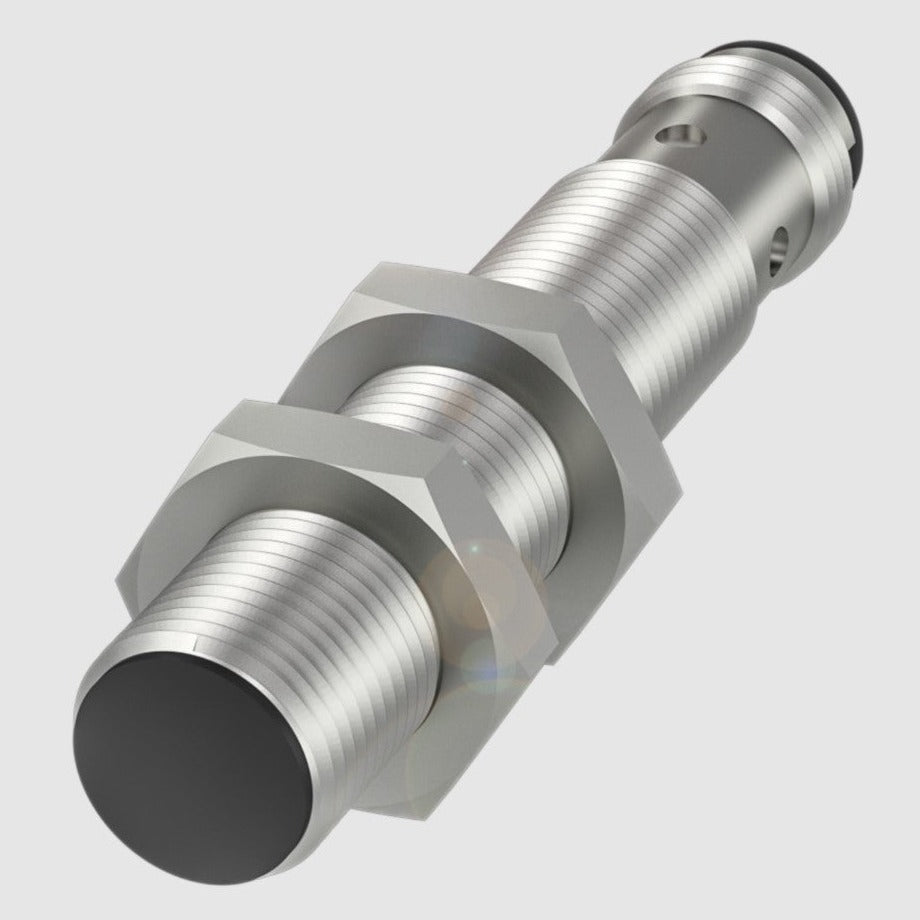

Balluff - M12 PNP (NO) - Inductive Sensor BES0068
Balluff - M12 PNP (NO) - Inductive Sensor BES0068
Regular price
$65.50 NZD
Regular price
Sale price
$65.50 NZD
Unit price
/
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Inductive Sensor
M12 PNP (NO) M12 3pin Sheilded Sn: 4mm
Compatible Part Numbers:
BES0068
Typecode / BES M12MI-PSC40B-S04G
Technical Data Of: BES0068
| Dimension | Ø 12 x 65 mm |
| Style Housing | M12x1 |
| Installation | for flush mounting |
| Range | 4 mm |

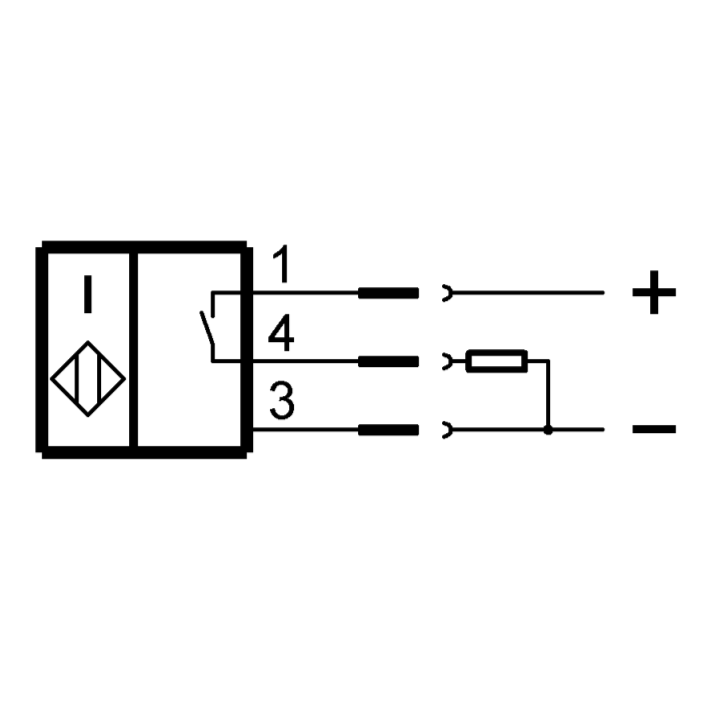

| Switching output | PNP normally open (NO) |
| Switching frequency | 2500 Hz |
| Housing material | Brass, Nickel-free coated |
| Material sensing surface | PBT |

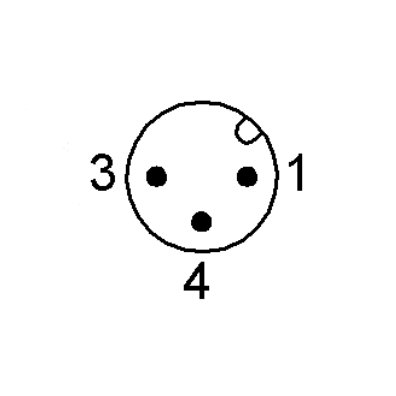

| Connection | Connector, M12x1-Male, 3-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP68 |
| Approval/Conformity | CE |
| UKCA | |
| cULus | |
| WEEE |
Technical Data Sheet:
