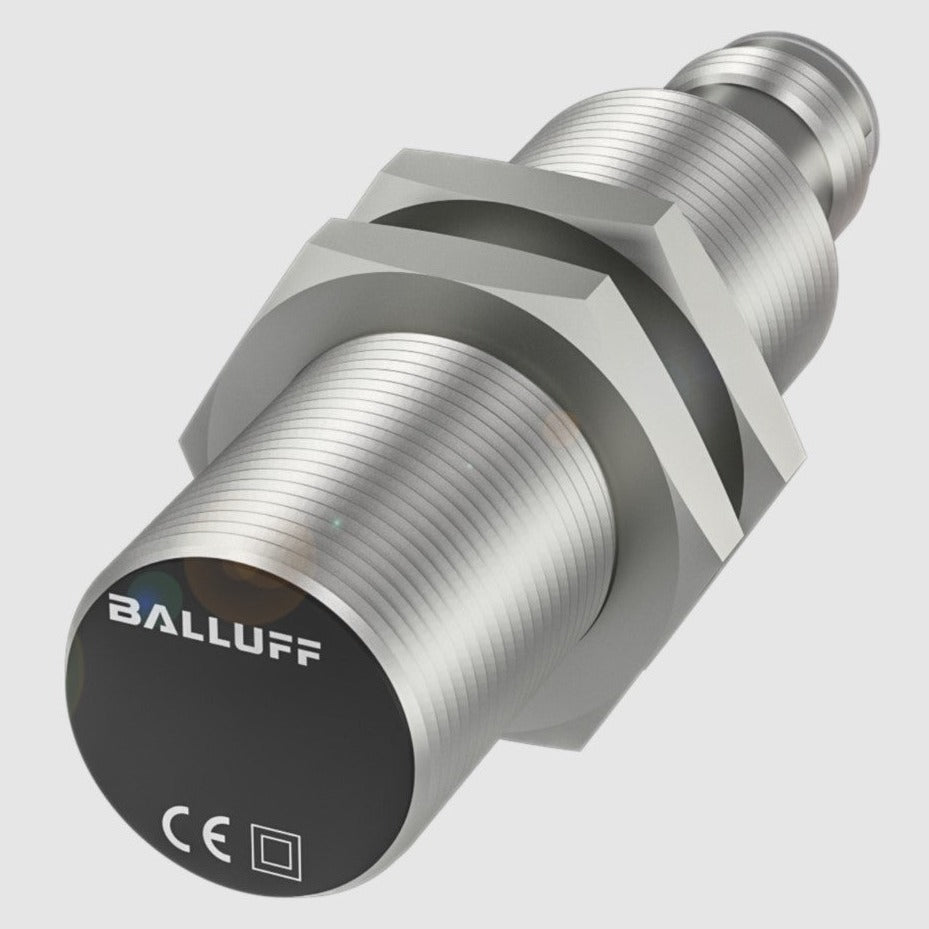

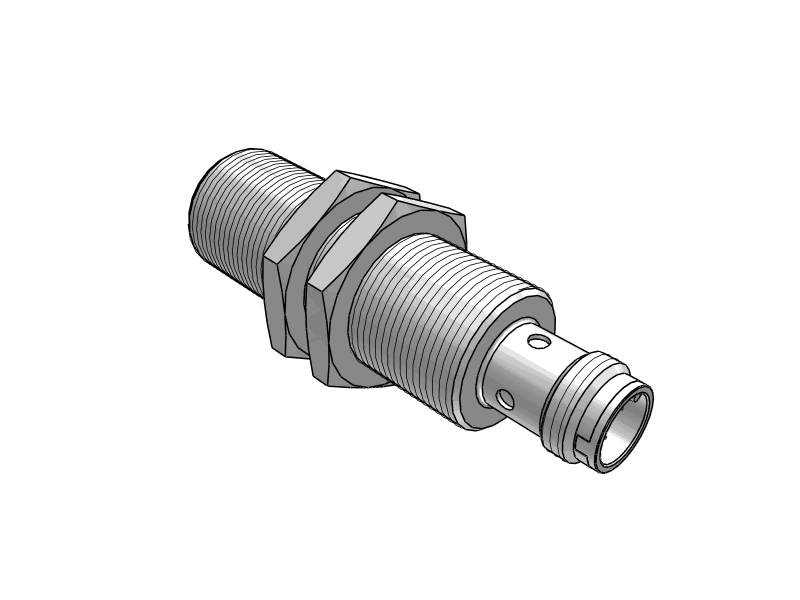

Balluff - M18 NPN (NO) - Inductive Sensor BES007L
Balluff - M18 NPN (NO) - Inductive Sensor BES007L
Regular price
$95.54 NZD
Regular price
Sale price
$95.54 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Inductive Sensor
M18 NPN (NO) M12 3pin Sheilded Sn: 8mm
Compatible Part Numbers:
BES007L
Typecode / BES M18MI-NSC80B-S04G
Technical Data Of: BES007L
| Dimension | Ø 18 x 66 mm |
| Style Housing | M18x1 |
| Installation | for flush mounting |
| Range | 8 mm |

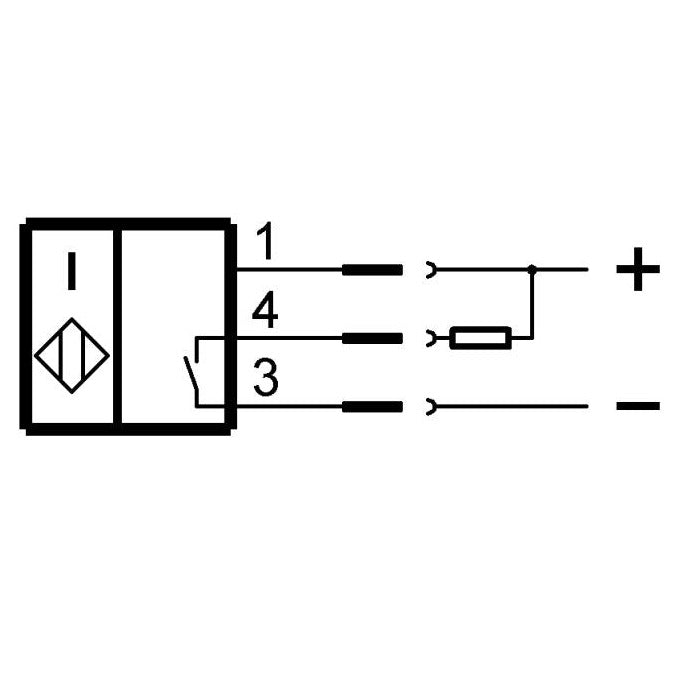

| Switching output | NPN normally open (NO) |
| Switching frequency | 1300 Hz |
| Housing material | Brass, Nickel-free coated |
| Material sensing surface | PBT |

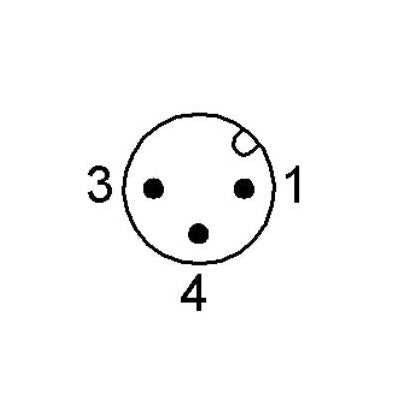

| Connection | Connector, M12x1-Male, 3-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -40...85 °C |
| IP rating | IP68 |
| Approval/Conformity | CE |
| UKCA | |
| cULus | |
| WEEE |
Technical Data Sheet:
