B05NPN (NO/NC)

BKT0011 - Contrast Sensor

BKT0011 - Contrast Sensor

Regular price $523.73 NZD
Regular price Sale price $523.73 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

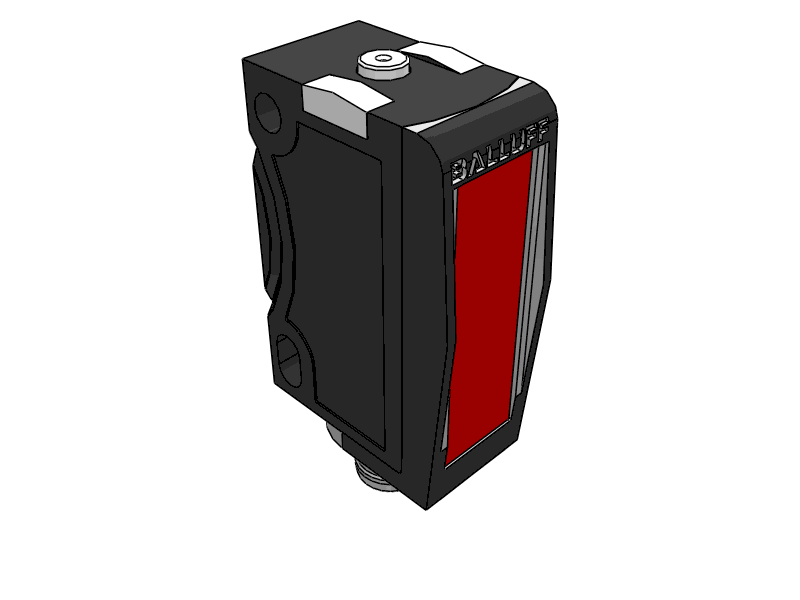

Contrast Sensor

Plastic Block Laser NPN (NO/NC) M8 4pin.

Compatible Part Numbers:

BKT0011

Typecode / BKT 6K-002-N-S75

Technical Data Of: BKT0011

Series 6K
Dimension 12 x 41.5 x 21.6 mm
Interface
NPN normally open/normally closed (NO/NC)
Input function Key disable on/off
Same function as button
Principle of operation Contrast sensor
Principle of optical operation Diffuse sensor, focused
Beam characteristic Focused
Light type Laser red light
Light spot size 0.7 x 0.7 mm at 250 mm
Range 1...250 mm

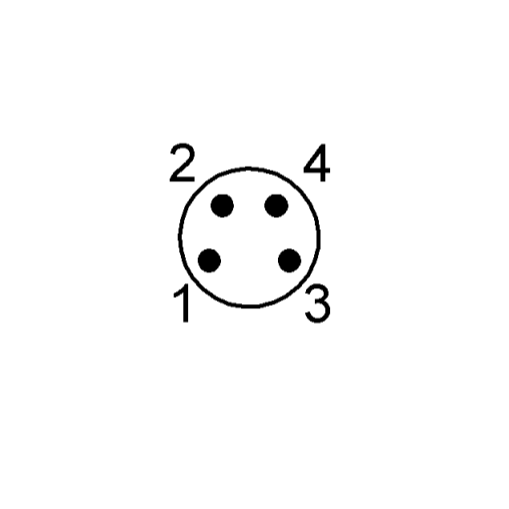

Connection Connector, M8x1-Male, 4-pin
Housing material ABS
Material sensing surface PMMA
Operating voltage Ub 10...30 VDC
Approval/Conformity cULus
CE
WEEE

Technical Data Sheet:

1 in stock

View full details
