B08PNP
BOS01FA - Diffuse Sensor
BOS01FA - Diffuse Sensor
Regular price
$175.88 NZD
Regular price
Sale price
$175.88 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

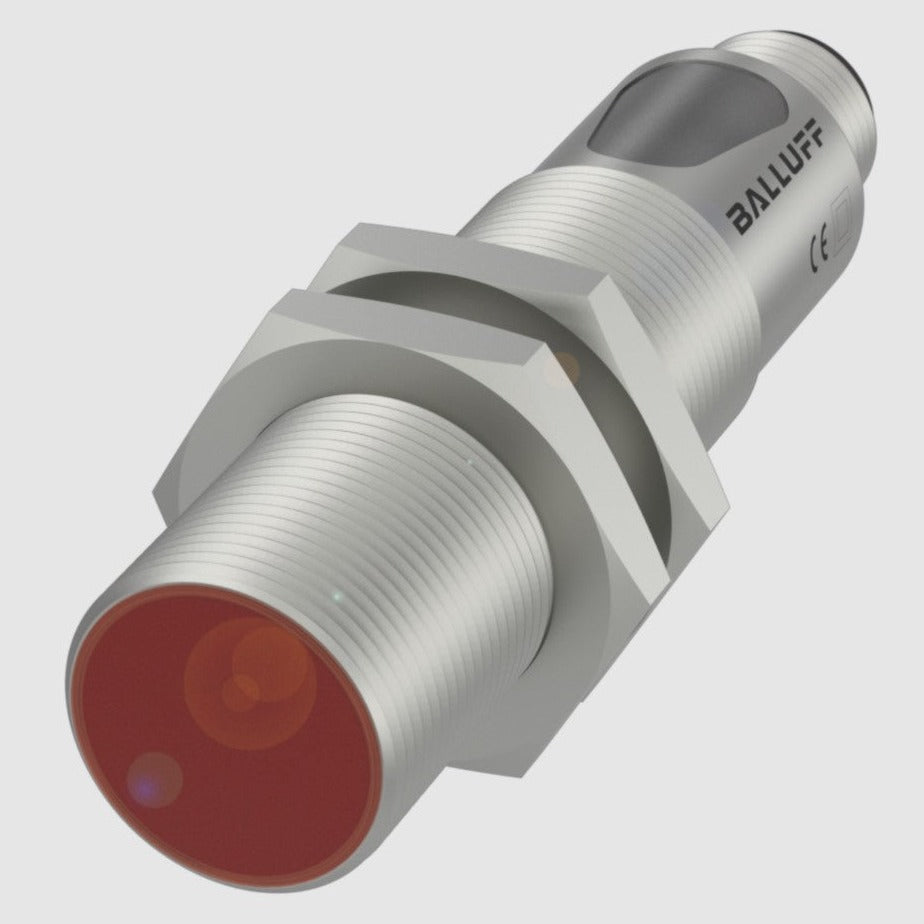

Diffuse Sensor - INDENT ORDER ONLY - LEAD TIME ON REQUEST
M18 PNP (NO) Sn:400mm Adj M12.
Compatible Part Numbers:
BOS01FA
Typecode / BOS 18M-PS-RD23-S4
Typecode / BOS 18M-PS-RD21-S4
087797
OBT500-18GM60-E5-V1
Technical Data Of BOS01FA:
| Series | 18M |
| Dimension | Ø 18 x 75 mm |

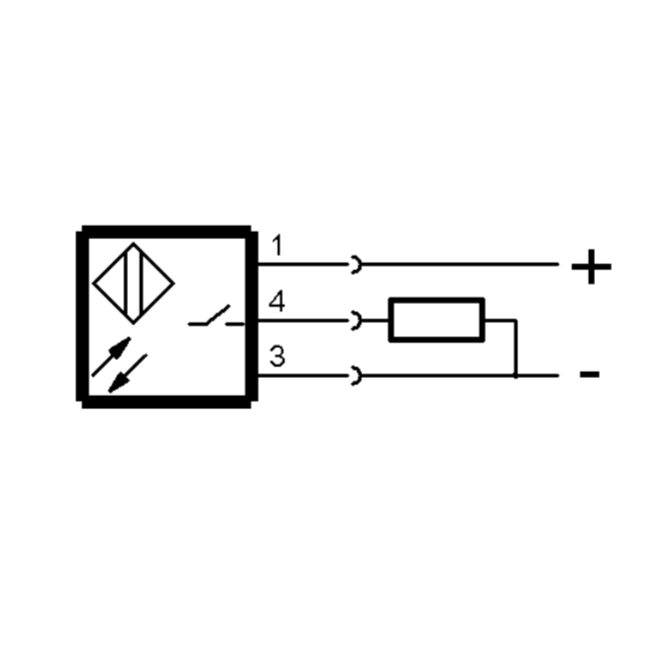

| Interface | PNP normally open (NO) |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, energetic |
| Beam characteristic | Divergent |
| Light type | LED, red light |
| Light spot size | Ø 25 mm at 300 mm |
| Range | 0...400 mm |

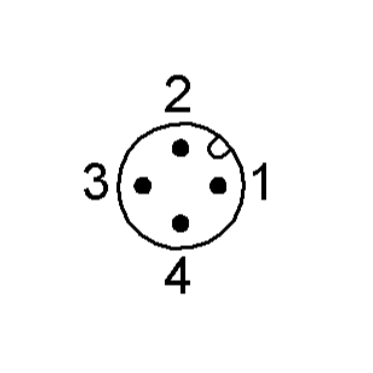

| Connection | Connector, M12x1-Male, 4-pin |
| Housing material | Brass, nickel-plated |
| Material sensing surface | Glass, anti-glare |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | cULus |
| CE | |
| UKCA | |
| WEEE | |
| Scope of delivery | 2x nut M18x1 |
| User manual |
Technical Data Sheet:
In stock
