B08PNP

BOS0298 - Diffuse Sensor

BOS0298 - Diffuse Sensor

Regular price $154.63 NZD
Regular price Sale price $154.63 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

Diffuse Sensor

R81K PNP (NO/NC) Sn:300mm Adj M12.

Compatible Part Numbers:

BOS0298

Typecode / BOS R81K-PA-RD10-S4

Technical Data Of: BOS0298

Series R81K
Dimension
15 x 48.9 x 31 mm
Interface
PNP normally open (NO)
normally closed (NC)
Principle of operation
Photoelectric sensor
Principle of optical operation Diffuse sensor
Light type LED, red light
Light spot size
18 x 18 mm at 300 mm
Range 5...300 mm
Connection

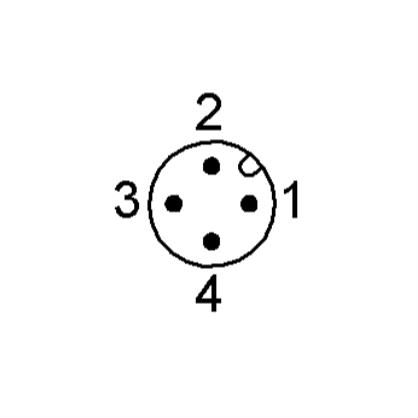

Connector, M12x1-Male, 4-pin
Housing material ABS
PMMA
Material sensing surface PMMA
Operating voltage Ub 10...30 VDC
Approval/Conformity CE
cULus
UKCA
WEEE
Scope of delivery
Mounting bracket

Technical Data Sheet:

1 in stock

View full details
