B08PNP (NO/NC)
BOS029U - Diffuse Sensor
BOS029U - Diffuse Sensor
Regular price
$178.76 NZD
Regular price
Sale price
$178.76 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Diffuse Sensor
R090K PNP (NO/NC) Sn:1000mm Adj M8 3pin.
Compatible Part Numbers:
BOS029U
Typecode / BOS R090K-PU-ID11-S49
Technical Data Of: BOS029U
| Series | R090K |
| Dimension | 10.7 x 43.5 x 19.5 mm |
| Interface |
PNP normally open/normally closed (NO/NC)
|
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, energetic |
| Beam characteristic | Divergent |
| Light type | LED infrared |
| Light spot size | Ø 70 mm at 500 mm |
| Range | 0...1000 mm |

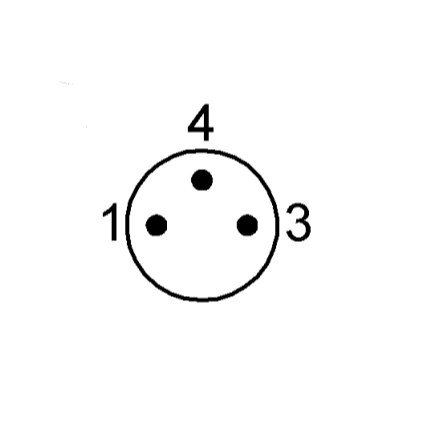

| Connection | Connector, M8x1, 3-pin |
| Housing material | PC |
| PBT | |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | cULus |
| CE | |
| UKCA | |
| WEEE |
Technical Data Sheet:
