B9PNP (NO/NC)
Balluff - PNP (NO/NC) - Fibre Optic Sensor BFB0006
Balluff - PNP (NO/NC) - Fibre Optic Sensor BFB0006
Regular price
$433.83 NZD
Regular price
Sale price
$433.83 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Fiber Optic Sensor
PNP (NO/NC) M8 4pin
Technical Data Of: BFB0006
| Series | 75K |
| Dimension |
10.4 x 35.4 x 84 mm
|
| Interface |
PNP normally open/normally closed (NO/NC)
|
| Principle of operation |
Fiber optic device
|
| Input function | Teach Sn |
| Key disable | on/off |
| Setting |
LCD read direction
|
| Time function |
Factory setting (Reset)
|
| Mode |
normal/fine/fast/far
|
| Duration of single pulse | - |
| Rated switching distance (Sn) | 2 values |
| Display | on/off |
| Delay time | - |
| Light-on/dark-on | - |
| Sensitivity (Sn) | - |
| Operating voltage Ub | 10...30 VDC |
| Light type | LED, red light |
| Connection |

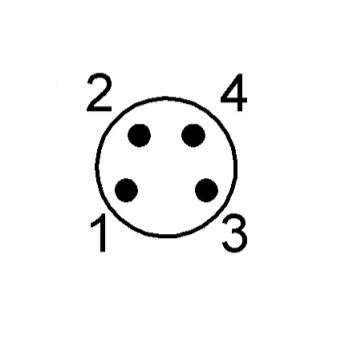

Connector, M8x1-Male, 4-pin
|
| Housing material | ABS |
| Switching frequency |
8000 Hz / 1000 Hz / 125 Hz
|
| Approval/Conformity |
cULus, CE, WEEE
|
Compatible Part Numbers:
BFB0006
Typecode / BFB 75K-002-P-S75
Technical Data Sheet:
1 in stock
