B10PNP NPN (NO/NC), (NO), and (NC)

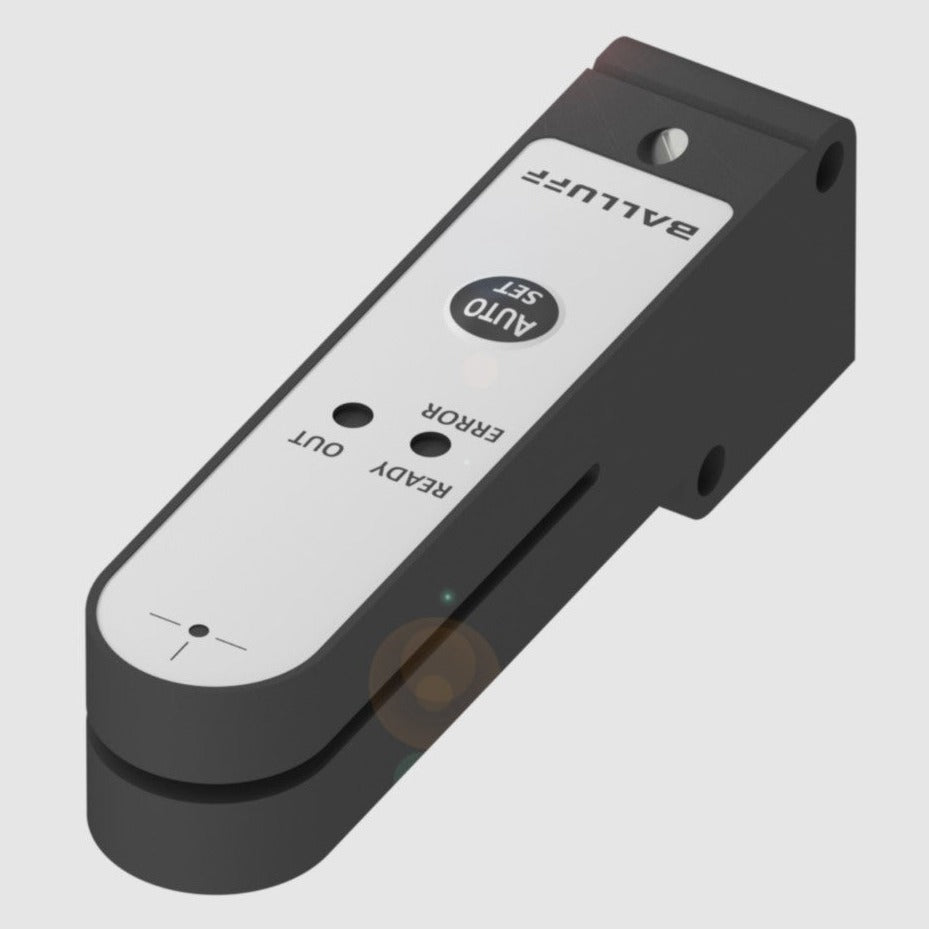

BGL002L - Fork Sensor
BGL002L - Fork Sensor
Regular price
$621.73 NZD
Regular price
Sale price
$621.73 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Fork Sensors Metal
Label Gap PNP/NPN (NO/NC) M8 4pin.
Compatible Part Numbers:
BGL002L
Typecode / BGL 21-IR
Technical Data Of: BGL002L
| Series | 21 |

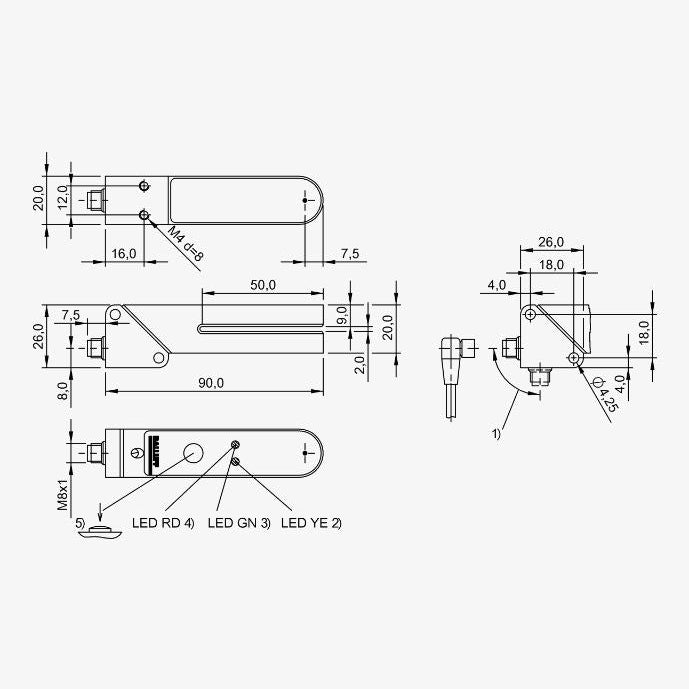

| Dimension | 20 x 26 x 90 mm |
| Fork opening | 2 mm |

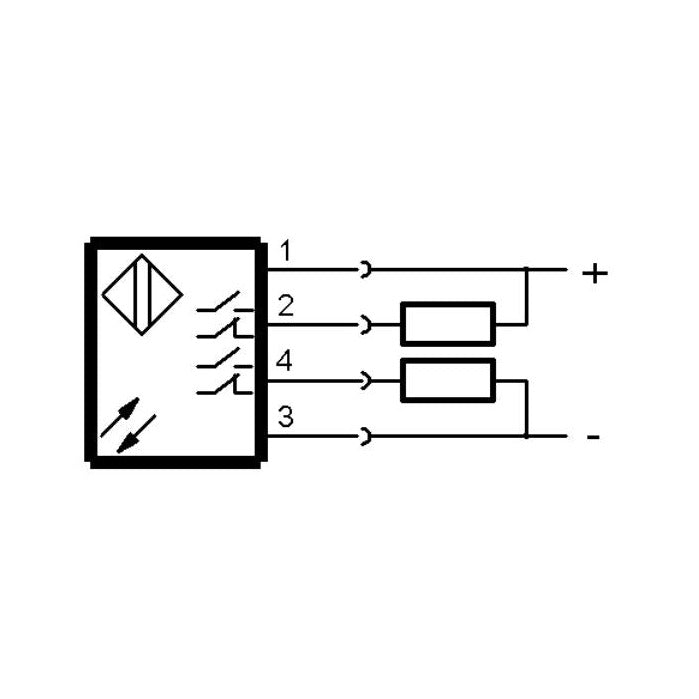

| Interface | PNP NO/NC NPN NO/NC |
| Principle of operation | Fork sensor |
| Principle of optical operation | Through-beam sensor |
| Beam characteristic | Divergent |
| Light type | Infrared |
| Light spot size | 0.5 x 4 mm Light exit |

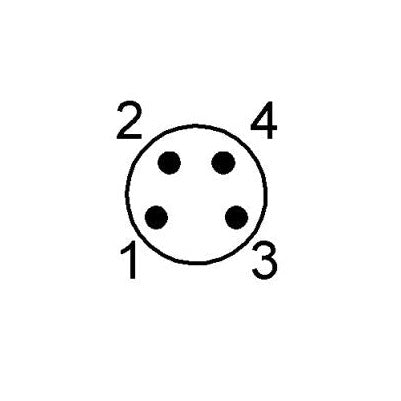

| Connection | Connector, M8x1-Male, 4-pin |
| Housing material | Aluminium, Anodized |
| Material sensing surface | Glass |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | CE |
| UKCA | |
| WEEE |
Technical Data Sheet:
1 in stock
