B9PNP (NO/NC)
Balluff - PNP (NO/NC) - Fork Sensor BGL003L
Balluff - PNP (NO/NC) - Fork Sensor BGL003L
Regular price
$561.89 NZD
Regular price
Sale price
$561.89 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Fork Sensor
PNP (NO/NC) M8 3pin
Compatible Part Numbers:
BGL003L
Typecode / BGL 80A-011-S49
Technical Data OF: BGL003L
| Series | A |
| Dimension | 10 x 100 x 88 mm |
| Fork opening | 80 mm |
| Interface |
PNP normally open/normally closed (NO/NC)
|
| Principle of operation | Fork sensor |
| Principle of optical operation | Through-beam sensor |
| Special optical feature | Water detection |
| Beam characteristic | Divergent |
| Light type | Infrared |
| Light spot size | Ø 2.5 mm Light exit |

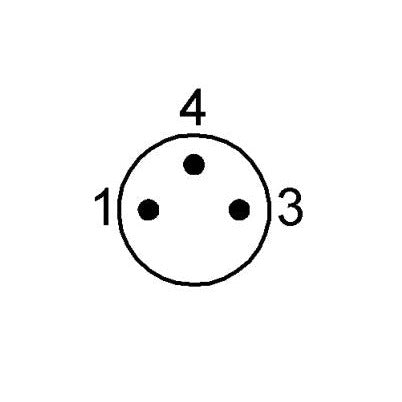

| Connection | Connector, M8x1-Male, 3-pin |
| Housing material | Zinc, Die casting, Painted |
| Material sensing surface | Glass |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | CE |
| UKCA | |
| cULus | |
| WEEE |
Technical Data Sheet:
1 in stock
