B01PNP

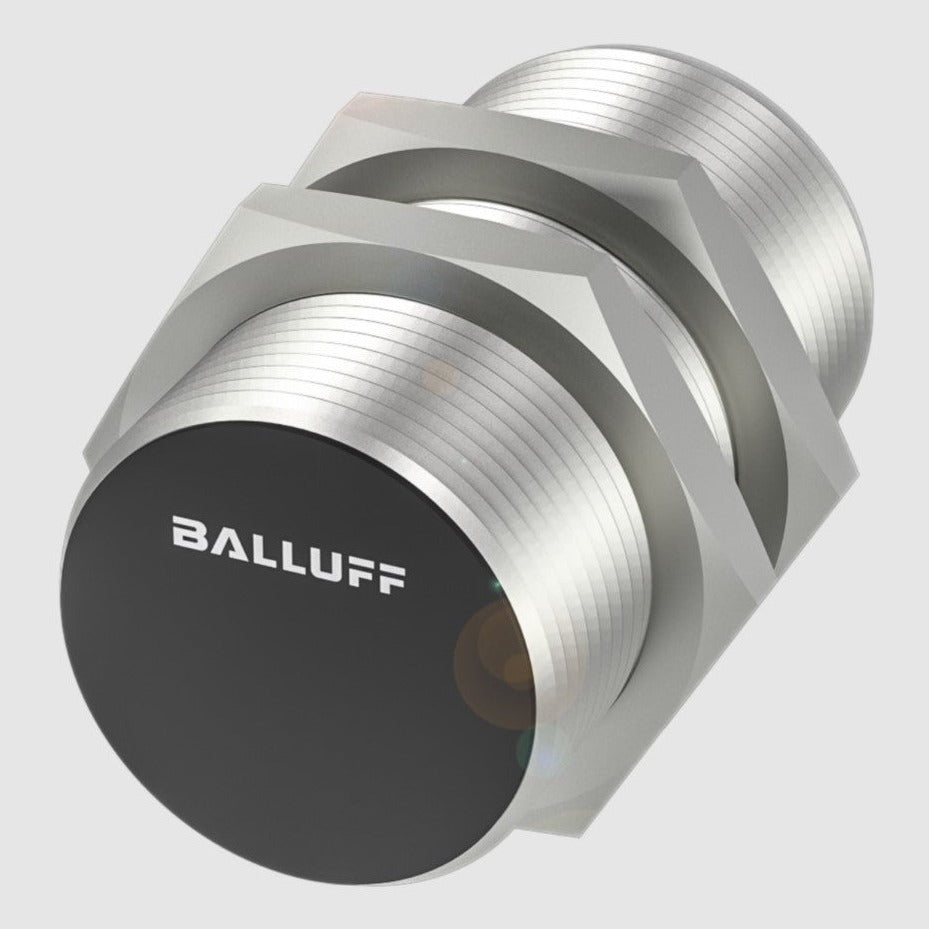

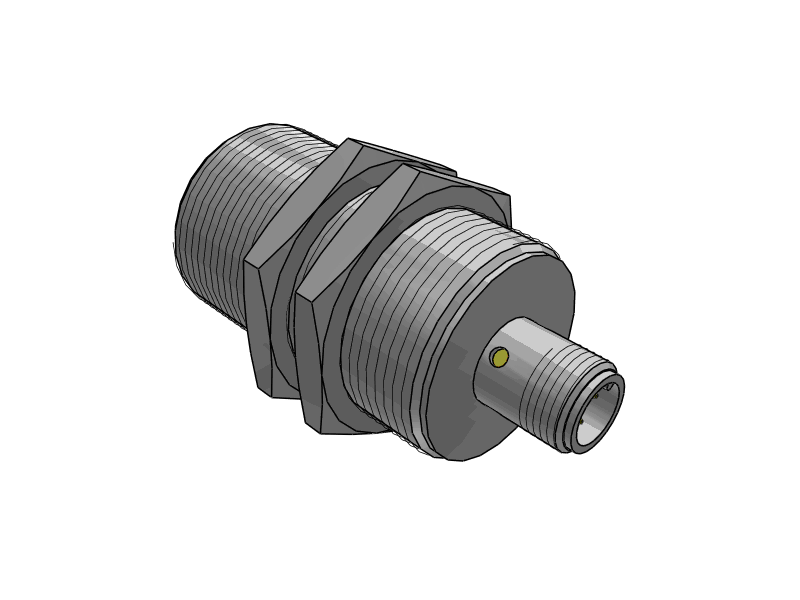

BES00AF - Inductive Standard Sensor
BES00AF - Inductive Standard Sensor
Regular price
$124.10 NZD
Regular price
Sale price
$124.10 NZD
Unit price
/
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Inductive Standard Sensors
M30 PNP (NO) M12 Sheilded Sn:15mm.
Compatible Part Numbers:
BES00AF
Typecode / BES M30MI-PSC15B-S04K
Technical Data Of: BES00AF
Dimension | Ø 30 x 65 mm |
Style Housing | M30x1.5 |
Installation | for flush mounting |
Range | 15 mm |
Switching output | PNP normally open (NO) |
Switching frequency | 100 Hz |
Housing material | Brass, Nickel-free coated |
Material sensing surface | PA 12 |
Connection | Connector, M12x1-Male, 4-pin |
Operating voltage Ub | 10...30 VDC |
Ambient temperature | -25...70 °C |
IP rating | IP67 |
Approval/Conformity | CE |
UKCA | |
cULus | |
WEEE |
Technical Data Sheet:
1 in stock
