B06NPN NO

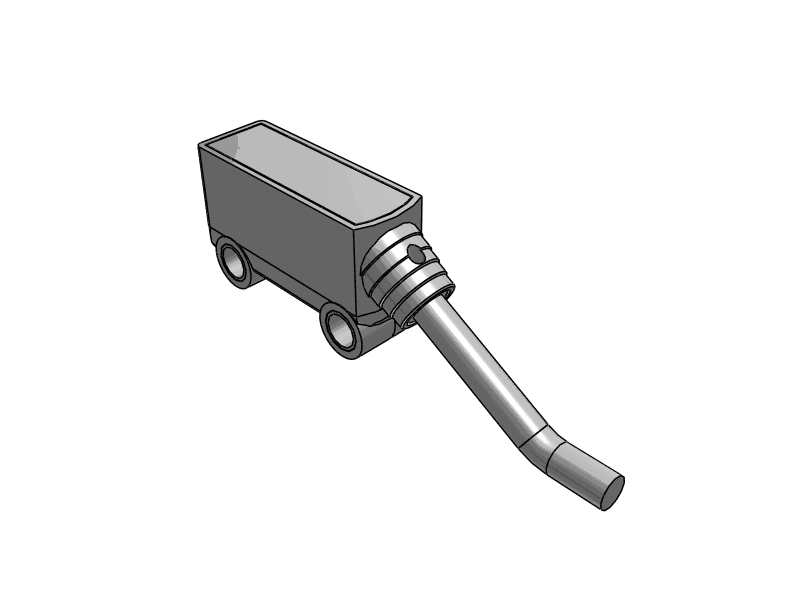

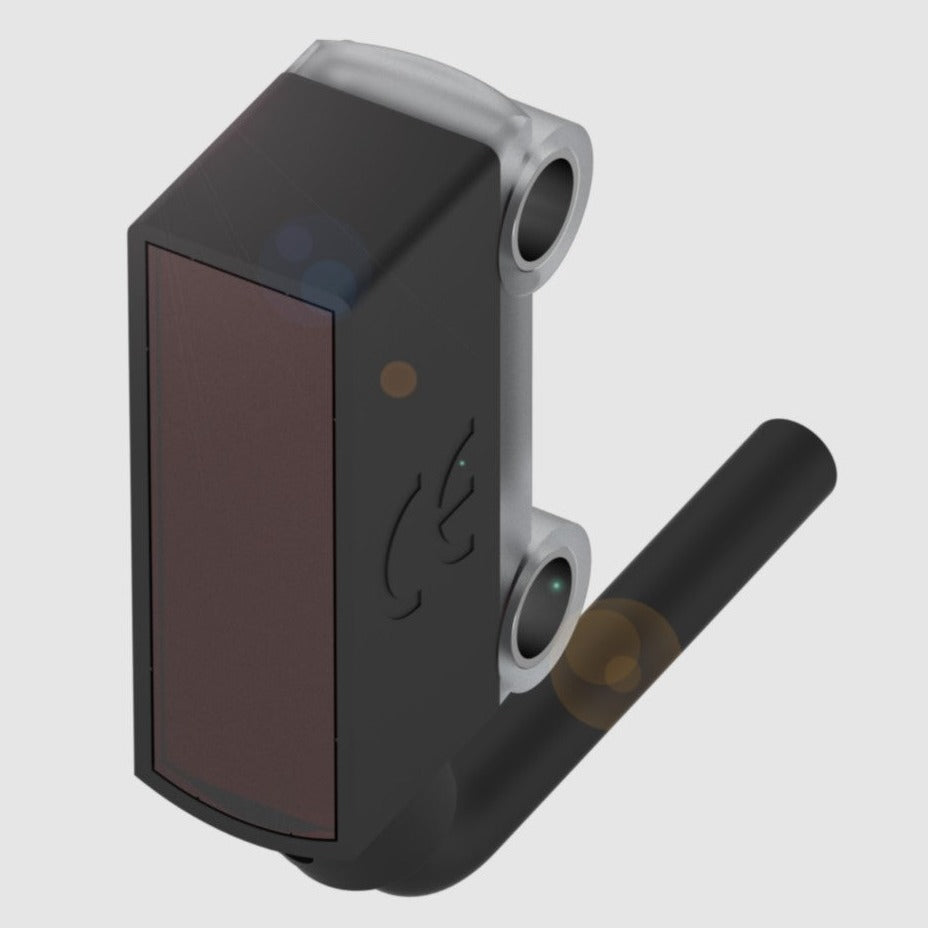

BOS020J - Diffuse Triangulation Sensor

BOS020J - Diffuse Triangulation Sensor

Regular price $250.92 NZD
Regular price Sale price $250.92 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

Diffuse Sensor With Background Suppression

R020K NPN (NO) Triangulation Sn:30mm 2m Cable.

Compatible Part Numbers:

BOS020J

Typecode / BOS R020K-NS-RF11-02

Technical Data Of: BOS020J


Series R020K

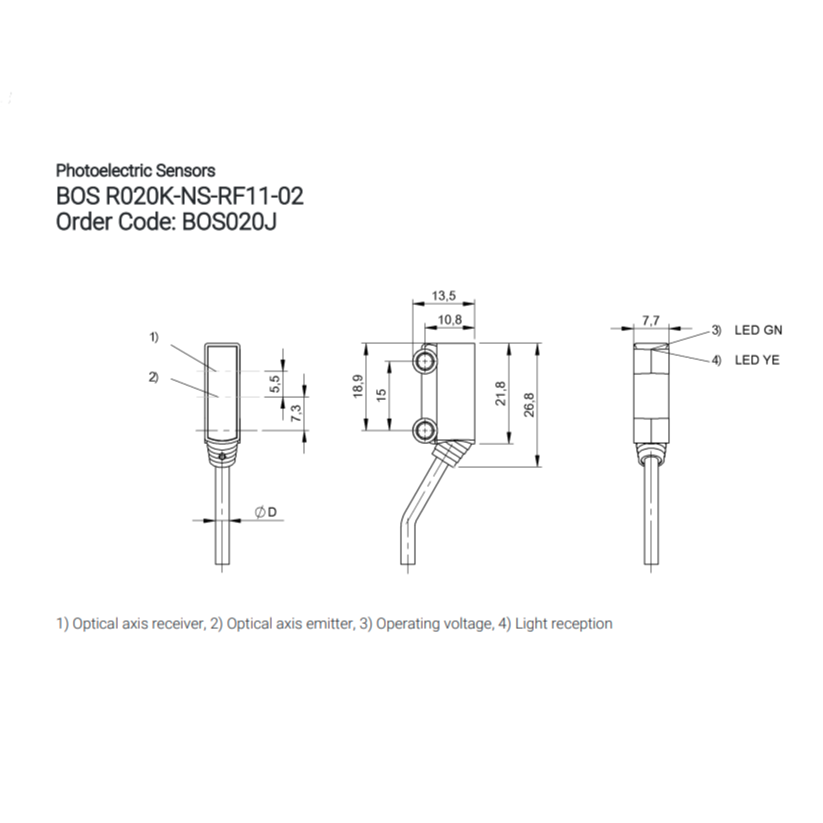

Dimension 7.7 x 26.8 x 13.5 mm

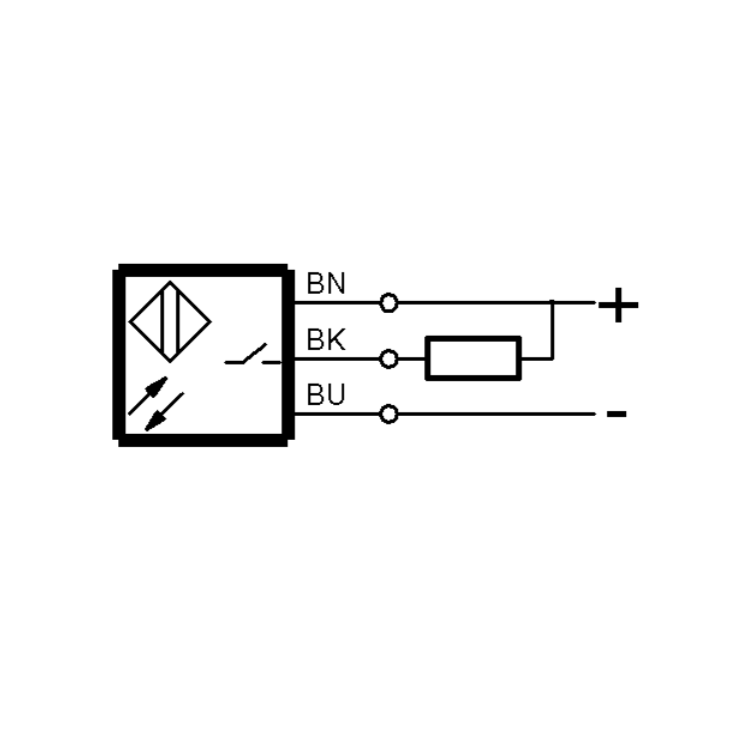

Interface NPN normally open (NO)
Principle of operation Photoelectric sensor
Principle of optical operation Diffuse sensor, HGA fixed
Special optical feature Background suppression
Light type LED, red light
Light spot size Ø 3 mm at 15 mm
Range 1...30 mm
Connection Cable, 2.00 m, PVC
Housing material ABS
Material sensing surface PMMA
Operating voltage Ub 10...30 VDC
Approval/Conformity CE
cULus
WEEE

Technical Data Sheet:
