BES008L - Inductive Standard Sensor
BES008L - Inductive Standard Sensor
Regular price
$95.54 NZD
Regular price
Sale price
$95.54 NZD
Unit price
/
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Inductive Standard Sensor
M18 PNP (NO) M12 Sheilded Sn:8mm.
Compatible Part Numbers:
BES008L
Typecode / BES M18MI-PSC80B-S04G
Technical Data Of: BES008L
Dimension | Ø 18 x 66 mm |
Style Housing | M18x1 |
Installation | for flush mounting |
Range | 8 mm |

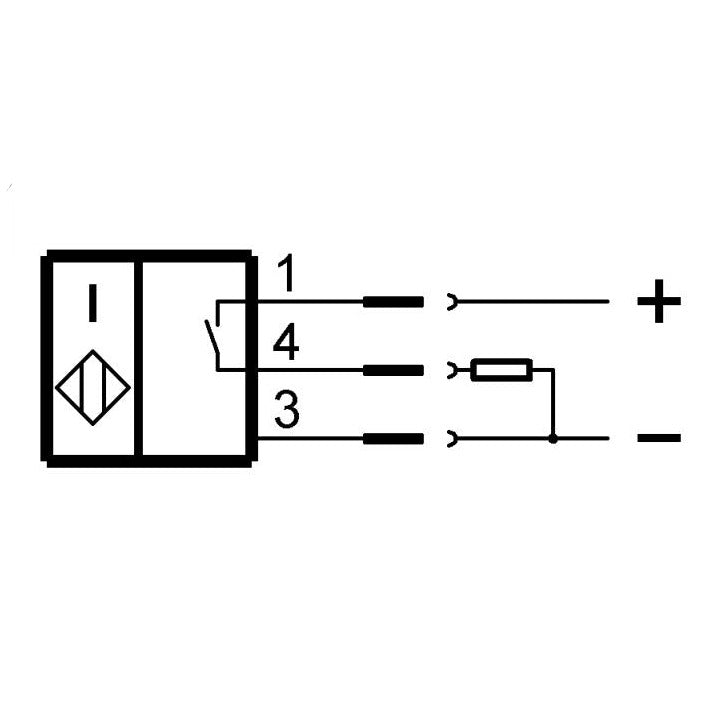

Switching output | PNP normally open (NO) |
Switching frequency | 1300 Hz |
Housing material | Brass, Nickel-free coated |
Material sensing surface | PBT |

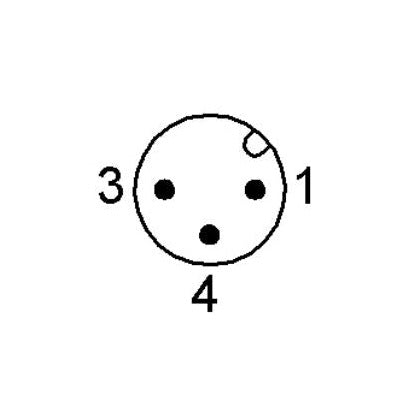

Connection | Connector, M12x1-Male, 3-pin |
Operating voltage Ub | 10...30 VDC |
Ambient temperature | -40...85 °C |
IP rating | IP68 |
Approval/Conformity | CE |
UKCA | |
cULus | |
WEEE |
Technical Data Sheet:
4 in stock
