B04PNP (NO)
BES00HF - M5 PNP (NO) - Inductive Sensor
BES00HF - M5 PNP (NO) - Inductive Sensor
Regular price
$199.21 NZD
Regular price
Sale price
$199.21 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Inductive Standard Sensor
M5 PNP (NO) M12 Sheilded Sn:1.5mm.
Compatible Part Numbers:
BES00HF
Typecode / BES 516-3005-G-E5-C-S49
PF 224132
NBB1-4GM22-E2-0,3M-V3
Technical Data Of: BES00HF
| Dimension | Ø 5 x 41 mm |
| Style Housing | M5x0.5 |
| Installation | for flush mounting |
| Range | 1.5 mm |

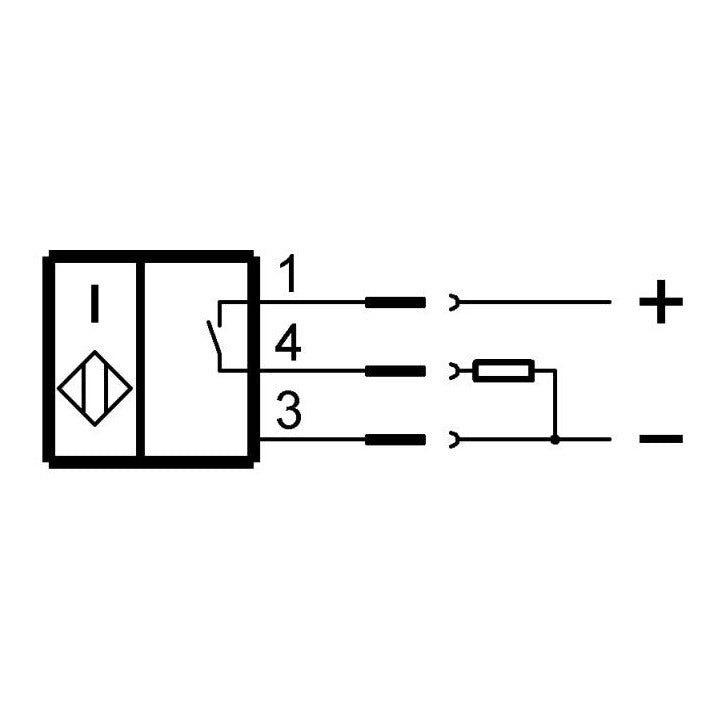

| Switching output | PNP normally open (NO) |
| Switching frequency | 5000 Hz |
| Housing material | Stainless steel |
| Material sensing surface | PBT |

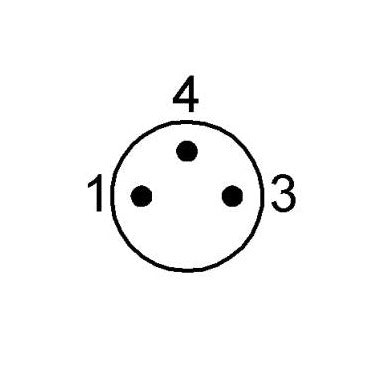

| Connection | Connector, M8x1-Male, 3-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Approval/Conformity | cULus |
| CE | |
| UKCA | |
| WEEE |
Technical Data Sheet:
2 in stock
