B02NPN (NO)
BES02Y2 - Pressure-Rated Inductive Sensor
BES02Y2 - Pressure-Rated Inductive Sensor
Regular price
$237.36 NZD
Regular price
Sale price
$237.36 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

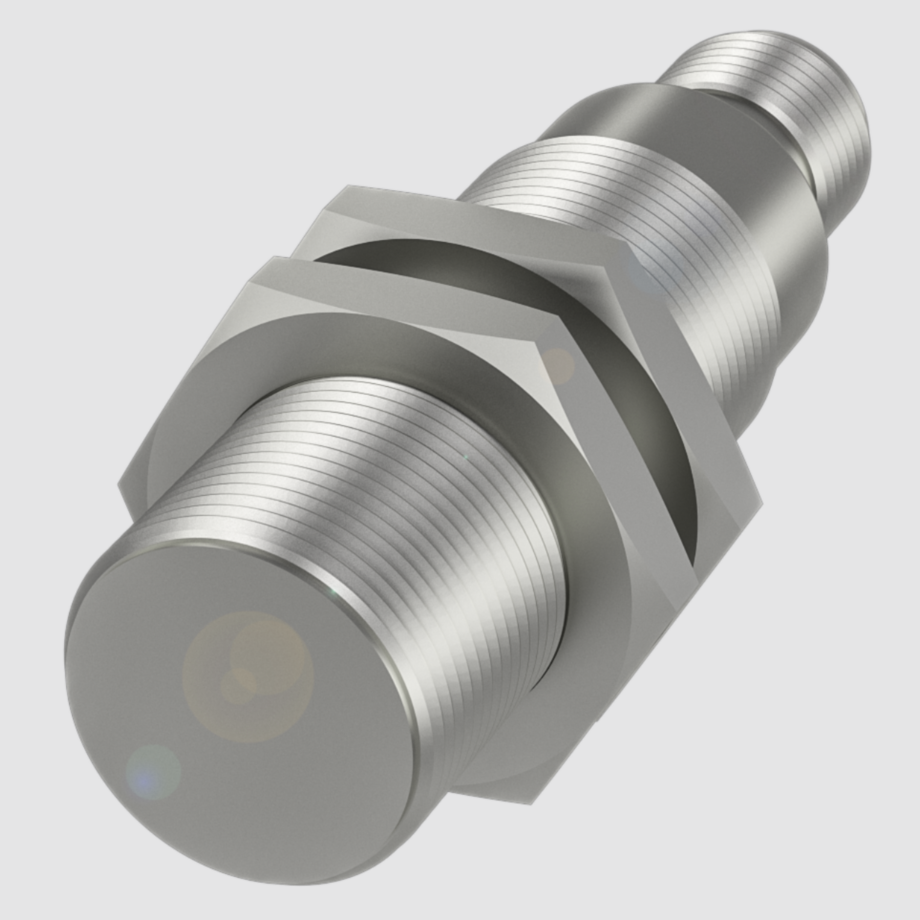

Pressure-Rated Inductive Sensor
M18 NPN (NO) M12 Sheilded Sn:10mm.
Compatible Part Numbers:
BES02Y2
Typecode / BES M18EG1-NSC10Z-S04G-S11
PF 908437
NMB5-18GM65-E0-FE-V1
Technical Data Of: BES02Y2
| Dimension | Ø 18 x 63.5 mm |
| Style Housing | M18x1 |
| Installation | for flush mounting |
| Range | 10 mm |

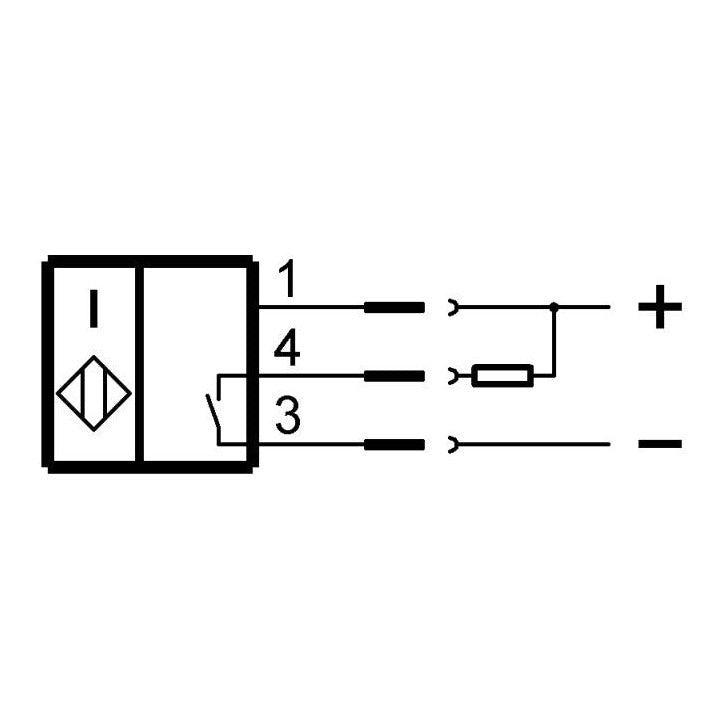

| Switching output | NPN normally open (NO) |
| Switching frequency | 200 Hz |
| Housing material | Stainless steel |
| Material sensing surface | Stainless steel |

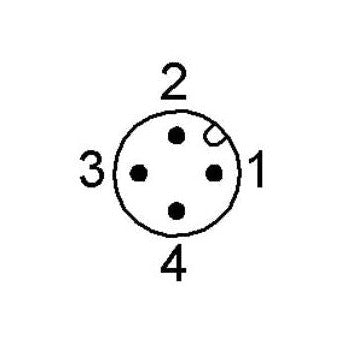

| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| Pressure rating max | .60 bar |
| IP rating | IP67 |
| Approval/Conformity | CE |
| cULus | |
| WEEE |
Technical Data Sheet:
1 in stock
