BSP00Y0 - Pressure Sensor
BSP00Y0 - Pressure Sensor
Regular price
$335.36 NZD
Regular price
Sale price
$335.36 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

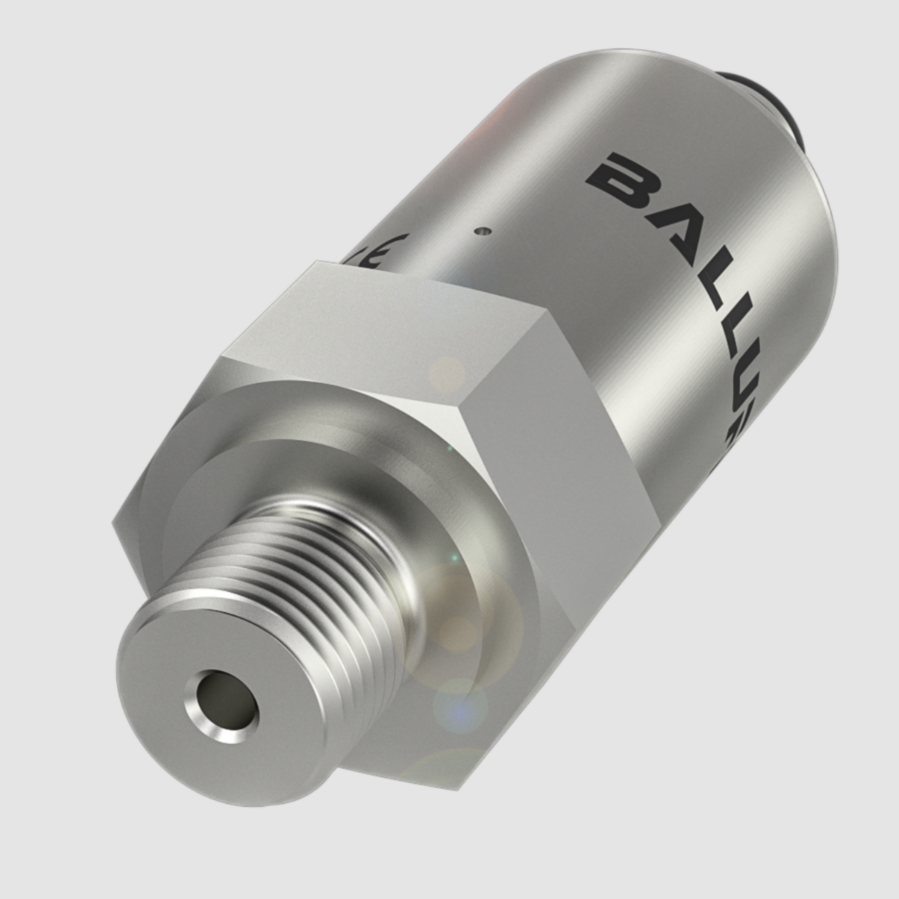

Pressure Sensor Without Display
G 1/4" 0-16 Bar 0-10V Output M12 4 pin.
Compatible Part Numbers:
BSP00Y0
Typecode / BSP B016-DV004-A04A1A-S4
Technical Data Of: BSP00Y0
| Measuring range | 0...16 bar |
| Accuracy | ±0.5 % FSO BFSL |
| Overload pressure | 40 bar |
| Burst pressure | 70 bar |
| Operating voltage Ub | 14...30 VDC |
| Analog output | Analog, voltage 0…10 V |

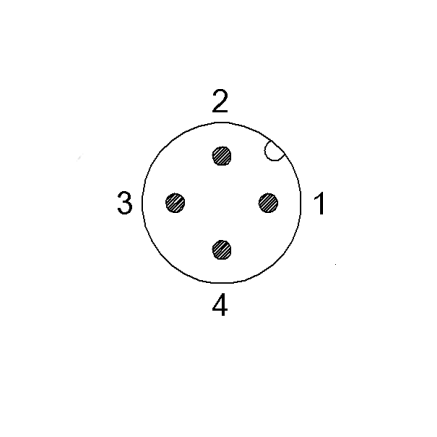

| Connection | Connector, M12x1-Male, 4-pin |
| Process connection | G 1/4" (DIN 3852) |
| Process connection material | 1.4301 stainless steel |
| Gasket, material | FKM |
| Housing material | 1.4301 stainless steel |
| Media temperature | -40...125 °C |
| Ambient temperature | -25...85 °C |
| IP rating | IP67 |
| Approval/Conformity | CE |
| UKCA | |
| cULus | |
| WEEE |
Technical Data Sheet:
