B14PNP
BOS01JW - Retroreflective Sensor
BOS01JW - Retroreflective Sensor
Regular price
$264.45 NZD
Regular price
Sale price
$264.45 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Retroreflective Sensor
5K PNP (NO/NC) M8 4pin Sn:10m.
Compatible Part Numbers:
BOS01JW
Typecode / BOS 5K-PU-LR10-S75
Technical Data Of: BOS01JW
| Series | 5K |
| Dimension | 10.8 x 43.5 x 19.5 mm |
| Interface |

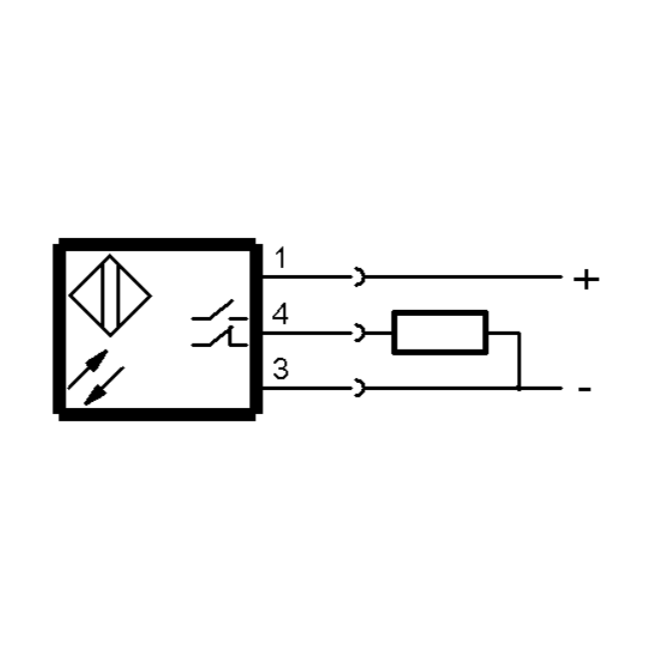

PNP normally open/normally closed (NO/NC)
|
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Retroreflective sensor |
| Beam characteristic | Divergent |
| Light type | Laser red light |
| Light spot size | Ø 5 mm at 3 m |
| Range | 0...10 m |

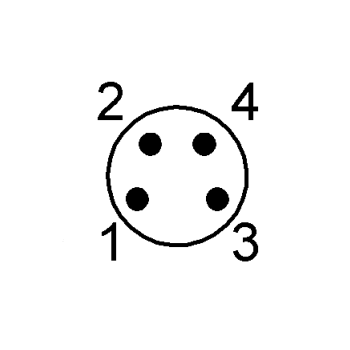

| Connection | Connector, M8x1-Male, 4-pin |
| Housing material | PC |
| PBT | |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | cULus |
| CE | |
| WEEE | |
| UKCA | |
| Trademark | Global |
Technical Data Sheet:
1 in stock
