B15PNP NPN (NO/NC)
Balluff - Signal Converter BAE002H
Balluff - Signal Converter BAE002H
Regular price
$163.75 NZD
Regular price
Sale price
$163.75 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Signal Converter
M12 -> M12
Signal Converter PNP/NPN (NO/NC) M12.
Compatible Part Numbers:
BAE002H
Typecode / BOS S-F01
Technical Data Of: BAE002H
| Function | Switching amplifier up to 400 mA |
| Output converter (PNP/NPN) | |
| Switching inverter (NO/NC) | |
| Operating voltage Ub | 10...30 VDC |
| Digital inputs | PNP |

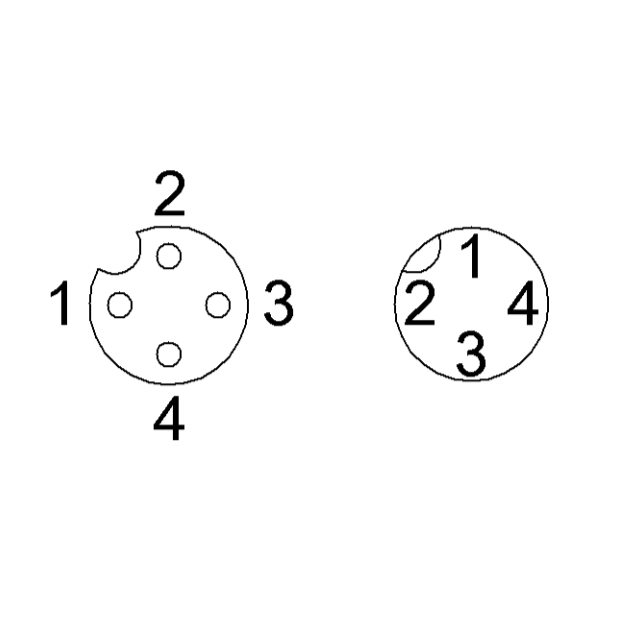

| Connection | Connector, M12x1 |
| Connection for sensor | M12x1-Female, 4-pin |
| Housing material | PBT |
| PA | |
| Dimension | Ø 20 x 60 mm |
| Ambient temperature | 0...60 °C |
| IP ratingI | P67 |
| Approval/Conformity | CE |
| WEEE |
Technical Data Sheet:
2 in stock
