B15PNP (NO/NC)

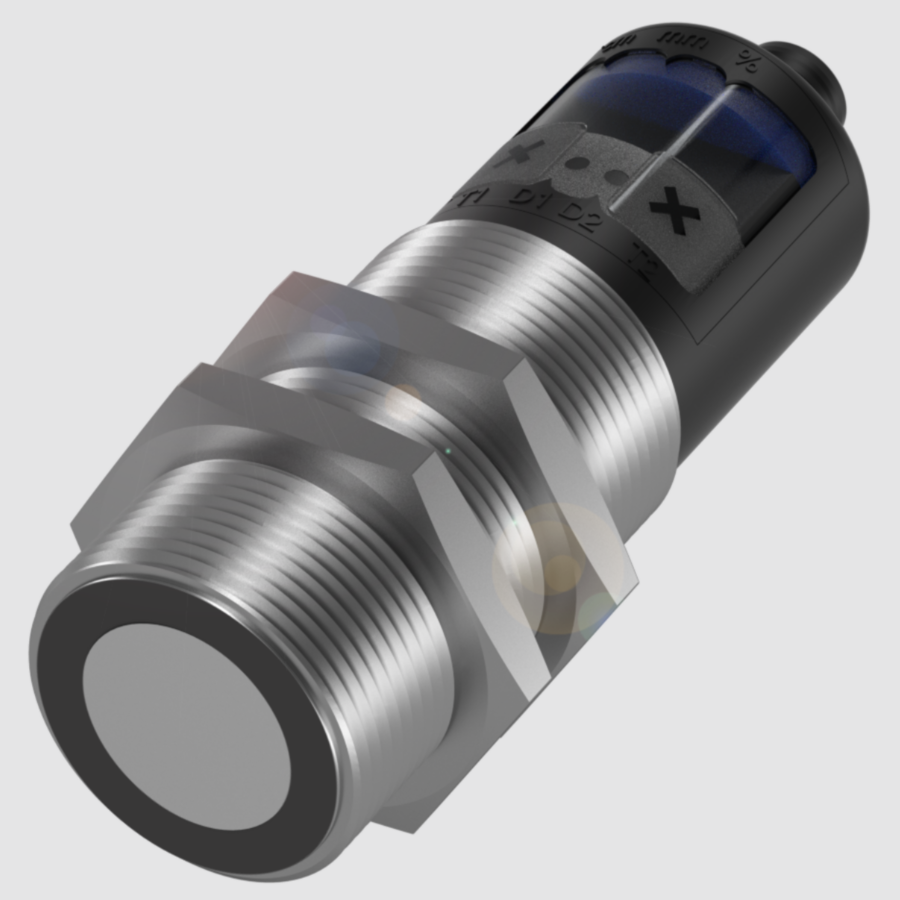

Balluff - M30 PNP (NO/NC) - Ultrasonic Sensor BUS003C
Balluff - M30 PNP (NO/NC) - Ultrasonic Sensor BUS003C
Regular price
$643.63 NZD
Regular price
Sale price
$643.63 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Ultrasonic Sensor With A Digital Output
M30 PNP (NO/NC) M12 5pin n: 200-2000mm
Compatible Part Numbers:
BUS003C
Typecode / BUS M30M1-PWX-20/130-S92K
Technical Data Of: BUS003C
| Style Housing | Ø 30 mm |
| Switching output |

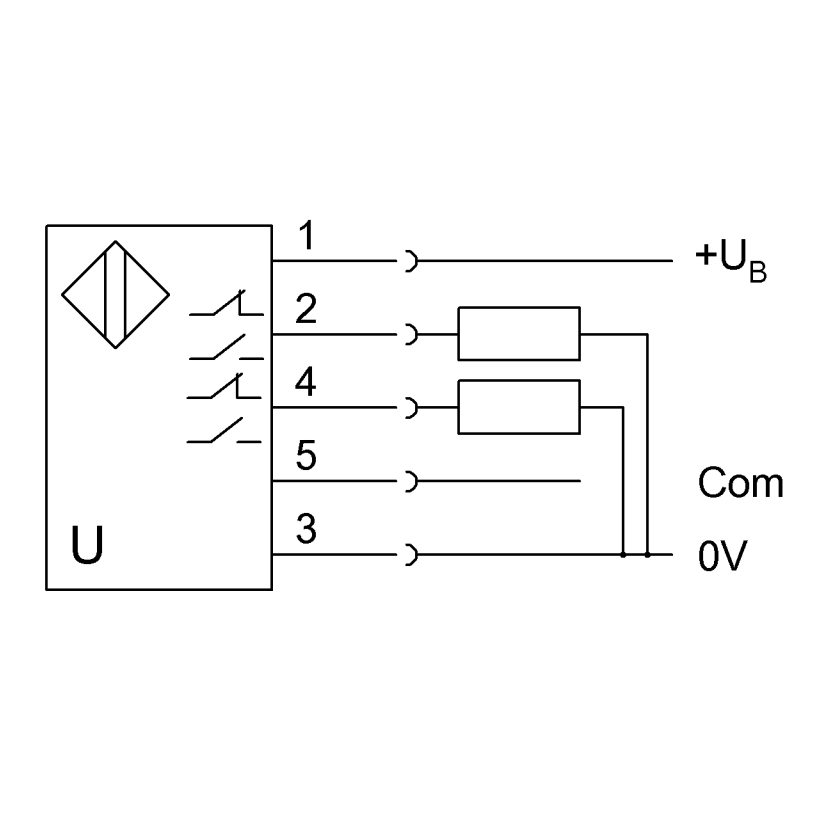

2x PNP normally open/normally closed (NO/NC)
|

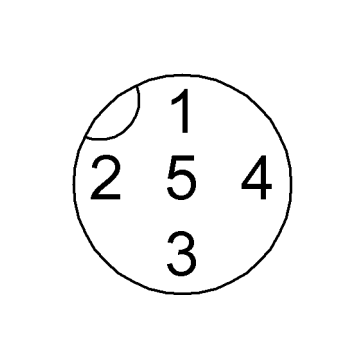

| Connection | Connector, M12x1-Male, 5-pin |
| Housing material | Brass, nickel-plated |
| PBT, TPU | |
| Material sensing surface | PU foam/Epoxy resin/Glass |
| Range | 200...2000 mm |
| Switching frequency | 8 Hz |
| Approval/Conformity | cULus |
| CE | |
| WEEE | |
| UKCA | |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Repeat accuracy | ± 0.15 %FS |
| Operating voltage Ub | 9...30 VDC |
Technical Data Sheet:
1 in stock
