B16PNP (NO/NC)
BUS004C - Ultrasonic Sensor
BUS004C - Ultrasonic Sensor
Regular price
$460.93 NZD
Regular price
Sale price
$460.93 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

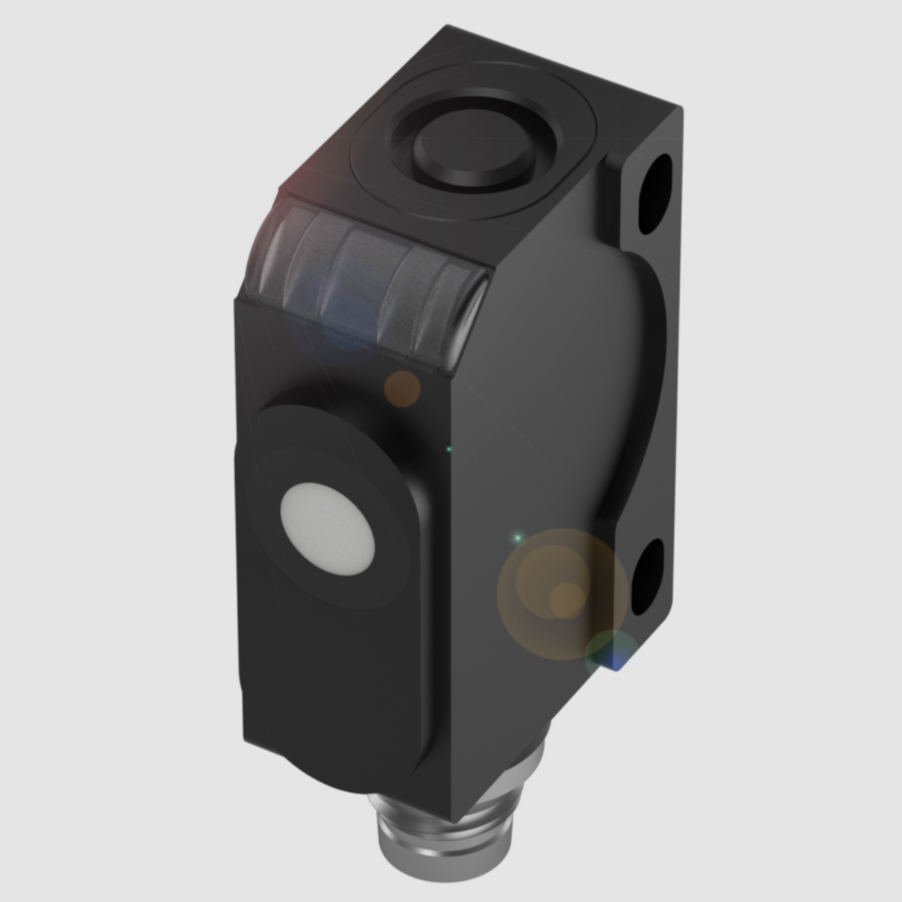

Ultrasonic Sensor With A Digital Output
R06K1 PNP (NO/NC) M8 4pin Sn:20-250mm.
Compatible Part Numbers:
BUS004C
Typecode / BUS R06K1-PPX-02/015-S75G
PF 233250
UB250-F77-E2-V31
Technical Data Of: BUS004C
| Style Housing | block style |
| Switching output |
PNP normally open/normally closed (NO/NC)
|
| Connection | Connector, M8x1-Male, 4-pin |
| Housing material | ABS |
| Material sensing surface | PU foam/Epoxy resin/Glass |
| Range | 20...250 mm |
| Switching frequency | 25 Hz |
| Approval/Conformity | CE |
| WEEE | |
| UKCA | |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Repeat accuracy | ± 0.15 %FS |
| Operating voltage Ub | 20...30 VDC |
Technical Data Sheet:
1 in stock
